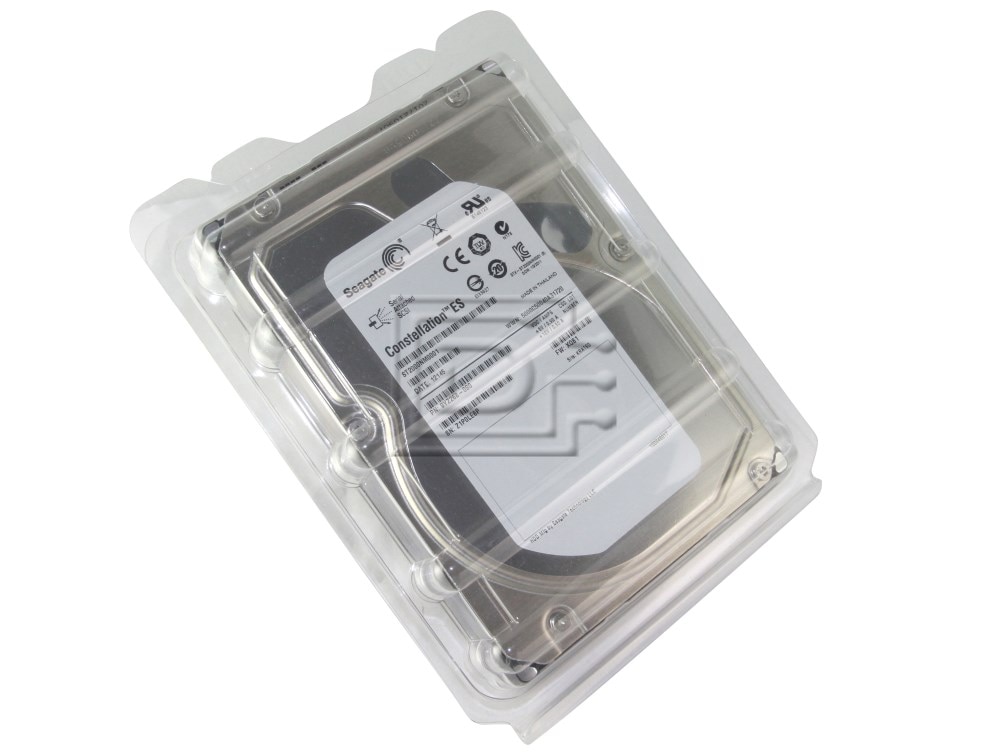

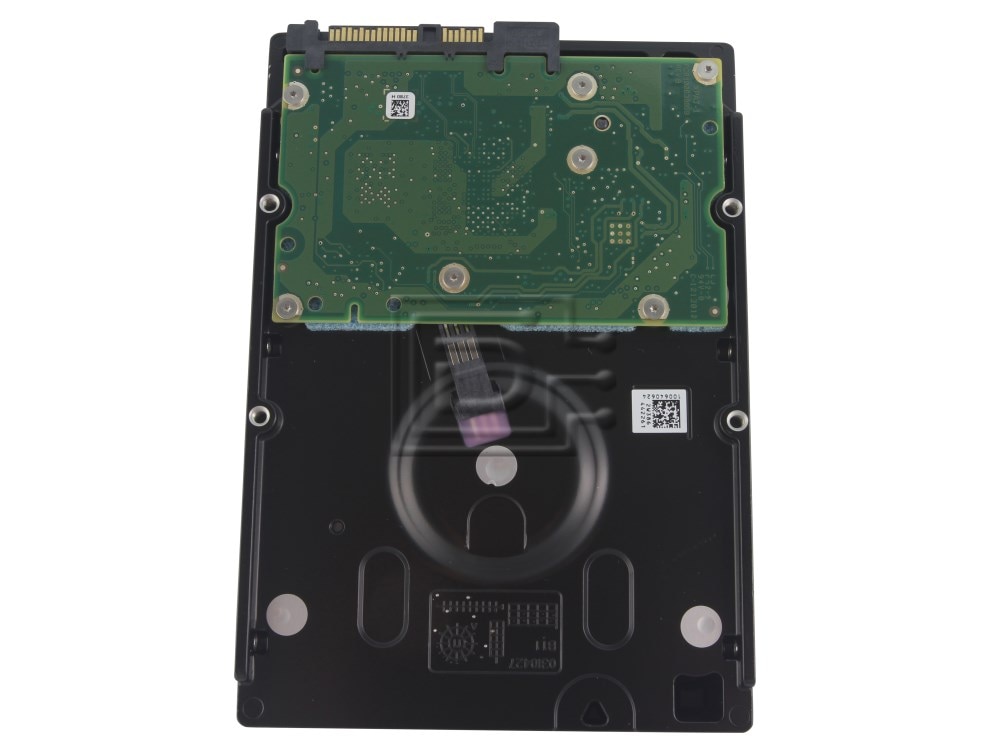

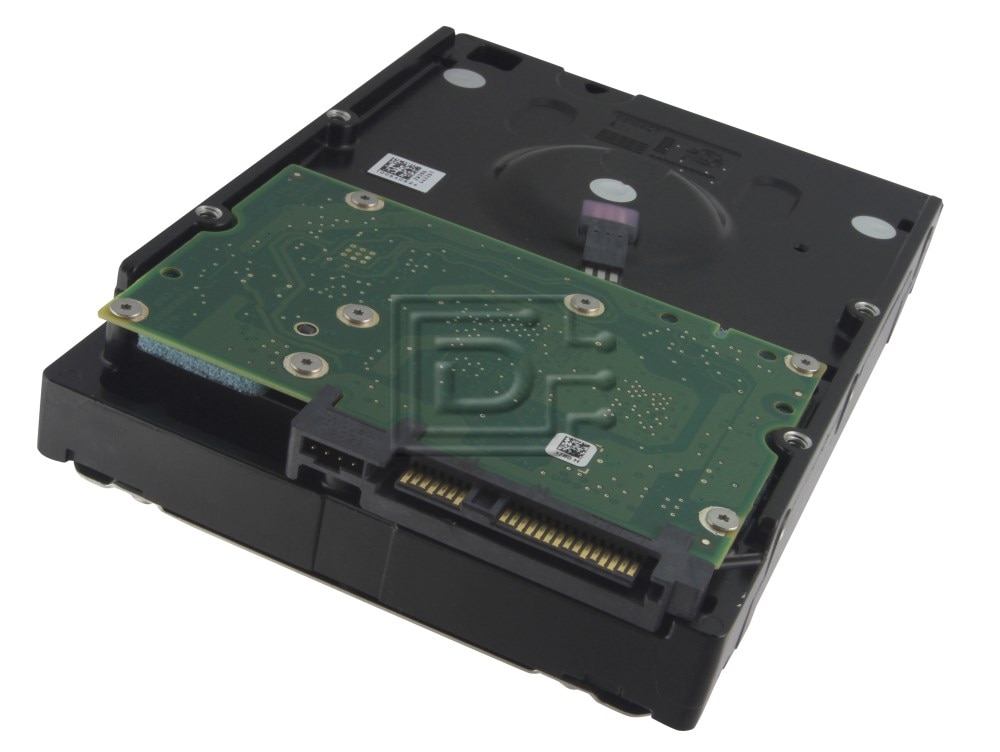

Seagate Constellation ES ST2000NM0001 Serial SCSI / SAS Hard Disk Drives
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- In Stock:36Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 2TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description
Seagate Constellation ES ST2000NM0001 2TB / 2000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Factory Recertified
Seagate Constellation ES ST2000NM0001 2TB / 2000GB 7.2K 6.0Gbps Serial SCSI / SAS HDD / Hard Disk Drive - Refurbished
Alt MPN: 9YZ268-002
Overview
Constellation ES drives offer the world’s highest capacity at 2TB while providing enterprise robustness for Tier 2/nearline environments. They are differentiated from 3.5-inch desktop drives by offering enterprise-class reliability and superior data integrity with a UER of 1E10-15. Enterprise-class rotational vibration tolerance provides robust protection from chassis and fan vibrations (RV 12.5 rad/sec 20 to 1500Hz). The drives are offered with either a 3-Gb/s SATA interface or a 6-Gb/s SAS 2.0 interface for superior data protection at industry-leading speeds, along with optional power saving modes with PowerChoice™.
Features and Benefits
- Fourth-generation, enterprise, nearline drive designed for 24×7 operation
- Up to 2TB capacity for data-hungry enterprise business applications
- Best-in-class enhanced rotational vibration tolerance ensures unrivalled performance in high-density applications for continuous data access
- Enhanced efficiencies with PowerChoice™ host-selectable power options for unprecedented savings (up to 35 percent) during slow or idle periods
- Proven reliability with multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor technology and ramp load technology
- Provides business sustainability with Seagate Unified Storage architecture
- 6Gb/s SAS performance with error detection and correction (IOEDC/IOECC) capabilities for the ultimate in data integrity
Best Fit Applications
- High-capacity data center storage
- Storage area networks (SAN), network attached storage (NAS) and direct attached storage (DAS)
- Enterprise backup and restore–D2D, virtual tape
- Centralized surveillance
- Cloud storage
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Specifications
Drive specification | ST2000NM0001 |
Formatted Gbytes (512 bytes/sector) | 2000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64 |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 8.5 / 9.5 |
Track-to-track seek (read / write) ms | 0.8 / 1.0 |
Dimensions (HxLxW) mm | 26.1 / 146.99 / 101.6 |
Weight | 0.71 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 70G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 12.2w / 8.0w |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 9YZ268-002
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Factory Refurbished
Warranty
1 Year DiscTech Warranty
