Toshiba Part #/MPN: PX05SMB160Y
DiscTech Item #: TOS-PX05SMB160Y-BN-OE-DEQ
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1.6TB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 1900/850
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610, Dell Compellent SCv2080 SC280 SC180, Dell Compellent SCv2000 SCv2020 SC200 SC120 SC100

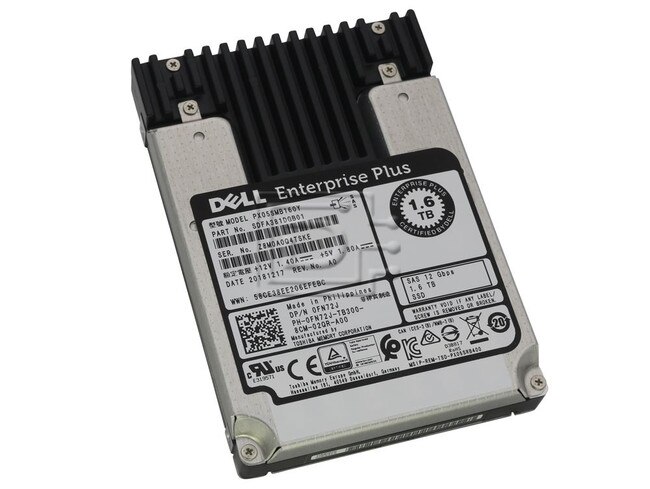

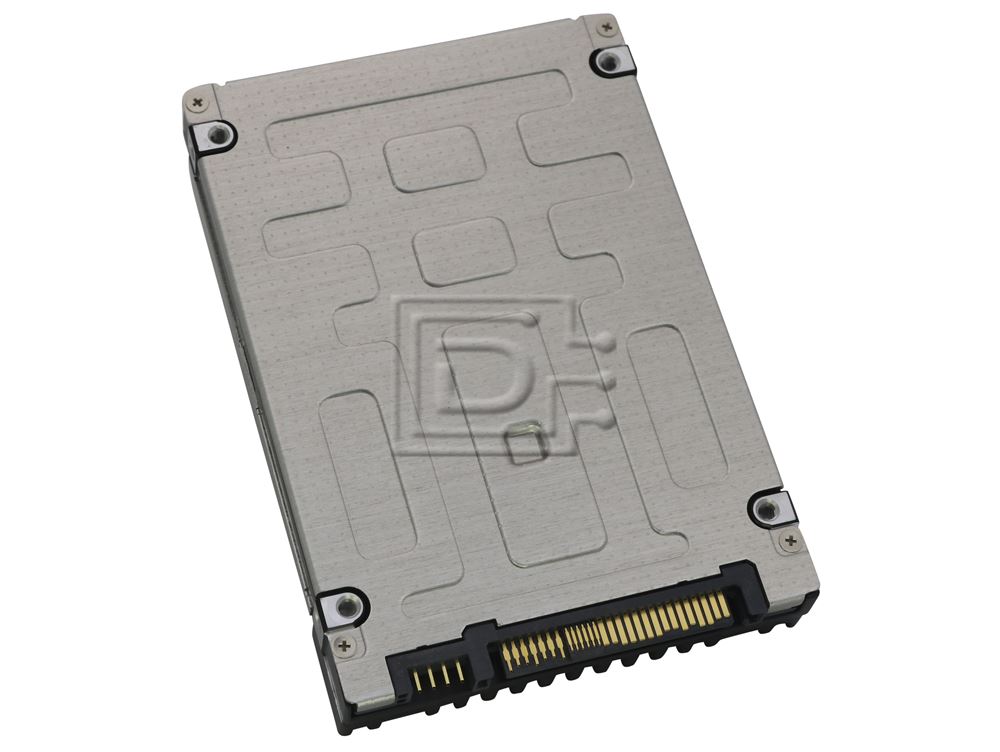

Dell Equallogic FN72J Toshiba PX05SMB160Y SDFA381DUB01 1.6TB 2.5in SFF 12Gbps SAS WI Solid State Drive - Brand New OEM
Dell Equallogic / Toshiba PX05SMB160Y SDFA381DUB01 1.6TB 2.5in SFF 12Gbps SAS Write Intensive Solid State Drive
DP/N: FN72J
Enterprise 10 DWPD Write Intensive SSD
The PX05SMB Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. These Series is optimized for web server, SQL server and read- intensive storage applications, requiring a balance of reliability, capacity and endurance. With 270k IOPS random read performance, these SSD models deliver sustained, low latency performance to maximize performance.
Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
The Enterprise Mixed Use PX05SMB supports 10 DWPD (Drive Writes Per Day) and is designed to deliver high-levels of performance, quality and reliability for read-intensive and mixed-use applications such as media streaming, data warehousing and web servers.
Key Features
- Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270K IOPS random read (4K) performance
- 2.5-type Form-Factor, 15mm Z-Height
- 10 DWPD with 100% Random Write Workload
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
- Sanitize Instant Erase (SIE)* Option
Key Applications
- Media Streaming
- Data Warehousing
- Web Servers
Alt Pt#: PX05SMB160Y SDFA381DUB01
* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.
* SED drive is conformed to TCG enterprise SSC.
* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.
Compatibility:
This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives.
| Toshiba Enterprise Mixed Use SSD | |
|---|---|
| Model Number | PX05SMB160Y / WI |
| Capacity | 1.6tb |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Sustained 64KiB Sequential Read | 1,900 MiB/s |
| Sustained 64KiB Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read | 270,000 IOPS |
| Sustained 4KiB Random Write | 60,000 IOPS |
| MTTF | 2,000,000 hours |
| DWPD | 10 |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 150 g Max. |
| Temperature ( Operating ) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDFA381DUB01 SDFA381DGB01 0FN72J FN72J
