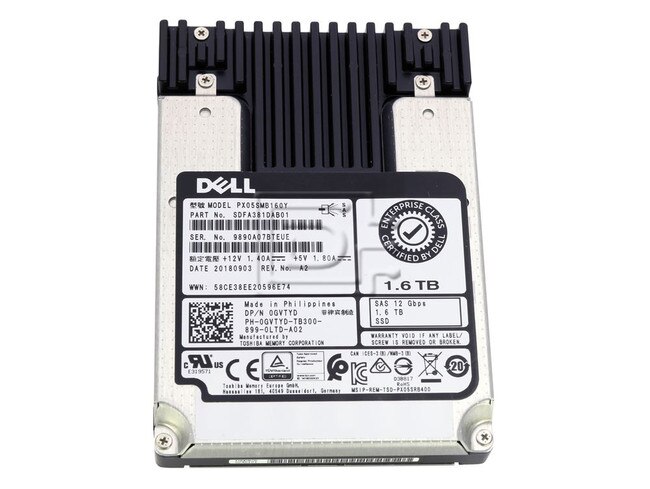

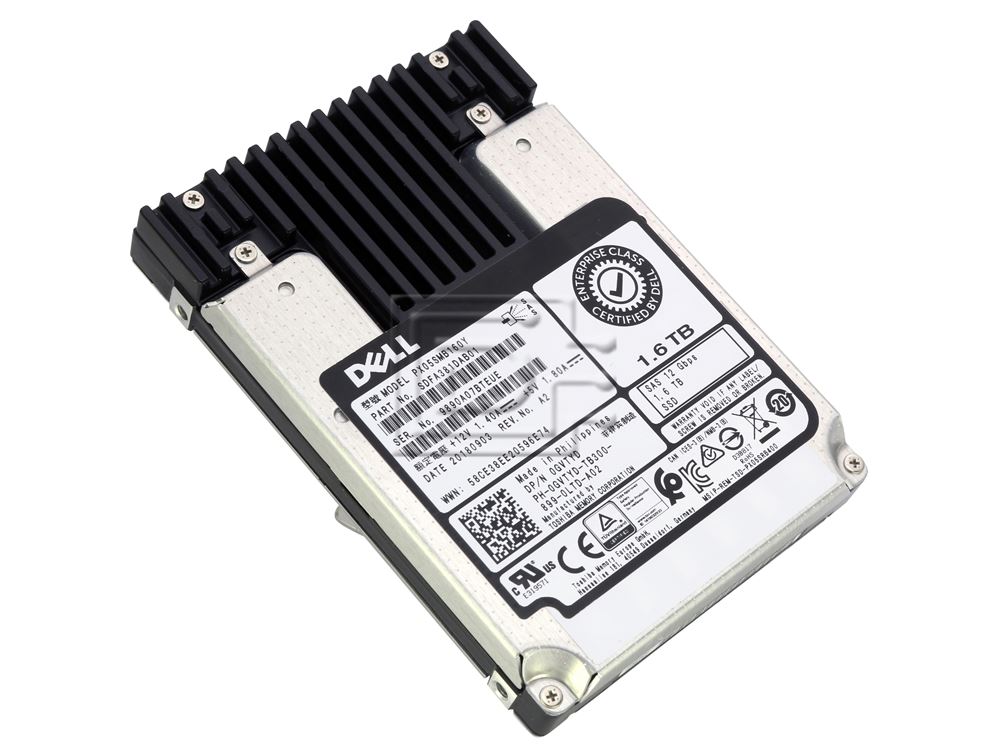

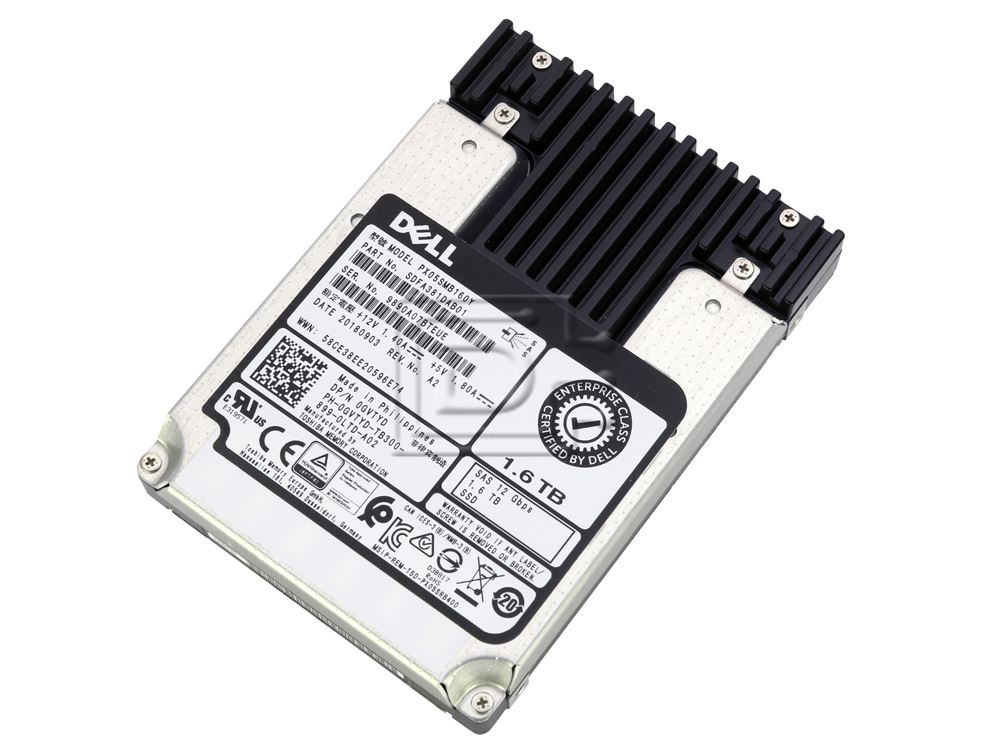

Dell GVTYD / Toshiba PX05SMB160Y 1.6TB 2.5" 12Gbps SAS MLC Write Intensive Solid State Drive

Toshiba Part #/MPN: PX05SMB160Y

DiscTech Item #: TOS-PX05SMB160Y-BN-OE-DEL

$1,949.00

Brand New
Warranty:1 Year DiscTech
Low Stock:Call for ETA

Back

$1,949.00

Enterprise Grade

Capacity: 1.6TB

Speed: Solid State

Interface Types: SAS

Form Factor: 2.5" SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 1900/850

Electrical Interface: SAS-3 12Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Write Intensive / WI

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell GVTYD / Toshiba PX05SMB160Y 1.6TB 2.5" 12Gbps SAS MLC Write Intensive Solid State Drive - Brand New OEM

DP/N: GVTYD / 0GVTYD

Alt Pt# SDFA381DAB01

Enterprise 10 DWPD Write Intensive SSD

The PX05SMB Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. These Series is optimized for web server, SQL server and read- intensive storage applications, requiring a balance of reliability, capacity and endurance. With 270k IOPS random read performance, these SSD models deliver sustained, low latency performance to maximize performance.

Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Mixed Use PX05SMB supports 10 DWPD (Drive Writes Per Day) and is designed to deliver high-levels of performance, quality and reliability for read-intensive and mixed-use applications such as media streaming, data warehousing and web servers.

Key Features

Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
270K IOPS random read (4K) performance
2.5-type Form-Factor, 15mm Z-Height
10 DWPD with 100% Random Write Workload
Power-Loss-Protection and End-to-End Data Protection including T10 DIF
Pin-3 Power Disable Support
Sanitize Instant Erase (SIE)* Option

Key Applications

Media Streaming
Data Warehousing
Web Servers

* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.

* SED drive is conformed to TCG enterprise SSC.

* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.

Compatibility:

This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives.

Toshiba Enterprise Mixed Use SSD
Model Number	PX05SMB160Y / WI
Capacity	1.6tb
Interface	SAS-3.0
Interface Speed	12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory Type	MLC
Sustained 64KiB Sequential Read	1,900 MiB/s
Sustained 64KiB Sequential Write	850 MiB/s
Sustained 4KiB Random Read	270,000 IOPS
Sustained 4KiB Random Write	60,000 IOPS
MTTF	2,000,000 hours
DWPD	10
Supply Voltage	5 V ±7 % , 12 V ±7 %
Power Consumption (Ready)	3.2 W Typ.
Height	15.0 mm +0 , -0.5 mm
Width	69.85 ±0.25 mm
Length	100.45 mm Max.
Weight	150 g Max.
Temperature ( Operating )	0 to 55 °C
Relative Humidity ( Operating )	5 to 95 % R.H.
Vibration ( Operating )	21.27 m/s { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )	9,800 m/s { 1,000 G } ( 0.5 ms duration )
