Seagate Part #/MPN: ST8000NM010A
DiscTech Item #: SGT-ST8000NM010A-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 8TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: Up to 249
Average Seek Time: 4.16
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 256MB

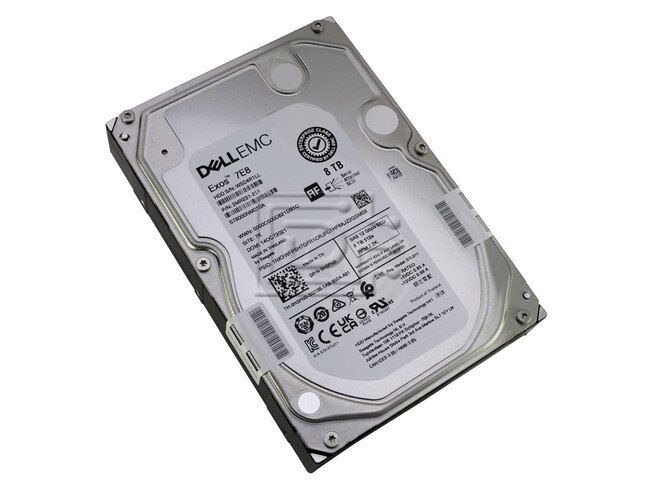

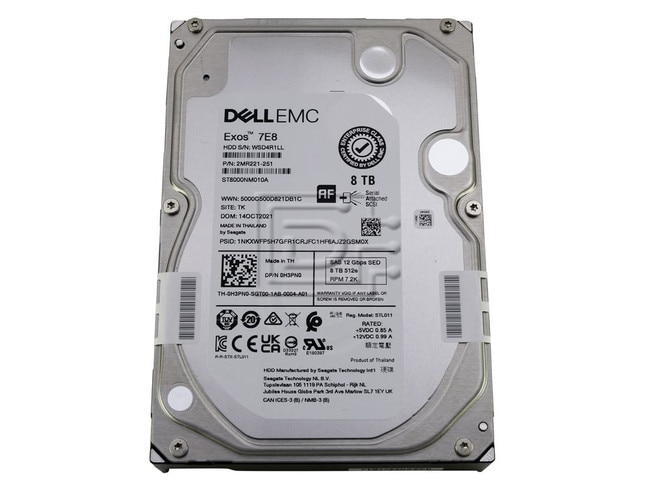

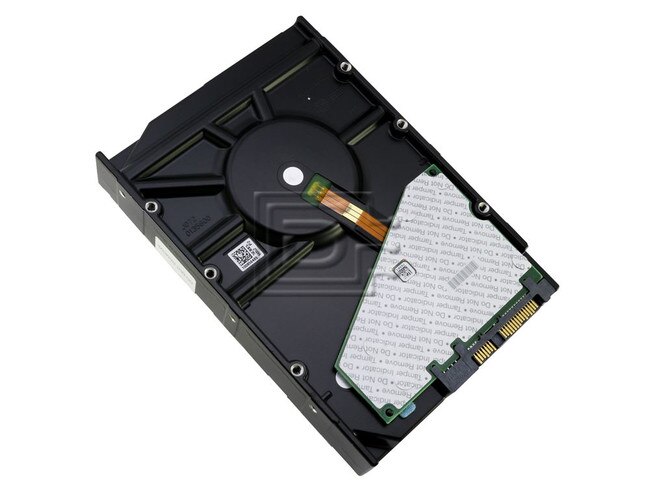

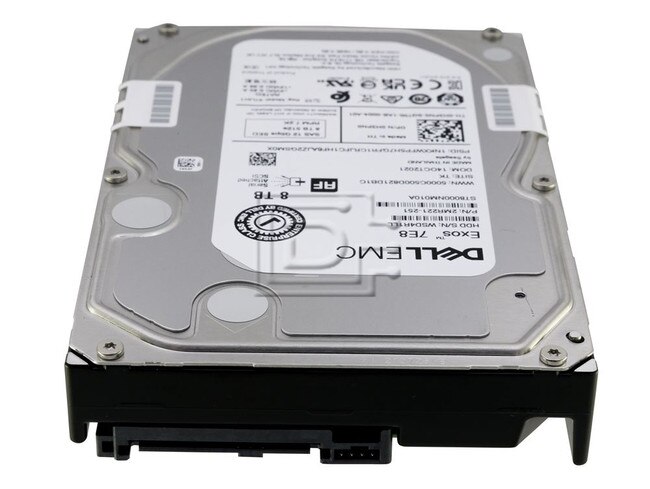

Dell H3PN0 / Seagate ST8000NM010A 8TB 3.5" 12Gbps 7.2K RPM Enterprise SAS 512E SED FIPS 140-2 HDD - Brand New OEM
Dell H3PN0 / Seagate ST8000NM010A 8TB 3.5" 12Gbps 7.2K RPM Enterprise SAS 512E SED FIPS 140-2 HDD - Brand New OEM
Enterprise Drive for Bulk Data Applications
Exos 7E8 hard drives support up to 8 TB per drive, 1 offering bulk data storage for data center infrastructures requiring a highly reliable enterprise hard drive. Exos 7E8 provides costeffective, reliable access to unstructured data. Built on field-proven 10th-generation conventional magnetic recording (CMR) technology, the Exos 7E8 drive helps to catalyse the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security, and low TCO for demanding 24×7 operations.
Robust Bulk Data Storage for a 24×7 World
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550 TB per year — 10× that of desktop hard drives. With state-of-the-art cache, on-the-fly errorcorrection algorithms, and rotational vibration design, the Exos 7E8 helps ensure consistent performance in replicated and RAID multi-drive systems.
High Performance for Mainstream Data Centre Applications
Meet your storage workload requirements in the most efficient and cost-effective data center footprint on the market today. The Exos 7E8 delivers easy integration into bulk storage systems with 12 Gb/s SAS and SATA 6 Gb/s interface options. With user-definable innovative technology advancements like PowerChoice™ and Seagate RAID Rebuild®, you can tailor your nearline storage requirements for even greater improvements in lowering your TCO.
Enhanced Reliability, Data Protection, and Security
Advanced security features help protect data where it lives — on the drive. Exos 7E8 prevents unauthorised drive access and safeguards stored data with security features that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive, and government-grade FIPS/Common Criteria tamper-resistant hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Dell Part Number: H3PN0 / 0H3PN0
Manufacturer Part # 2MR221-251
Compatibility:
This drive is compatible with any server that accepts Dell 3.5in x 1.0in (LFF) Large Capacity 8TB SAS drives.
| Product Specifications | |
|---|---|
| Model Number (512 Emulation) | ST8000NM010A |
| Interface Options | SAS 12Gb/s |
| Capacity | 8TB / 8000GB |
| Encryption | SED FIPS 140-2 |
| Features | |
| Protection Information (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| Power Balance Technology | Yes |
| Cache, Multisegmented (MB) | 256 |
| Advanced Write Caching (2M Internal NOR Flash) | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.0M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 512, 520, 528 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Random Read/Write -16QD WCE (IOPS) | 164/342 |
| Max. Sustained Transfer Rate OD (MB/s) | up to 249 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 7.97 |
| Typical Operating, Random Read (W) | 13.18W |
| Power Supply Requirements | +12V and +5V |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5.0 |
| Shock, Operating, 2ms (Read/Write)(Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 300 |
| Physical | |
| Height (in/mm, max) | 1.028/26.1 |
| Width (in/mm, max) | 4.010/101.85 |
| Depth (in/mm, max) | 5.878/147 |
| Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: H3PN0 0H3PN0 2MR221-251
