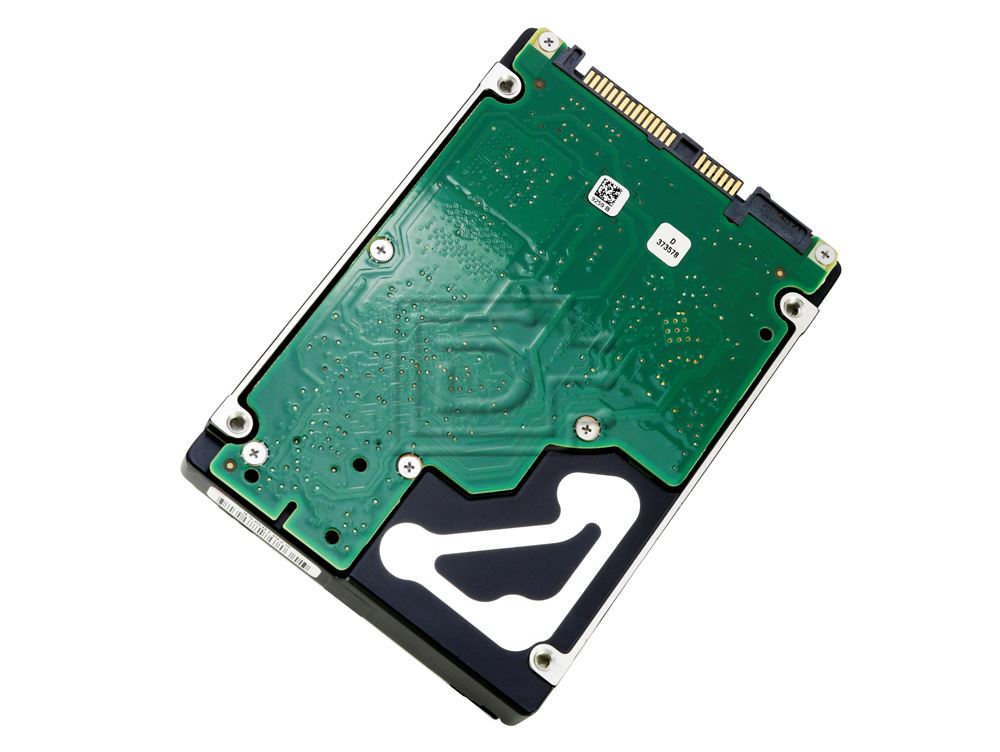

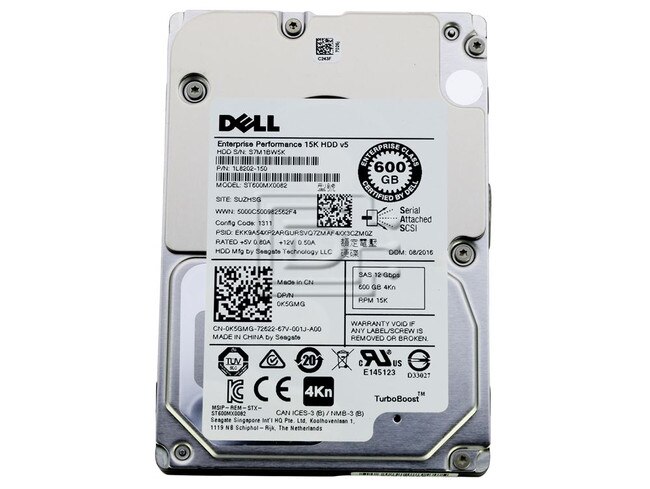

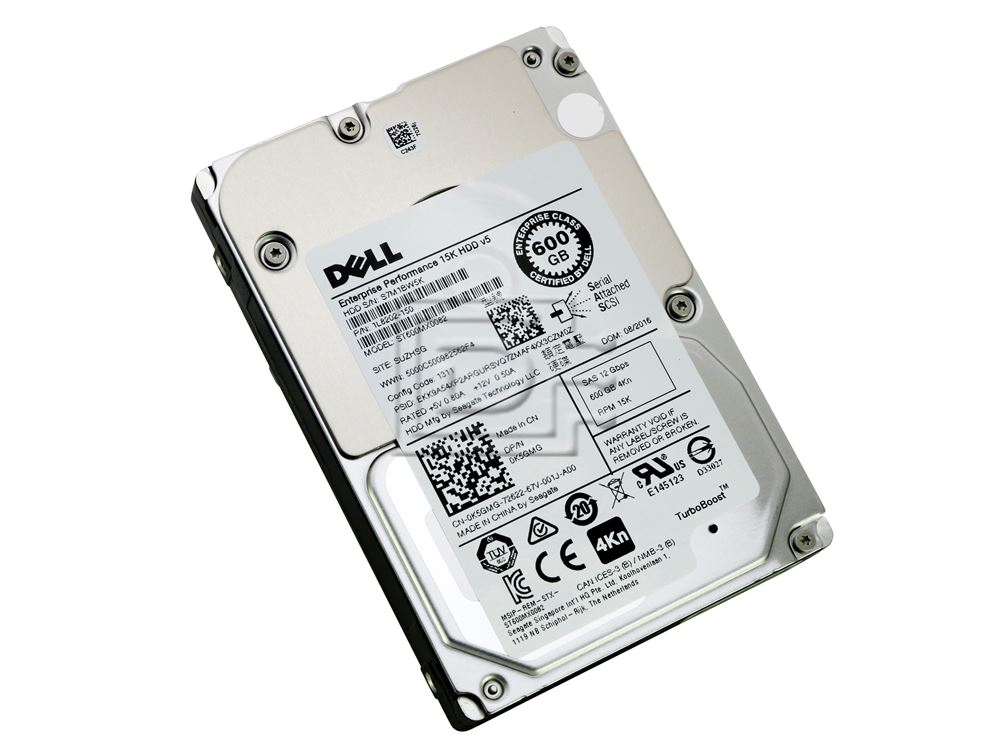

Dell K5GMG / Seagate ST600MX0082 600GB 2.5" 12Gbps 15K 4Kn Enterprise SAS HDD

Seagate Part #/MPN: ST600MX0082

DiscTech Item #: SGT-ST600MX0082-BN-OE-DEL


$170.00
$170.00

Enterprise Grade

Capacity: 600GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 4Kn

Sustained Throughput: 250 to 180

Average Seek Time: 2.0

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

SSD Type: MLC

Hybrid SSD Cache: 32GB/MLC NAND

SSD Endurance DWPD: Enterprise Read Intensive

Dell K5GMG / Seagate ST600MX0082 600GB 2.5" 12Gbps 15K 4Kn Enterprise SAS Hybrid HDD - Brand New

Dell K5GMG / Seagate ST600MX0082 600GB 2.5" 12.0Gb/s 15K 4Kn Enterprise SAS / Serial Attached SCSI Hybrid Hard Disk Drive - Brand New


Enterprise Performance 15K HDD

Featuring Enhanced Caching With Seagate® TurboBoost™ Technology

  • Accelerates I/O operations and optimizes response times (up to 20× over base drive) completing more transactions faster, even during peak demand
  • Uses traditional NAND and advanced algorithms to promote hot data and achieve performance improvement (up to 3× over base drive) in real-life workloads
  • Delivers more predictable performance while protecting data from corruption due to unexpected power loss



Highest-Performing, Up to 600GB, 12Gb/s SAS, Small Form Factor 15K Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation
  • Enables faster transaction processing, which can result in improved customer satisfaction
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides 23% to 30% improvement in SDR performance over previous generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.
  • Seagate Secure™ drive options (AES-256) help cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
  • Seagate Secure FIPS drive option



Best-Fit Applications

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives




Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

4K Native Specifications
TurboBoost Standard ModelST600MX0082
Capacity600GB
Interface12Gb/s SAS
Performance
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s250 to 180
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)128
TurboBoost Enhanced Cache
NAND Flash TypeeMLC
NAND Flash Size32GB
Mixed-Workload Performance (IOPS, compared to standard model)up to 3x
Configuration/Organization
Disk/Heads3/6
Nonrecoverable Read Errors per Bits Read, Max1 per 10E16
Annualized Failure Rate (AFR)0.44%
Power Management
Typical Op (A) +5V/+12V0.44/0.54
Average Idle Power (W)5.3
Average Operating Power (W)8.7
Environmental
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonop (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
Physical
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.76/70.10
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.507/0.230

Click here to view the manufacturer's item description/brochure

Alternate MPNs: K5GMG 0K5GMG

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
