Seagate Part #/MPN: ST8000NM015A
DiscTech Item #: SGT-ST8000NM015A-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 8TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 4Kn
Sustained Throughput: Up to 249
Average Seek Time: 4.16
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 256MB

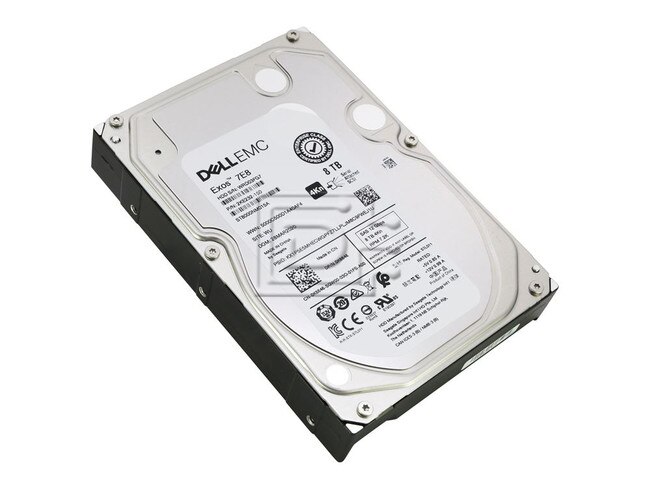

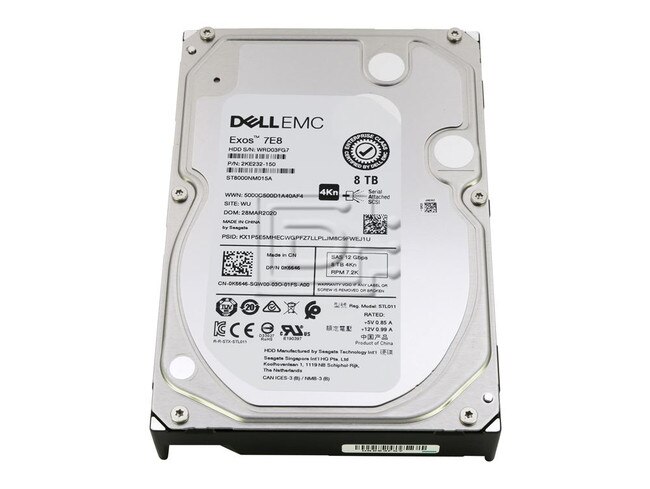

Dell K6646 / Seagate ST8000NM015A 8TB 3.5" 12Gbps 7.2K Enterprise SAS 4Kn HDD - Brand New
Dell K6646 / Seagate Exos 7E8 ST8000NM015A 8TB LFF / Large Form Factor 12.0 Gb/s 7,200 RPM Enterprise SAS / Serial Attached SCSI 4Kn ISE / Instant Secure Erase HDD / Hard Disk Drive - Brand New
Enterprise Drive for Bulk Data Applications
Exos 7E8 hard drives support up to 8 TB per drive, 1 offering bulk data storage for data center infrastructures requiring a highly reliable enterprise hard drive. Exos 7E8 provides cost-effective, reliable access to unstructured data. Built on field-proven 10th-generation conventional magnetic recording (CMR) technology, the Exos 7E8 drive helps to catalyze the data sphere, enabling data center architects and IT professionals to deliver trusted performance, rock-solid reliability, ironclad security, and low TCO for demanding 24×7 operations.
Robust Bulk Data Storage for a 24×7 World
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550 TB per year — 10× that of desktop hard drives. With state-of-the-art cache, on-the-fly error correction algorithms, and rotational vibration design, the Exos 7E8 helps ensure consistent performance in replicated and RAID multi-drive systems.
High Performance for Mainstream Data Centre Applications
Meet your storage workload requirements in the most efficient and cost-effective data center footprint on the market today. The Exos 7E8 delivers easy integration into bulk storage systems with 12 Gb/s SAS and SATA 6 Gb/s interface options. With user-definable innovative technology advancements like PowerChoice™ and Seagate RAID Rebuild®, you can tailor your nearline storage requirements for even greater improvements in lowering your TCO.
Enhanced Reliability, Data Protection, and Security
Advanced security features help protect data where it lives — on the drive. Exos 7E8 prevents unauthorized drive access and safeguards stored data with security features that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive, and government-grade FIPS/Common Criteria tamper-resistant hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Dell P/N: K6646 0K6646
Manufacturer Part # 2KE232-150
Compatibility:
This drive is compatible with any server that accepts Dell 3.5in x 1.0in (LFF) Large Capacity 8TB SAS drives.
| Product Specifications | |
|---|---|
| Model Number (4Kn) | ST8000NM015A |
| Interface Options | SAS 12Gb/s |
| Capacity | 8TB / 8000GB |
| Encryption? | ISE |
| Features | |
| Protection Information (T10 DIF) | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| Power Balance Technology | Yes |
| Cache, Multisegmented (MB) | 256 |
| Advanced Write Caching (2M Internal NOR Flash) | Yes |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 2.0M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 512, 520, 528 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Random Read/Write -16QD WCE (IOPS) | 164/342 |
| Max. Sustained Transfer Rate OD (MB/s) | up to 249 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Dual |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Idle Power, Average (W) | 7.97 |
| Typical Operating, Random Read (W) | 13.18W |
| Power Supply Requirements | +12V and +5V |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5.0 |
| Shock, Operating, 2ms (Read/Write)(Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 300 |
| Physical | |
| Height (in/mm, max) | 1.028/26.1 |
| Width (in/mm, max) | 4.010/101.85 |
| Depth (in/mm, max) | 5.878/147 |
| Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: K6646 0K6646 2KE232-150
Weight: 1.8 lb
