Dell PERC H700 342-1622 1GB SAS & SATA RAID Controller

Dell Part #/MPN: 342-1622

DiscTech Item #: DEL-342-1622-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 1GB

Bays/Ports/Slots: 8

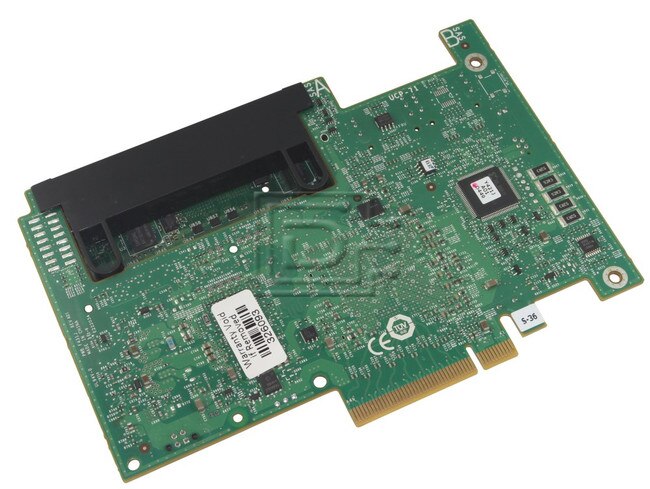

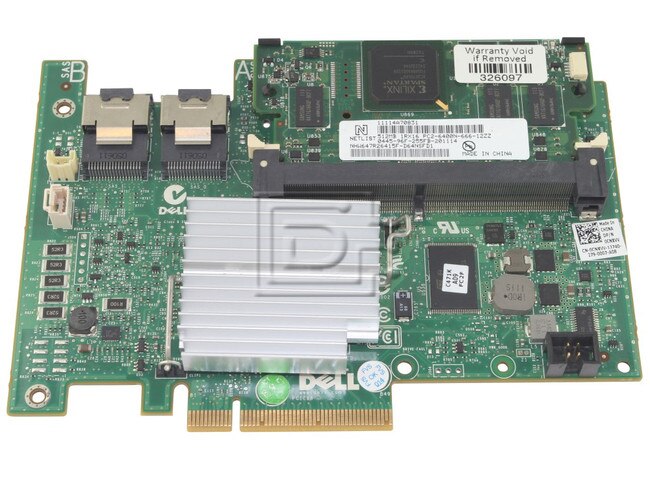

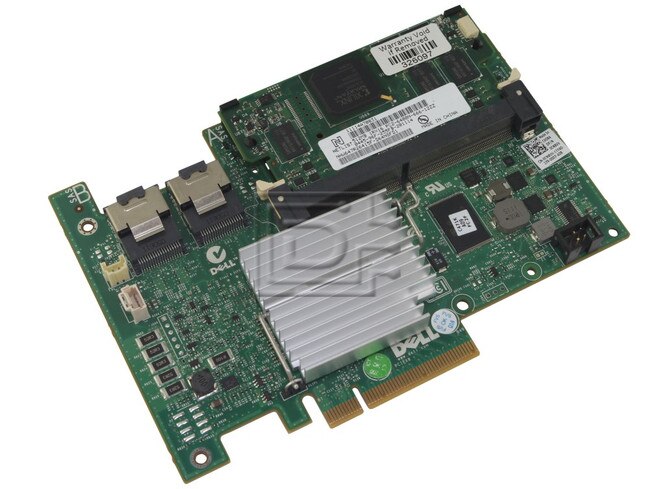

Dell Perc H700 342-1622 SAS & SATA Integrated RAID Controller 1GB cache - Brand New

Dell PERC (PowerEdgeTM  RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management—providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.

PERC H700:

  • Increased IOPS performance with Cut-Through IO & SSDs
  • Adds support for Self Encrypting Drives (SED)
  • 2 x Internal 8087 SAS connectors
  • Adds 1GB Cache to to PERC H700
  • Dell 342-1622 PERC H700 1GB Non-Volatile cache
  • Serial Attached SCSI

Alt DPNs: HCR2Y, 0HCR2Y, 1J8JJ, 01J8JJ, 39H7H, 039H7H,


The H700 is compatible with the following systems (List is not all inclusive)

PowerEdge Servers
  • 1900
  • 1950
  • 2900
  • 2950
  • 2970
  • 6900
  • 6950
  • R300
  • R900
  • T300
  • T605
  • R310
  • T310
  • R410
  • T410
  • R510
  • T610
  • R710
  • T710

Cache / Buffer Size1 GB
Interface TypeSAS
Dell Series 7Perc H700
Device TypeSerial Attached SCSI Raid Controller Card with Battery backup
Port(s) Total (Free) / Connector Type2 x Internal 8087 SAS Connectors
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HCR2Y 0HCR2Y 1J8JJ 01J8JJ 39H7H 039H7H

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
