Dell Perc H700 342-1622 SAS RAID Controller

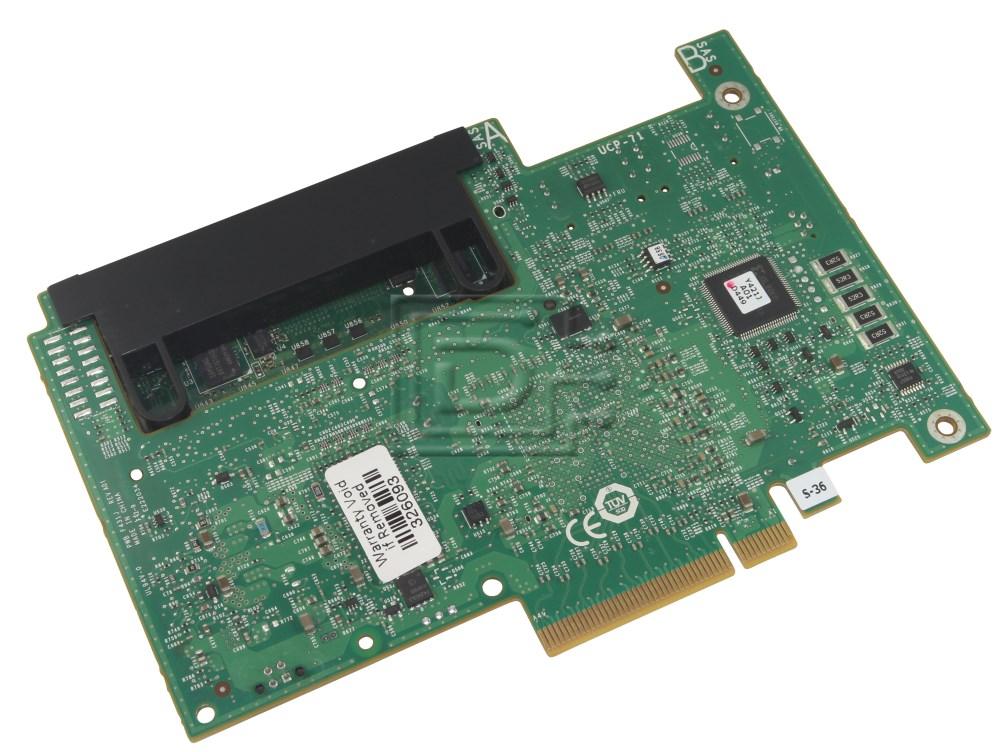

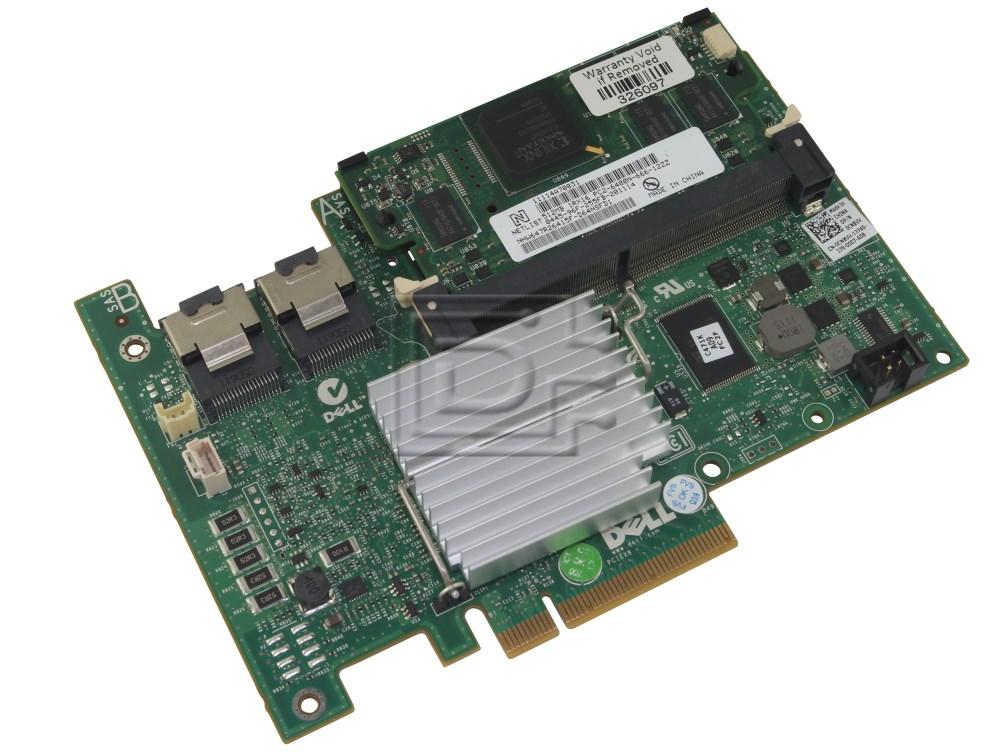

Dell 342-1622 HCR2Y 0HCR2Y 1J8JJ 01J8JJ 39H7H 039H7H SAS RAID Controller Image 1 image
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$299.00

Interface Types:SAS
Electrical Interface:SAS-2 6Gbps
Bays/Ports/Slots:8
RAM:1GB

Description

Dell Perc H700 342-1622 SAS Integrated RAID Controller 1GB cache - New Pull

P> Dell PERC (PowerEdge RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management—providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.

PERC H700:

  • Increased IOPS performance with Cut-Through IO & SSDs
  • Adds support for Self Encrypting Drives (SED)
  • 2 x Internal 8087 SAS connectors
  • Adds 1GB Cache to to PERC H700
  • Dell 342-1622 PERC H700 1GB Non-Volatile cache
  • Serial Attached SCSI

Alt DPNs: HCR2Y, 0HCR2Y, 1J8JJ, 01J8JJ, 39H7H, 039H7H

Compatibility:

The H700 is compatible with the following systems (List is not all inclusive)

PowerEdge Servers
  • 1900
  • 1950
  • 2900
  • 2950
  • 2970
  • 6900
  • 6950
  • R300
  • R900
  • T300
  • T605
  • R310
  • T310
  • R410
  • T410
  • R510
  • T610
  • R710
  • T710

Specifications

SPECIFICATIONS
Cache / Buffer Size1 GB
Interface TypeSAS
Dell Series 7Perc H700
Device TypeSerial Attached SCSI Raid Controller Card with Battery backup
Port(s) Total (Free) / Connector Type2 x Internal 8087 SAS Connectors
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HCR2Y 0HCR2Y 1J8JJ 01J8JJ 39H7H 039H7H

Weight: 2 lb

Warranty: 1 Year DiscTech

Condition

New Pull

Warranty

1 Year DiscTech Warranty
