Dell PowerEdge R720XD 26x 2.5" Bay 2U Rackmount Server

Dell Part #/MPN: PER720XD

DiscTech Item #: DEL-PER720XDSH16-E52660V2-RF-2M


Interface Types: SAS Serial Attached SCSI, SATA, DDR3 DIMM 240pin, USB 2.0, Ethernet RJ45, PCIe, VGA, Serial RS-232 DB9

Form Factor: 2.5inx15mm SFF Server Drive

Bays/Ports/Slots: 26

U Height: 2U

Dell PowerEdge / Power Edge R720XD 26x 2.5" Bay 2U Server - Rackmount - Refurbished

  • 1 x Intel E5-2660v2 2.2GHz CPU 10 Cores
  • 16GB DDR3 ECC Registered Memory / RAM
  • 26x 2.5" HDD BAYS - No HDDs or Caddys (we can configure with any HDD/SSD you require)
  • 1 x 750W PSU

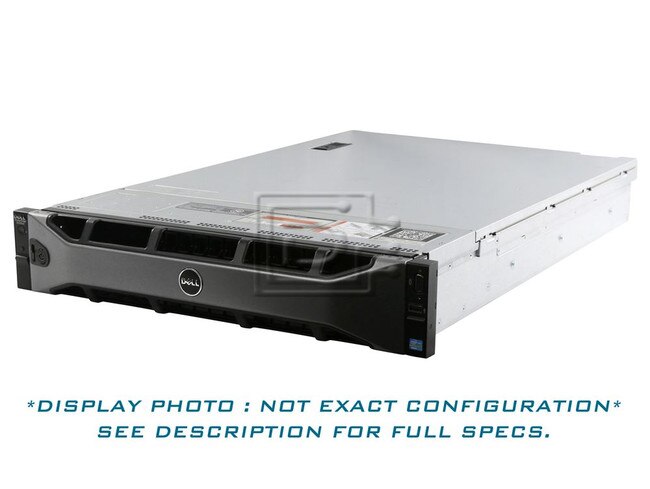

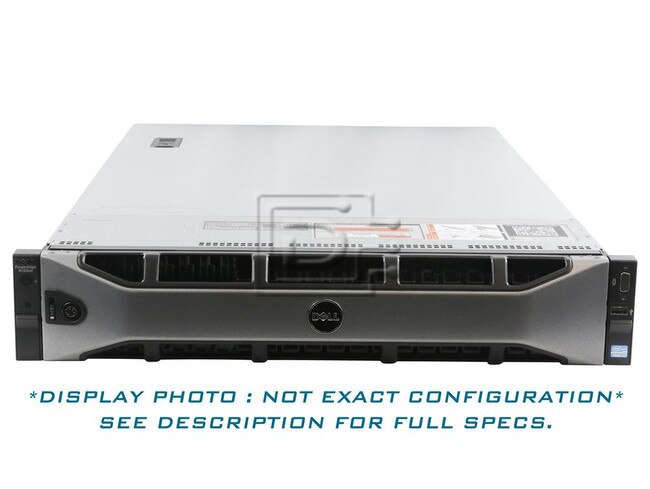

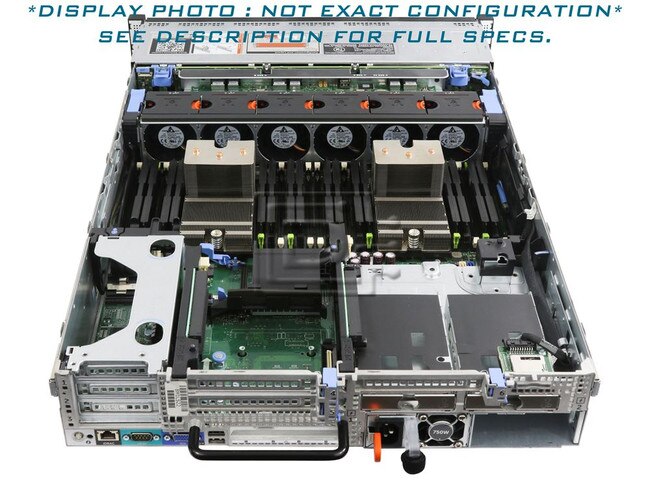

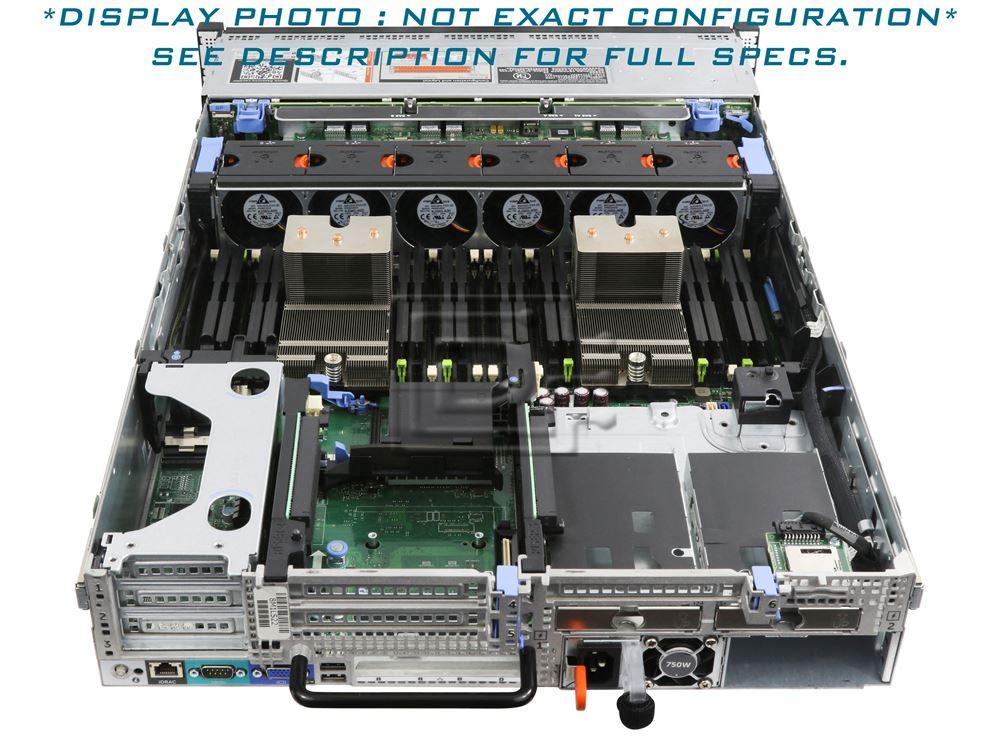

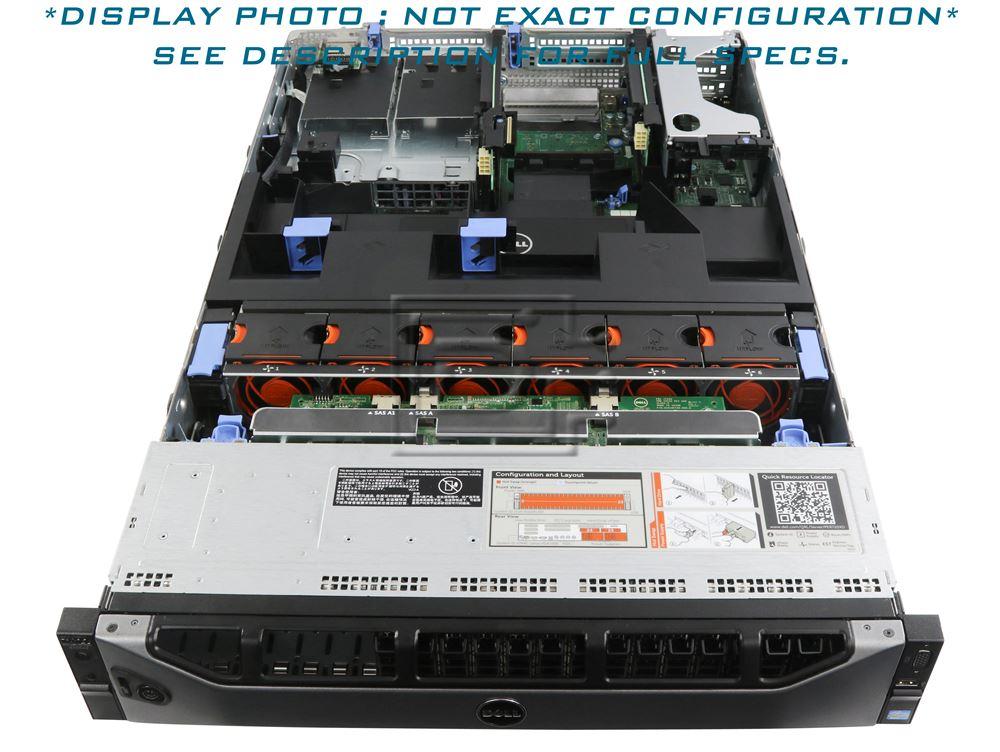

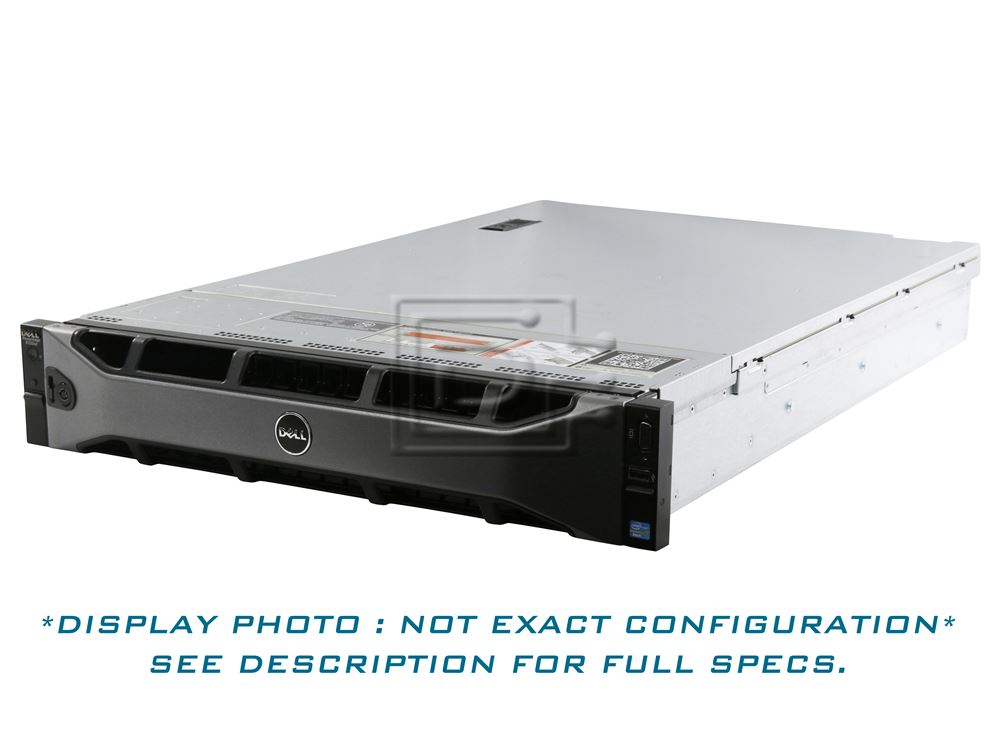

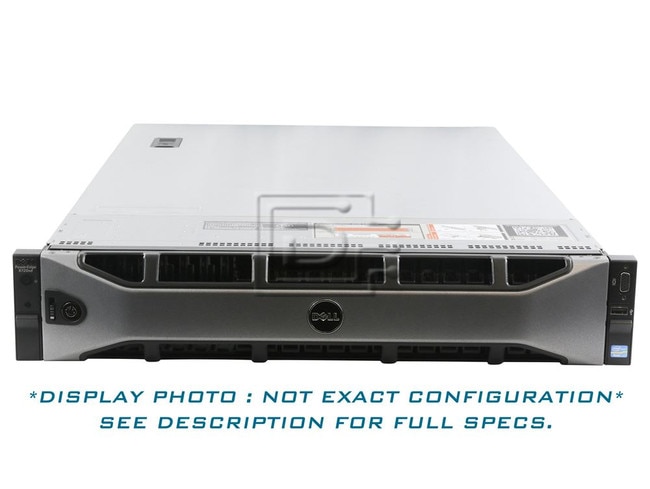

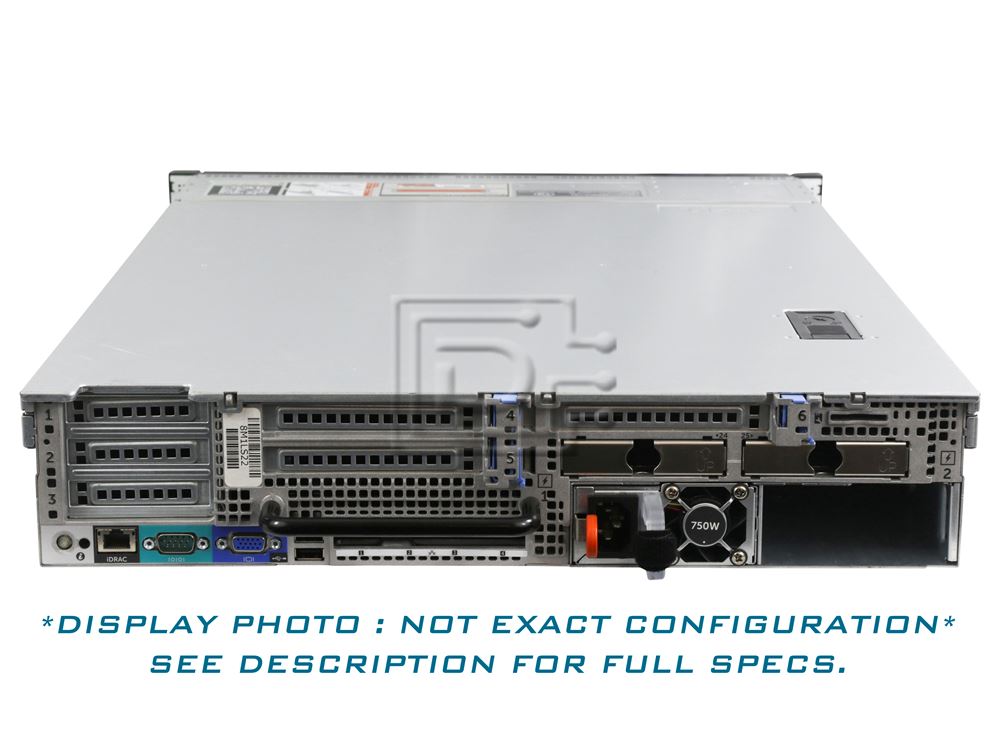

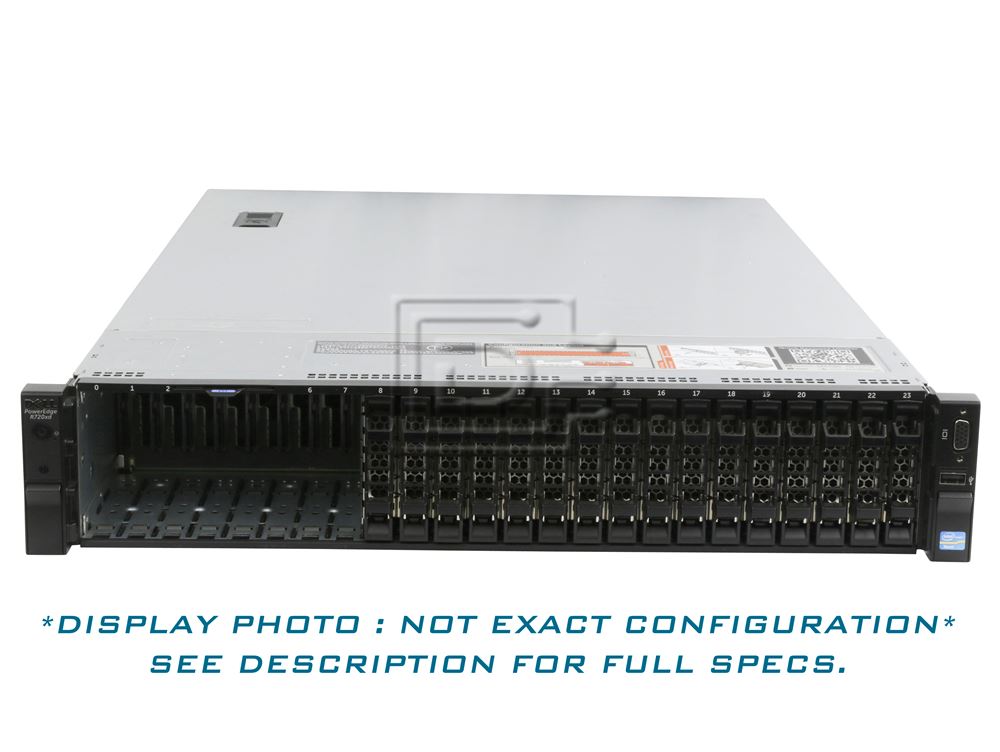

Fully configurable - Optional Dual CPUs, up to 256GB RAM, redundant power supplies etc.  (Photo is for display purposes only with optional 2nd Power Supply and HDD Caddys.)

Outstanding storage capacity in a 2-socket 2U rack server.Scale for massive data growth with the excellent storage capacity, memory density and I/O (input/output) capabilities of the Dell PowerEdge R720xd rack server.
  • 2U rack
  • Intel® Xeon® processor E5-2600 product family
  • 2 Processor sockets
  • 2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s
  • 2.5MB Cache per core; core options: 2, 4, 6, 8
  • Intel C600 Chipset
  • Up to 768GB of memory (24 DIMM Slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
  • 6 PCIe slots: • Two x16 full-length, full-height • One x8 full-length, full-height • Three x8 half-length, half-height
  • Internal controllers: PERC H310 PERC H710 PERC H710P
  • External HBAs (RAID): PERC H810
  • Up to twenty-six 2.5” drives or up to twelve 3.5” drives plus two 2.5” drives
  • Up to 50TB internal storage.
  • Hot-plug hard drive options: 2.5” SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) 3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K)
  • Auto-ranging Titanium efficiency, hot-plug redundant 750W AC power supply; Auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply
  • Supports ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm • ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks. (Rail kit not included)
  • Bezel not included

Dell PowerEdge R720xd Specs:

What you will get:

  • Server: Dell R720XD 26x 2.5" SAS/SATA Bay 2U Server
  • Storage: 26x 2.5" SAS/SATA (24 Front, 2x Flex Bay Rear)
  • CPU: E5-2660v2 2.2GHz CPU 10 Cores (1 CPU)
  • Memory: 16GB (2 x 8GB) RDIMM(PC3-10600R)
  • Hard Drive: None Included (Please contact us for Drives)
  • Caddy/Tray: None Included
  • Controller: H710 Integrated MiniMono RAID Controller
  • LAN: DELL BROADCOM 5720 Quad Port 1Gb Integrated RJ45 Network Adapter
  • Rail Kit: None Included
  • Bezel: None Included
  • Remote Management: iDRAC7 Express
  • Power Supply Unit: 750Watt PSU  (1)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: R720XD

Weight: 50 lb

Warranty: 2 Month DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

2 Month DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
