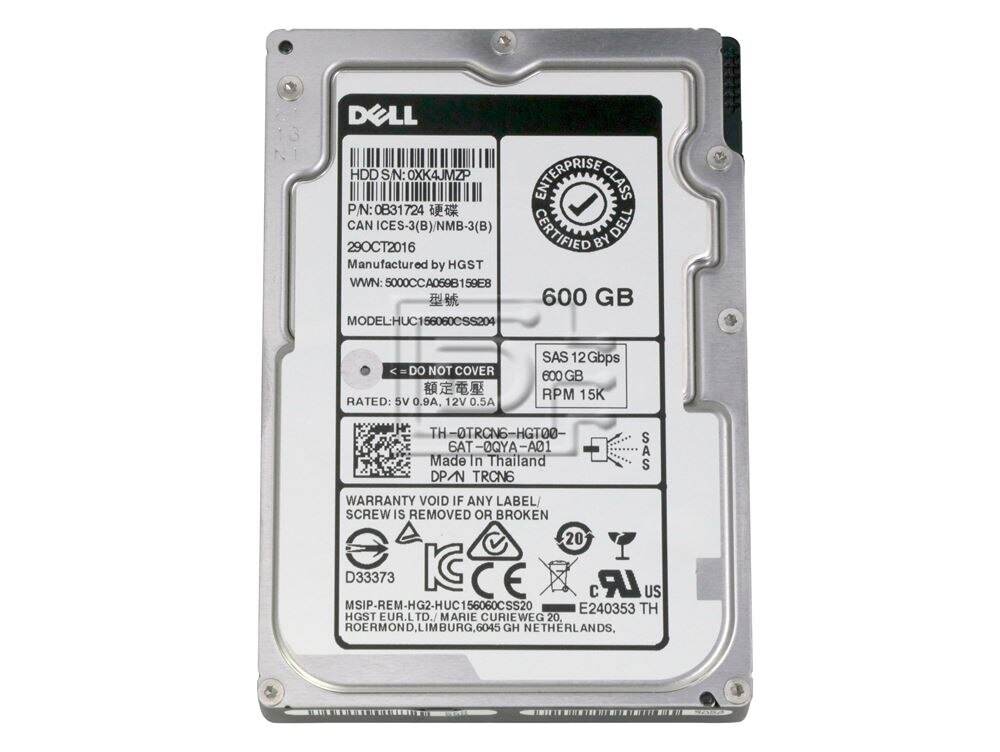

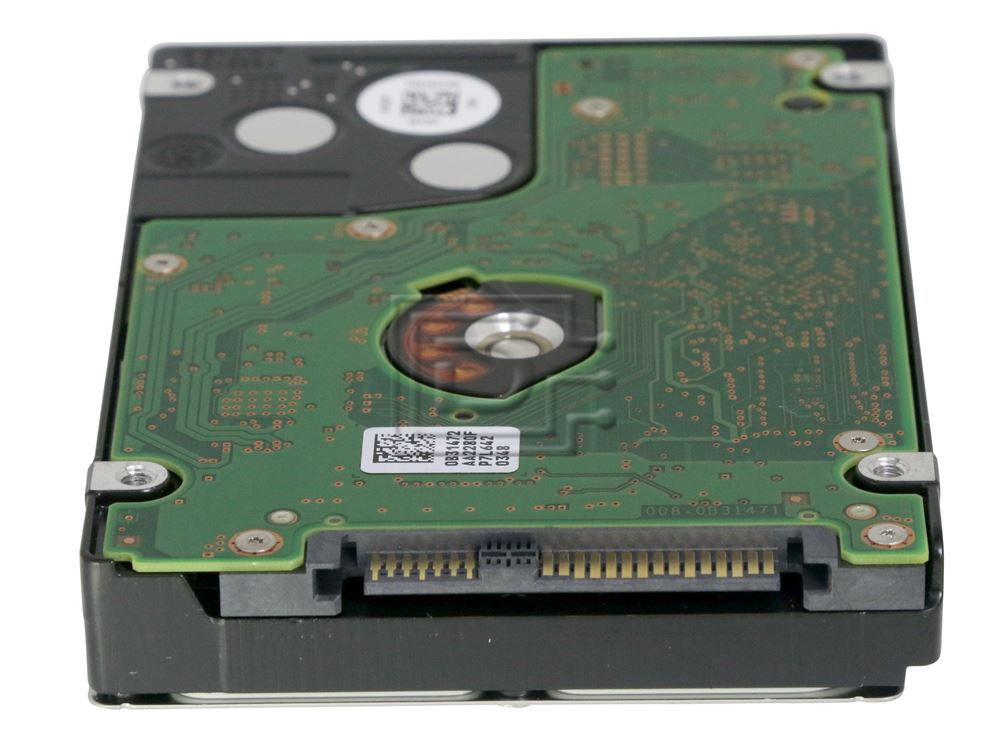

Dell TRCN6 / Hitachi 0B31724 / HUC156060CSS204 600GB 2.5" 12Gbps 15K SAS HDD
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 600GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
Dell TRCN6 / Hitachi 0B31724 / HUC156060CSS204 600GB 2.5" 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD - Refurbished OEM
Dell TRCN6 / Hitachi 0B31724 / HUC156060CSS204 600GB 2.5" 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD
Mission-critical Performance – 15,000 RPM for faster data access
- Best-in-class Power Management – Enables industry-leading power efficiency
- Enterprise-class Protection – Multiple security and data encryption options
- When you need superior performance in a small form factor for mission-critical applications, trust the Ultrastar® C15K600 in your high performance computing (HPC) environment. Spinning at 15K RPM, this drive really performs; it delivers more than 38% faster sequential and 2.5X faster random write performance. We've also included a broad range of security and encryption features to protect your data. To maximize performance and valuable floor space, trust the HGST Ultrastar® C15K600.
Alt MPN: HUC156060CSS204 TRCN6 0TRCN6
Compatibility
This drive is compatible with any server that accepts 2.5in x 15mm (SFF Server Hard Drive) SAS Drive.
Specifications
| Ultrastar C15K600 | ||
|---|---|---|
| Model Number | 0B31724 | |
| Alt Model Number | HUC156060CSS204 | |
| Configuration | ||
| Interface | SAS 12Gb/s | |
| Capacity (GB) | 600GB | |
| Sector size (variable, bytes/sector) | 512-Byte (512n) | |
| Recording zones | 40 | |
| Data heads (physical) | 6 | |
| Data disks | 3 | |
| Max. Areal density (Gbits/sq. in) | 528 | |
| Performance | ||
| Data buffer (MB) | 128 | |
| Rotational speed (RPM) | 15,030 | |
| Latency average (ms) | <2.0 | |
| Interface transfer rate (MB/s, max) | 1200 | |
| Sustained transfer rate (MB/s, typical) | 175 to 250 | |
| Seek time (read, ms, typical) | 2.9/3.1 | |
| Reliability | ||
| Error rate (non-recoverable, bits read) | 10 in 10e17 | |
| MTBF (M hours) | 2.0 | |
| Availability (hrs/day x day/wk) | 24x7 | |
| Acoustics | ||
| Idle (Bels, typical) | 3.2 | |
| Power | ||
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) | |
| Operating (W, typical) | 7.5 | |
| Idle (W) | 5.8 | |
| Idle efficiency (Watt/GB) | 0.0096 | |
| Physical size | ||
| z-height (mm) | 14.8 | |
| Dimensions (width x depth, mm) | 70.1 x 100.45 | |
| Weight (, max) | 219 | |
| Environmental (operating) | ||
| Ambient temperature | 5° to 55° C | |
| Shock (half-sine wave, 2ms, read operation) | 60G | |
| Vibration, random, no errors (G RMS 5 to 500 Hz) | 0.4, all axes | |
| Environmental (non-operating) | ||
| Ambient temperature | -40° to 70° C | |
| Shock (half-sine wave, 2ms) | >300G | |
| Vibration (RMS 5 to 500 Hz) | 1.5, all axes | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUC156060CSS204 TRCN6 0TRCN6
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
