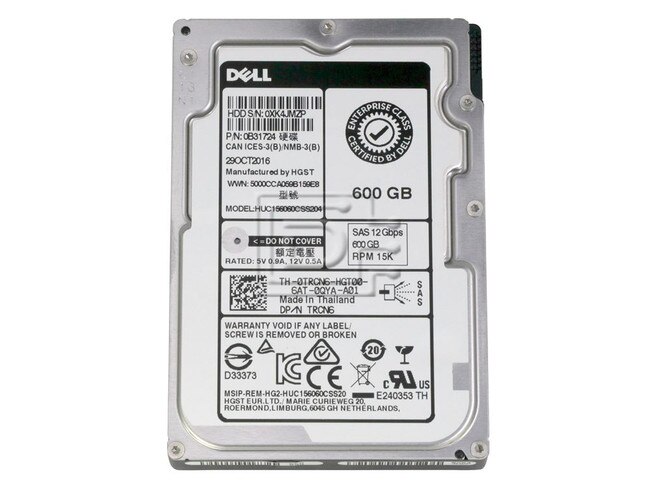

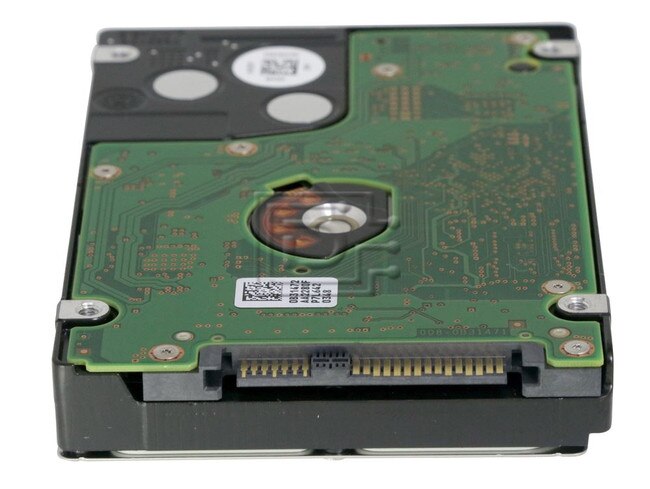

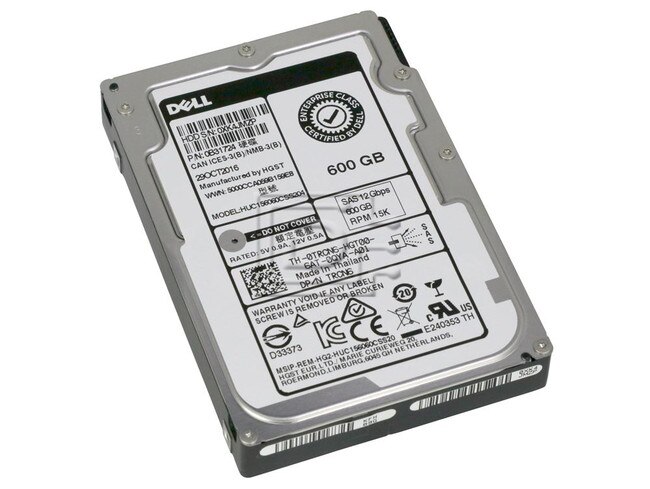

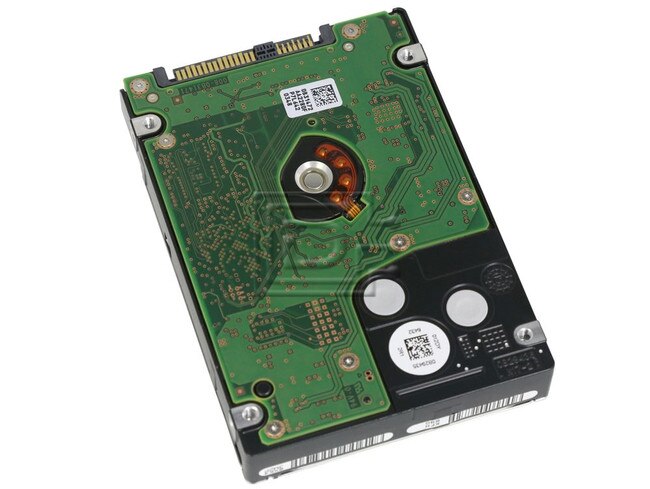

Dell TRCN6 / Hitachi 0B31724 / HUC156060CSS204 600GB 2.5" 12Gbps 15K SAS HDD

Hitachi Part #/MPN: 0B31724

DiscTech Item #: HIT-0B31724-BN-OE-DEL


$162.00
$162.00

Enterprise Grade

Capacity: 600GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 175 to 250

Average Seek Time: 2.9 / 3.1

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell TRCN6 / Hitachi 0B31724 / HUC156060CSS204 600GB 2.5" 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD - Brand New OEM

Dell TRCN6 / Hitachi 0B31724 / HUC156060CSS204 600GB 2.5" 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD

Mission-critical Performance – 15,000 RPM for faster data access

  • Best-in-class Power Management – Enables industry-leading power efficiency
  • Enterprise-class Protection – Multiple security and data encryption options
  • When you need superior performance in a small form factor for mission-critical applications, trust the Ultrastar® C15K600 in your high performance computing (HPC) environment. Spinning at 15K RPM, this drive really performs; it delivers more than 38% faster sequential and 2.5X faster random write performance. We've also included a broad range of security and encryption features to protect your data. To maximize performance and valuable floor space, trust the HGST Ultrastar® C15K600.


Alt MPN: HUC156060CSS204 TRCN6 0TRCN6

Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF Server Hard Drive) SAS Drive.

Ultrastar C15K600
Model Number0B31724
Alt Model NumberHUC156060CSS204
Configuration
InterfaceSAS 12Gb/s
Capacity (GB)600GB
Sector size (variable, bytes/sector)512-Byte (512n)
Recording zones40
Data heads (physical)6
Data disks3
Max. Areal density (Gbits/sq. in)528
Performance
Data buffer (MB)128
Rotational speed (RPM)15,030
Latency average (ms)<2.0
Interface transfer rate (MB/s, max)1200
Sustained transfer rate (MB/s, typical)175 to 250
Seek time (read, ms, typical)2.9/3.1
Reliability
Error rate (non-recoverable, bits read)10 in 10e17
MTBF (M hours)2.0
Availability (hrs/day x day/wk)24x7
Acoustics
Idle (Bels, typical)3.2
Power
Requirement+5 VDC (+/-5%), +12 VDC (+/-5%)
Operating (W, typical)7.5
Idle (W)5.8
Idle efficiency (Watt/GB)0.0096
Physical size
z-height (mm)14.8
Dimensions (width x depth, mm)70.1 x 100.45
Weight (, max)219
Environmental (operating)
Ambient temperature5° to 55° C
Shock (half-sine wave, 2ms, read operation)60G
Vibration, random, no errors (G RMS 5 to 500 Hz)0.4, all axes
Environmental (non-operating)
Ambient temperature-40° to 70° C
Shock (half-sine wave, 2ms)>300G
Vibration (RMS 5 to 500 Hz)1.5, all axes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUC156060CSS204 TRCN6 0TRCN6

Weight: 1 lb
