Dell Compellent WDDV9 / 091PD8 400GB 12Gbps SIE Write Intensive SAS SSD

Toshiba WDDV9 091PD8 91PD8 SDFBB86DUB01 SAS eSSD Image 1 imageToshiba WDDV9 091PD8 91PD8 SDFBB86DUB01 SAS eSSD Image 2 imageToshiba WDDV9 091PD8 91PD8 SDFBB86DUB01 SAS eSSD Image 3 imageToshiba WDDV9 091PD8 91PD8 SDFBB86DUB01 SAS eSSD Image 4 imageToshiba WDDV9 091PD8 91PD8 SDFBB86DUB01 SAS eSSD Image 5 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:1
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$699.99

Capacity:400GB
Speed:Solid State
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Write Intensive / WI
Electrical Interface:SAS-3 12Gbps
Click to see more 400GB SAS Solid State Drives

Description

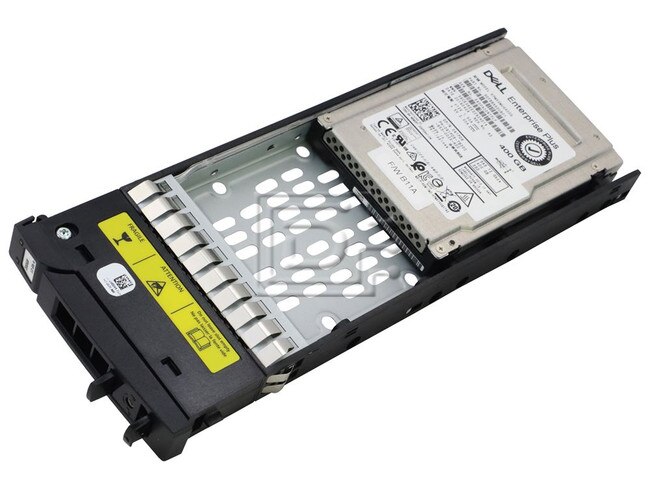

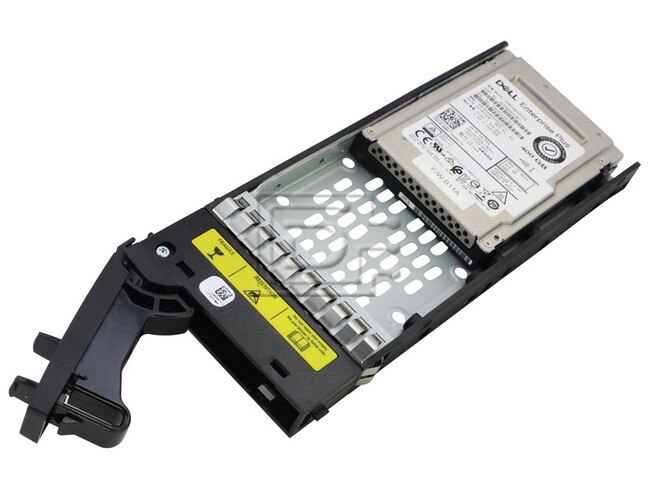

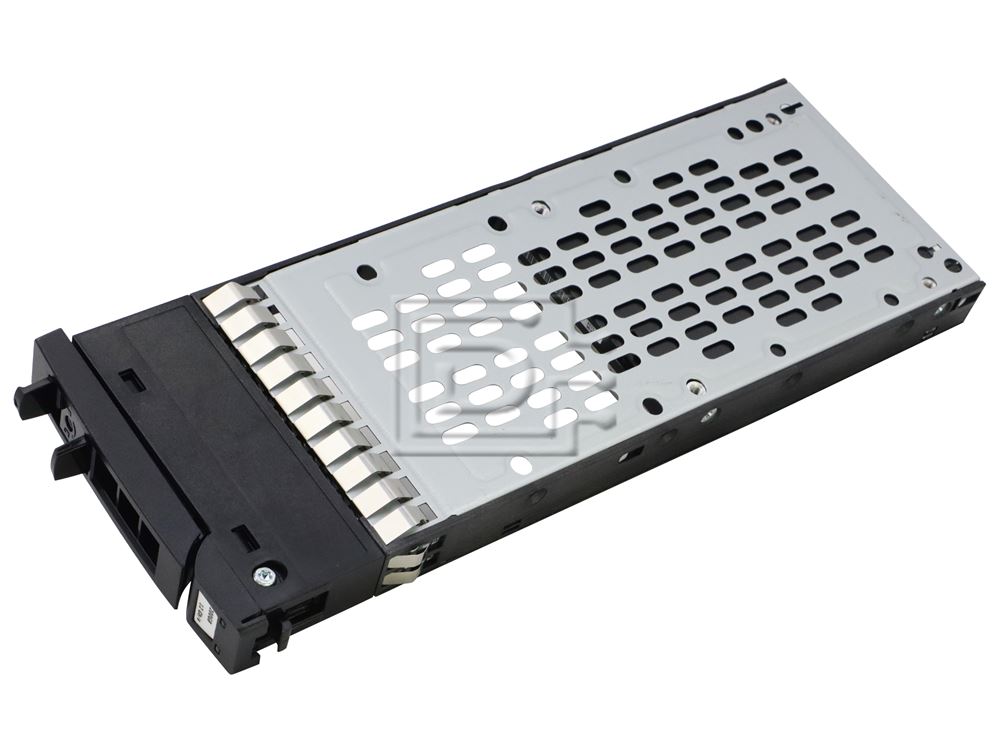

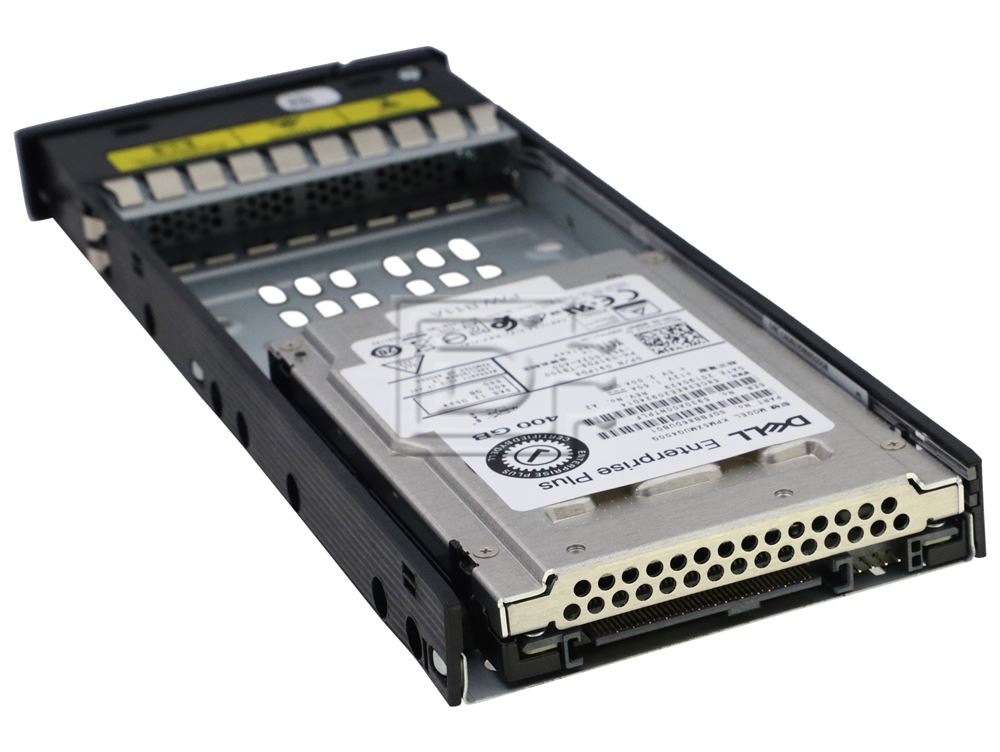

Dell Compellent WDDV9 / 091PD8 / KIOXIA PM5-M Series KPM5XMUG400G 400GB 2.5inch 12Gbps SIE Write Intensive TLC SAS Solid State Drive with 92359-08 tray - Brand New OEM

Dell Compellent WDDV9 / 091PD8 / 91PD8 / KIOXIA PM5-M Series KPM5XMUG400G / SDFBB86DUB01 400GB 2.5inch SFF 12Gbps SIE WI / Write Intensive TLC / Triple Layer Cell SAS / Serial Attached SCSI SSD / Solid State Drive with 92359-08 tray - Brand New OEM

PM5-M Series - Enterprise Write Intensive SSD

PM5-M 12.0 Gbit/s SAS SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The Series is designed to deliver high levels of performance, quality and reliability for mission-critical, hyperscale and virtualized environments. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 10 DWPD (Drive Write Per Day) with capacities up to 3.2 TB.

Key Features:
  • 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
  • Capacities from 400GB to 3.2TB
  • T10 Multi-Stream Write support
  • Up to 385 K random read IOPS (4 KiB) in dual port mode
  • 2.5 inch form factor, 15 mm Z-height
  • 10 DWPD with 100 % Random Write Workload
  • Power loss protection and end-to-end data protection, including T10 DIF Pin-3 power disable support
  • Sanitize Instant Erase (SIE) option
Key Applications
  • Mission critical enterprise workloads Hyperscale and virtualized environments
  • Online transaction processing (OLTP)
  • E-commerce
DPN: X15J6, 0X15J6, WGP72, 0WGP72

Compatibility

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Specifications

Enterprise Read Intensive SSD
Model NumberKPM5XMUG400G
Basic Specifications
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeBiCS FLASH TLC
Formatted Capacity400GB
Sustained 128KiB Sequential Read2,100 MB/s
Sustained 128KiB Sequential Write1,260 MB/s
Sustained 4KiB Random Read270K IOPS
Sustained 4KiB Random Write150K IOPS
Reliability
MTTF2,500,000 hours
DWPD10
Power Requirements
Supply Voltage5 V ±7 % , 12 V ±10 %
Power Consumption (Operating)5.0W Typ.
Dimensions
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Enviromental
Temperature (Operating)0 to 60 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9,800 m/s {1,000 G} (0.5 ms duration)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 091PD8 91PD8 SDFBB86DUB01

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
