EMC 005049828 / 118032817 3TB SAS Hard Drive

EMC Part #/MPN: 005049828

DiscTech Item #: EMC-005049828-NP-OE


$169.99
$169.99

Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 152

Average Seek Time: 8.2

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 64MB

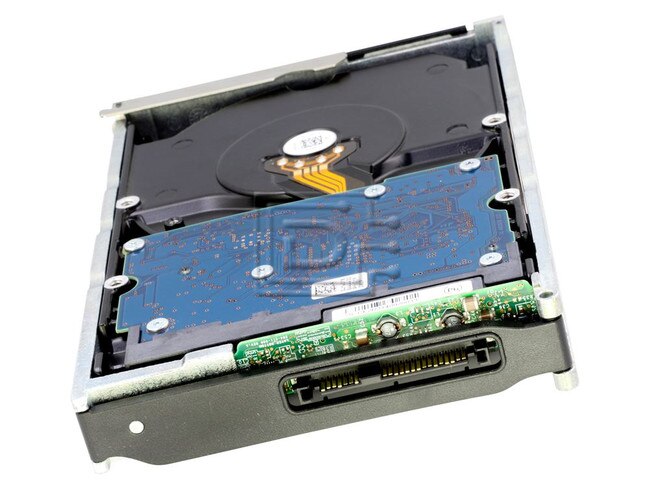

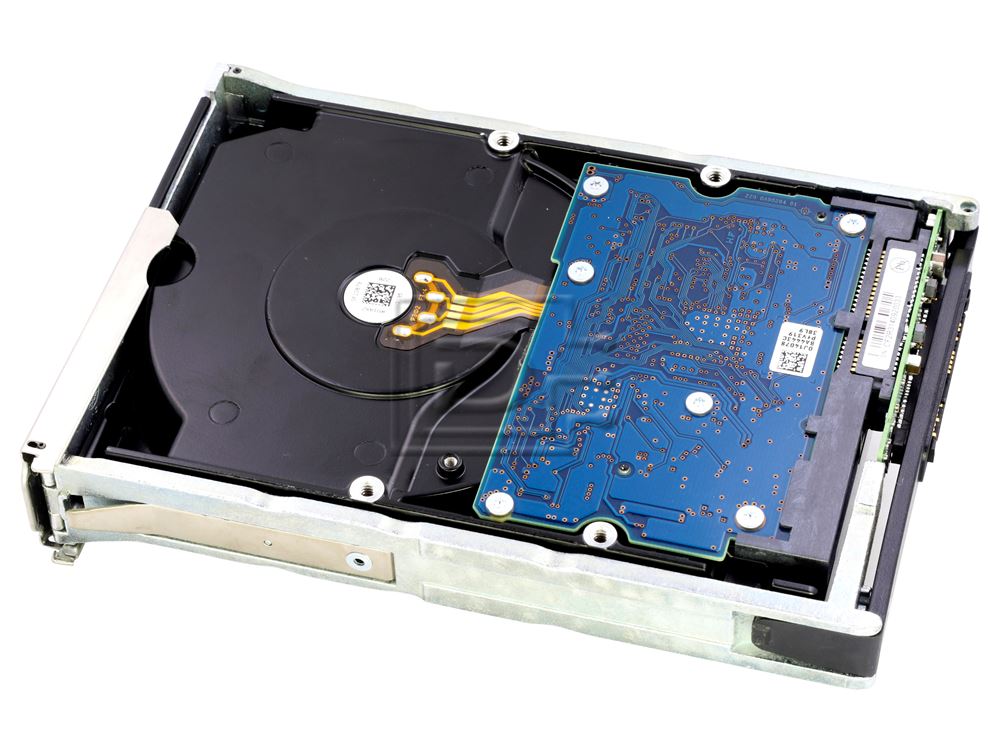

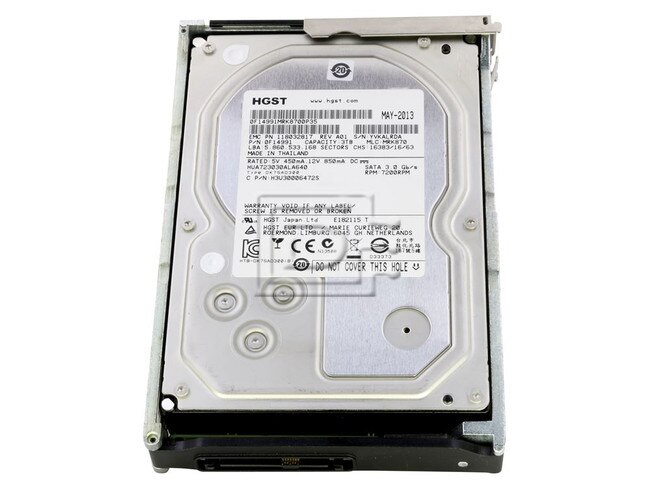

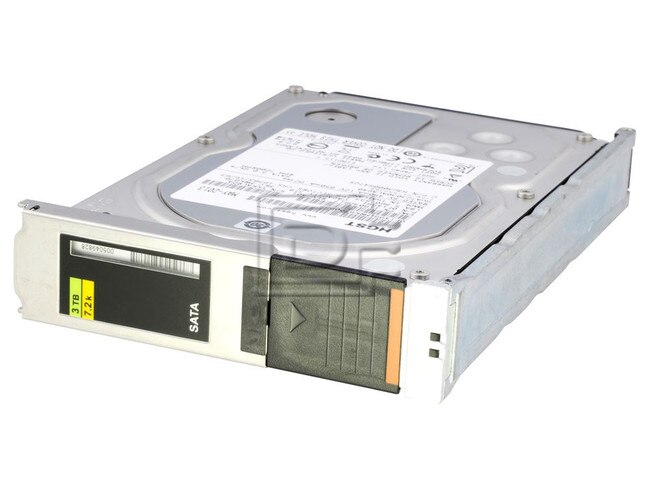

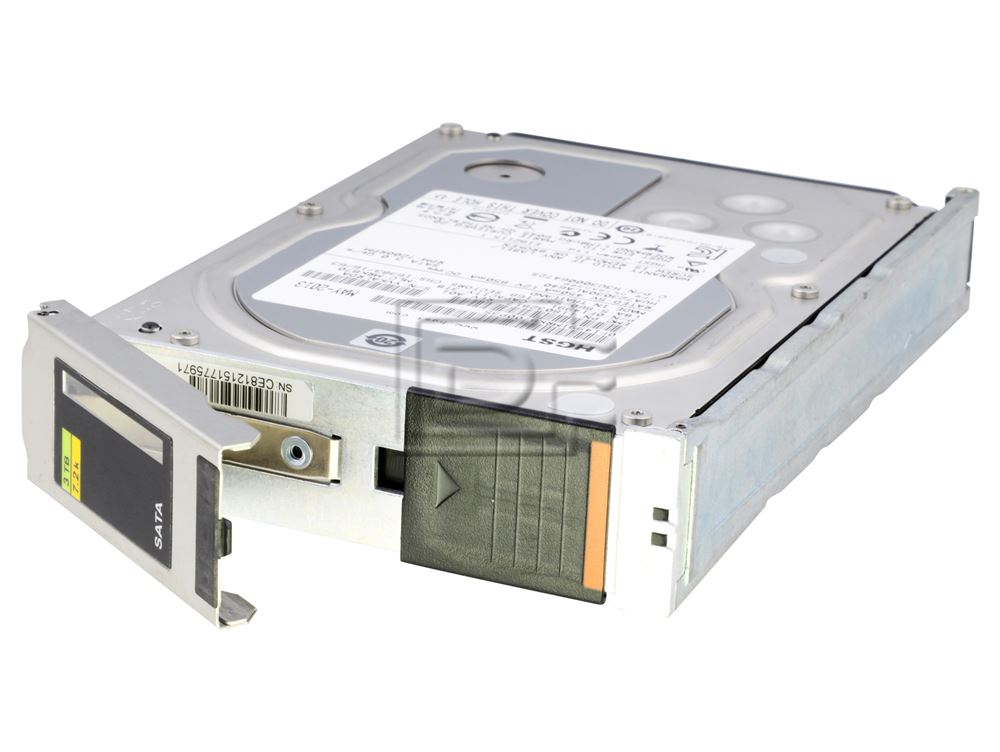

EMC 005049828 / 118032817 / HGST HUA723030ALA640 / 0F14991 3TB 3.5" 3Gbps 7.2K SAS 512 Hard Drive w/ 100-564-172 02 tray & 303-211-000A bracket - New Pull OEM

EMC 005049828 / 118032817 / HGST Ultrastar 7K3000 HUA723030ALA640 / 0F14991 3TB / 3000GB 3.5" 3Gbps 7.2K SAS 512 HDD / Hard Disk Drive w/ 100-564-172 02 tray & 303-211-000A bracket - New Pull OEM

Highest capacity and reliability with a proven design

The Hitachi Ultrastar 7K3000 is the world’s first and only 7200 RPM hard drive rated at 2.0 million hours MTBF and backed by a five-year limited warranty. The Ultrastar 7K3000 represents the fifth-generation Hitachi 5-platter mechanical design, first introduced in 2004, and has been field proven by top server and storage OEMs as well as leading Internet giants. When the highest quality and reliability are a top requirement, customer field data proves that the Ultrastar 7K3000 delivers by reducing downtime, eliminating service calls and keeping TCO to a minimum.

Engineered for the highest reliability, the Ultrastar 7K3000 is not only put through grueling design tests during development but must also pass stringent ongoing reliability testing during manufacturing. Across the entire Ultrastar family, world-class quality control, combined with scientific root-cause analysis and multi-faceted corrective actions, ensure that Hitachi GST remains the recognized leader in quality and reliability for enterprise-class hard drives.

Highlights
• 2.0 million hours MTBF
• Up to 3 terabytes of capacity
• 6Gb/s SATA and 6Gb/s SAS models for configuration flexibility
• Dual Stage Actuator (DSA) and Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
• 24x7 accessibility for enterprise-class, capacity-optimized applications
• 5-year limited warranty

Applications / Environments
• Cloud storage
• Massive Scale Out (MSO)
• Decision support & RAID
• Data warehousing & mining
• Disk-to-disk backup & archiving
• RAID arrays
• Network Attached Storage (NAS)

Hitachi p/n: 0F12456 / HUA723030ALA640


Compatibility:

This drive is compatible with any system that uses 3TB 3.5" SAS hard drives



Drive specification

0F12456 / HUA723030ALA640

Formatted Gbytes (512 bytes/sector)

3000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (Mbytes/sec max)

600

Cache buffer

64 Mbytes

Height (max)

26.1 mm

Width (max)

101.6 mm

Length (max)

147 mm

Weight (max) grams

690

Average seek, read (msec typical)

8.2

Startup current (typical) 12V (peak)

2.4 amps

Idle mode (typical) watts

5.6

Ambient temperature

5° to 60°C (op.)

–40° to 70°C (nonop.)



ROHS Compliant

Alternate MPNs: 5049828 118032817 HUA723030ALA640 0F14991

Weight: 1.8 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
