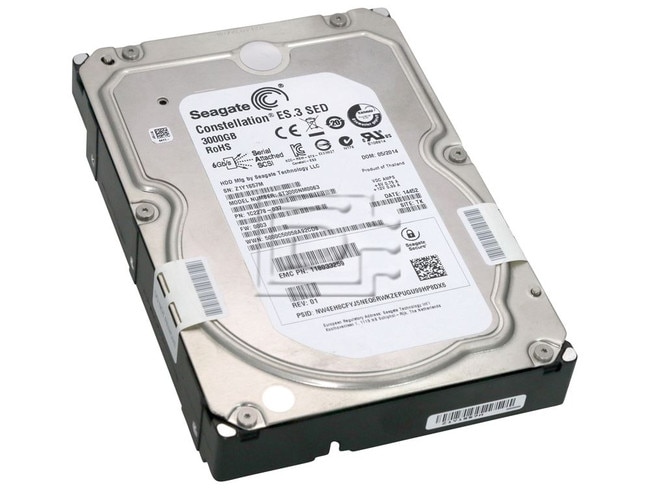

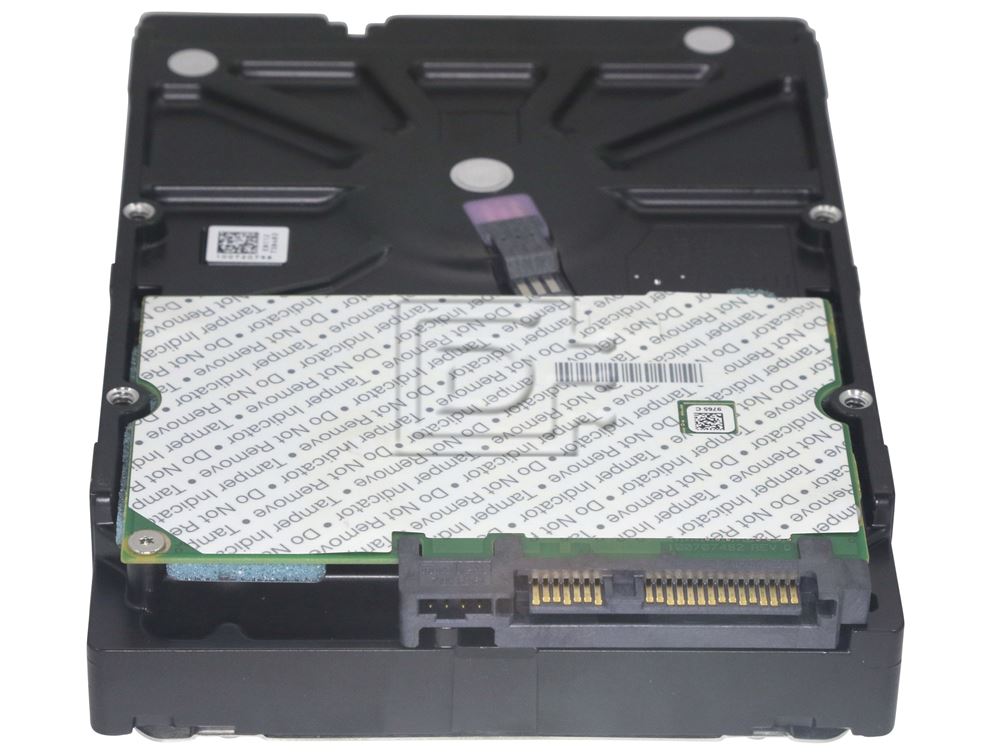

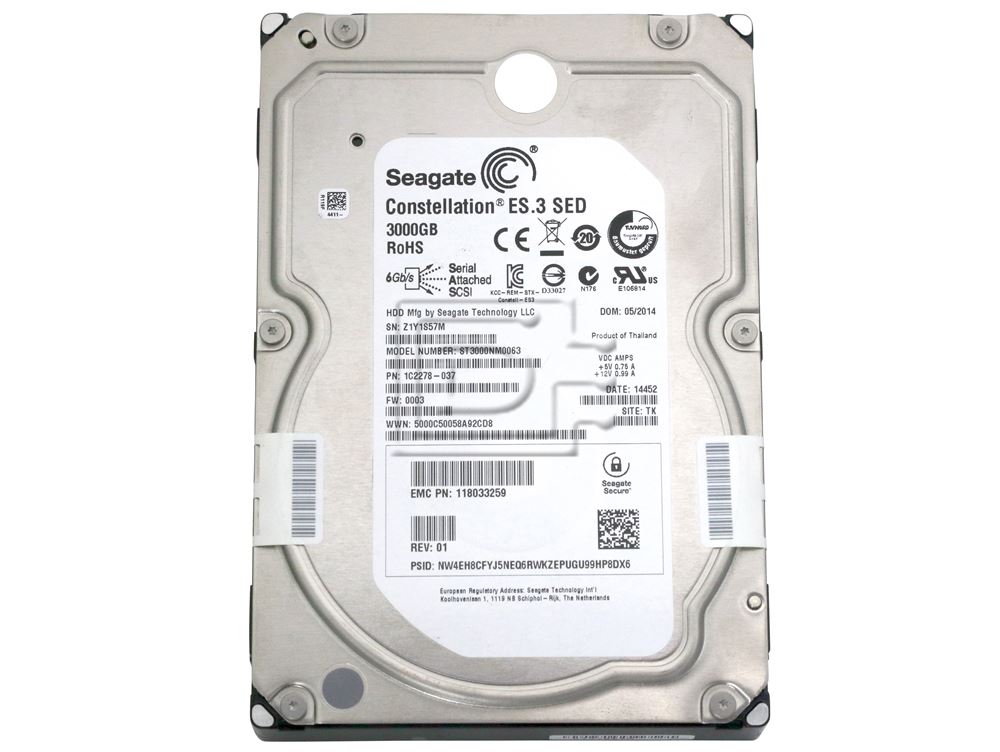

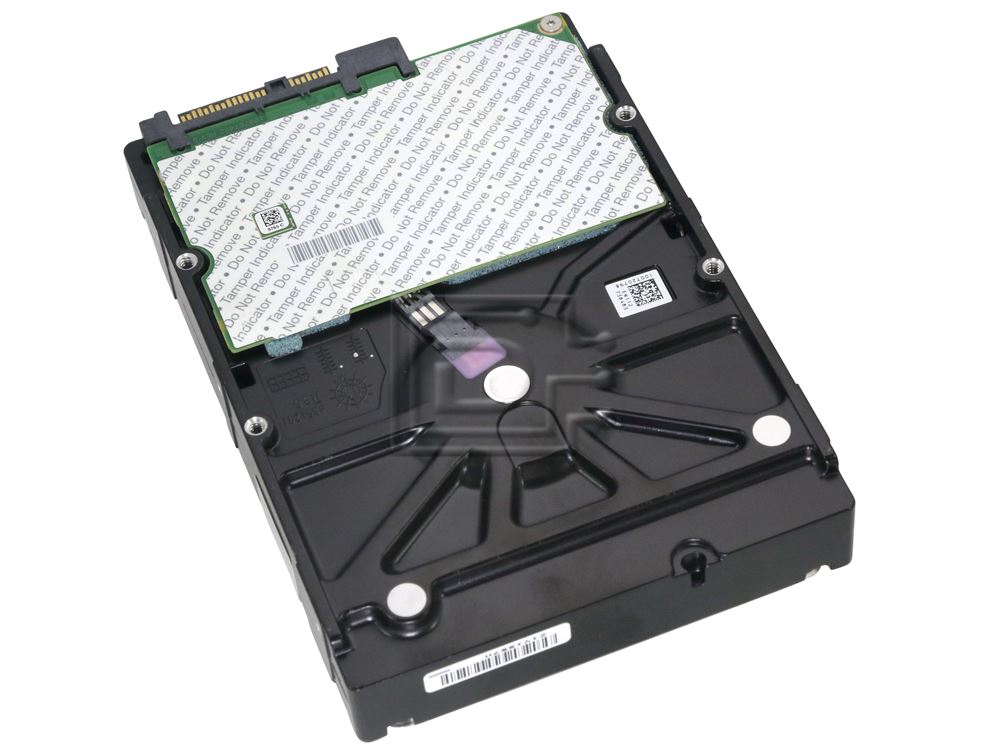

EMC Isilon 118033259 3TB SAS 6.0Gb/s SED FIPS 140-2 3.5" Hard Disk

Seagate Part #/MPN: 118033259

DiscTech Item #: EMC-118033259-RF-OE


Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 175

Average Seek Time: 4.16

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 128MB

EMC Isilon 118033259 3TB SAS 6.0Gb/s SED FIPS 140-2 3.5" Enterprise Hard Disk - Refurbished OEM EMC Isilon 118033259 3TB SAS 6.0Gb/s SED FIPS 140-2 3.5" Enterprise Hard Disk - Refurbished OEM

Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications

  • Highest-capacity large form factor enterprise drive 3TB for demanding data growth.
  • Sixth-generation drive technology with SAS and SATA interfaces for 24x7 reliability.
  • Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage.
  • Best-in-class rotational vibration tolerance ensures consistent performance.
  • Improved power and cooling efficiencies with low power consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards.
  • Multi-drive firmware maximized for enterprise system availability.
  • Multi-drive firmware maximized for enterprise system availability.
  • Self-Encrypting Drive (AES-256) with FIPS 140-2 validation and Seagate Instant Secure Erase cuts IT drive retirement costs while protecting data at rest securely.

Best-fit Applications

  • High-capacity RAID storage.
  • Mainstream enterprise external storage arrays (SAN, NAS, DAS).
  • Cloud bulk data storage.
  • Enterprise backup and restore — D2D, virtual tape.
  • Centralized surveillance.

  • Alt Pt# 403-0139-01 / 1C2278-037

    Compatibility: EMC Isilon x400

    Drive Model118033259 / 403-0139-01
    Self- Encrypting DriveAES-256
    Federal Information Processing StandardsYes
    InterfaceSAS 6Gb/s
    Protection Information (T10 DIF)Yes
    Humidity SensorYes
    Super ParityYes
    Low HalogenYes
    PowerChoice™ TechnologyYes
    Cache, Multisegmented (MB)128
    Reliability/Data Integrity
    Mean Time Between Failures (MTBF)1.4M
    Reliability Rating @ Full 24x7 Operation (AFR)0.63%
    Nonrecoverable Read Errors per Bits Read1 sector per 10
    Power-On Hours per Year8760
    Sector Size (Bytes per Sector)512, 520, 528
    Spindle Speed (RPM)7,200
    Max Sustained Transfer Rate OD (MB/s)175
    Average Latency (ms)4.16
    Interface PortsDual
    Rotation @ 1500 Hz (rad/s)12.5
    Power Consumption
    Idle Power, Average (W)6.74
    Typical Operating, Random Read (W)10.72
    Power Supply Requirements+12V and +5V
    Temperature, Operating (°C)5 to 60
    Vibration, Nonoperating: <5Hz to 500Hz (Grms)0.25
    Shock, Operating, 2ms (Read/Write) (Gs)70/40
    Shock, Nonoperating, 1ms and 2ms (Gs)300
    Height (mm/in)26.1/1.028
    Width (mm/in)101.85/4.010
    Depth (mm/in)147.0/5.878
    Weight (g/lb)655/1.444

    ROHS Compliant

    Alternate MPNs: 403-0139-01 1C2278-037

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech
