Fujitsu MAP SCSI Hard Drive MAP3147NC

(0) No Reviews Yet


DiscTech Item #: FUJ-MAP3147NC-FR-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 146GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 105

Average Seek Time: 4.5 / 5.0

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

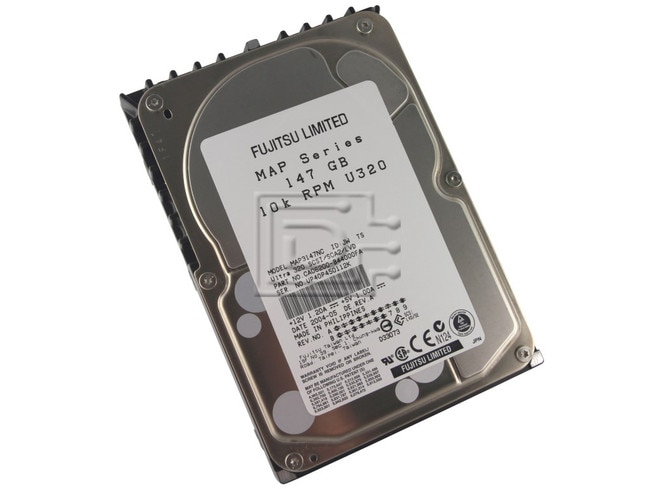

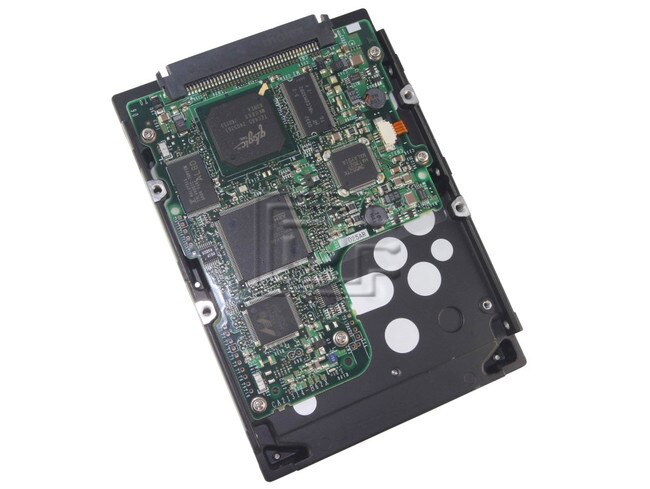

Fujitsu MAP 147GB 10K U320 80pin SCA-2 SCSI Hard Drive MAP3147NC - Factory Refurbished

Fujitsu’s new 10,000rpm MAP3xxx series includes models with optimum capacities of 36.7GB, 73.5GB and 147GB. The series is thus ideal for all mainstream SCSI applications, such as enterprise servers, PC servers, workstations, and RAID subsystems, where data integrity and reliability are essential.

These new drives offer new performance standards with a maximum internal transfer rate of 107.8MB/s and a fast average seek time of 4.5ms. The series are equipped with an 8MB, multi-segmented data buffer combined with a 32-bit-wide internal data path for faster data access. In addition, the series support Ultra320 SCSI (320MB/s) interface, which boasts new performance and reliability enhancing features, such as data packet protocol, quick arbitration and selection, and signal pre-compensation. The new series also support 2Gb FC-AL2 interface.

Concerning reliability, the new series features the industry’s highest MTBF rating 1,200,000 hours. It also incorporates many reliability enhanced features, such as alloy top cover for lower acoustics and an improved SMART detection system.



Formatted capacity/device(*1)
147.01 GB
73.50 GB
36.74 GB
Number of disks
Nubmer of heads
Number of cylinders(*2)
Formatted capcity/track (B)
272,896 to 479,232
Number of rotations min (rpm)
10,025 +_ 0.2%
Average latency time
2.99 msec
Seek Time (*3) (Read/Write)

Track to Track


Full stroke

0.3 ms/0.5 ms

4.5 ms/5.0 ms

10.0 ms/11.0 ms

Start/stop time (*4)

Start time

Stop time

30 s typ. (60 s max.)
30 s typ.
Recording mode
External dimensions




25.4 mm


146.0 mm

Weight (max)
0.75 kg
Power consumption
9.6 W
Data transfer rate (*10)
Disk drive
64.1 to 107.86 MBs
320 MB/s max.
Logical data block length (*11)
512 to 528 byte (Fixed length)
SCSI command specifications
SPI-4 (T10/1365D Rev.7), SAM-2(T10/1157D Rev .20),

SPC-2 (T10/1236D Rev. 20), SBC (T10/996D Rev. 8c
Data buffer
8 MB FIFO ring buffer
Acostic noise (Ready)
3.4 bels

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
