FUJITSU Part #/MPN: MAS3735FC
DiscTech Item #: FUJ-MAS3735FC-BN-OE
- Brand New
- Warranty:1 Year DiscTech
- In Stock:73Need more?
Enterprise Grade
Capacity: 73GB
Speed: 15K RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 114
Average Seek Time: 3.3 / 3.8
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

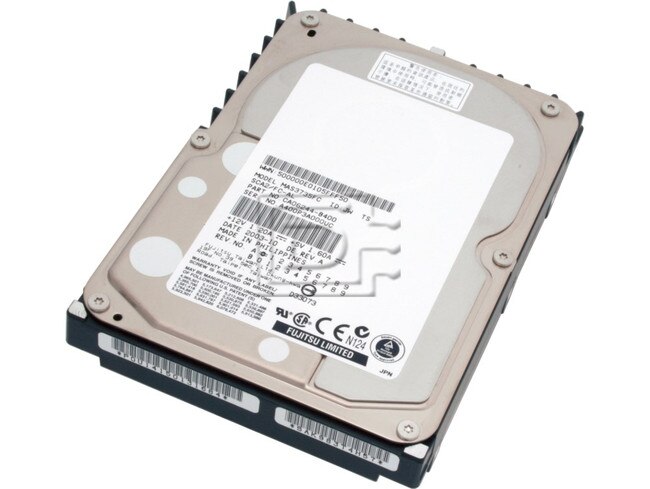

Fujitsu MAS 73GB 15K Fibre Channel 2Gbps FC Hard Drive MAS3735FC Brand New
The MAS series of hard drives combine numerous, innovative Fujitsu technologies to deliver industry-leading performance and reliability. Our seventh-generation Giant Magneto-Resistive (GMR) head technology increases areal density, so MAS drives can achieve capacities up to 73.5 GB using fewer platters. A super-fast 15,000-RPM rotational speed lowers average seek time to 3.3 ms, single-track seek time to 0.3 ms, and average rotational latency to 2.0 ms. To improve response time in high-load, multitasking applications, the MAS series features an 8-MB, 32-bit-wide data cache and a dual-processor architecture. Acceleration Feed Forward, a method of canceling out rotational vibrations and shocks, also helps improve drive performance. And to make MAS drives quieter, we’ve incorporated fluid dynamic bearings (FDBs).
Compatibility:
The SCA-2 80-pin version of these low-profile 1" of these SCSI hard drives are compatible with all of the following systems (this list is not all inclusive):
Dell® PowerEdge servers 800, 1500, 1550, 1600, 1600SC, 1650, 1750, 1800, 1850, 2300,2350, 2400, 2450, 2500, 2500SC, 2550, 2600, 2650, 2800, 2850, 3250, 4300, 4350, 4400, 4600, 6300, 6350, 6400, 6450, 6600, 6650, 6800, 6850, 7150 & 8450 Series Servers and Dell Powervault® 200S, 201S, 210S, 211S, 220S, 221S, 220F, 221F, 224F, 650F, 660F, 750N & 755N Arrays & PowerApp 120.
HP / Compaq Proliant® server CL-1850, DL-320, DL-380, DL-580, DL-590/64, DL-760, ML-350, ML-330, ML-350, ML-370, ML-380, ML-530, ML-570, ML-750, PL-8000, PL-8500, 1600, 1850, 3000, 5500, 8000, 8500 Model Servers. Additionally 4100, 4300, 4314R, 4314T, 4354R SCSI RAID Arrays
IBM xServer eSeries & Netfinity Servers x220, x230, x225, x232, x235, x240, x250, x300, x320, x330, x335, x340, x345, x360, 3500, 4500R, 5100, 5600, 6000R, 7100, 7600 & 8500. Also compatible with x206, x225, x226, x235, x236, x335, x336, x345, x346, x365, x385, x400, x455.
| Description | MAS3735 | MAS3367 | MAS3184 | ||
| Functional Specifications | |||||
| Capacity (formatted) | 73.5 GB | 36.7 GB | 18.4 GB | ||
| Disks/heads | 4/8 | 2/4 | 1/2 | ||
| Disk media diameter | 2.75 in. | ||||
| Bytes/sector | 512 | ||||
| Cylinders | 27,100 | ||||
| Logical blocks | 143,552,136 | 71,819,496 | 35,890,512 | ||
| Recording density | 580,000 BPI | ||||
| Track density | 60,000 TPI | ||||
| Buffer size | 8192 KB | ||||
| Interfaces | Ultra320 SCSI (68 or 80 pin) and 2 GB/s Fibre Channel | Ultra320 SCSI (68 or 80 pin) | |||
| Seek time | Track to track | Read: 0.3 ms (typ) / Write: 0.5 ms (typ) | |||
| Average | Read: 3.3 ms (typ) / Write: 3.8 ms (typ) | ||||
| Full stroke | Read: 8.0 ms (typ) / Write: 9.0 ms (typ) | ||||
| Data transfer rate | To/from media | 93.1 to 118.2 MB/s | |||
| To/from host | Ultra320 SCSI - 320 MB/s (max.) / Fibre Channel - 212.5 Mb/s (max.) | Ultra320 SCSI - 320 MB/s (max.) | |||
| Start time | 30 s (typ) | ||||
| Stop time | 30 s (typ) | ||||
| Rotational speed (RPM) | 15,000 | ||||
| Average latency | 2.00 ms | ||||
| Power consumption, idle | SCSI | 11.3 W | 8.5 W | 7.5 W | |
| FC | 13.0 W | 10.2 W | N/A | ||
| Spindle motor | FDB (Fluid Dynamic Bearings) | ||||
| Physical Specifications | |||||
| Power requirements | Idle (ready) | 11.3 W (typ) | 8.5 W (typ) | 7.5 W (typ) | |
| Spin-up | 12V @ 2.5 A 5V @ 0.85 A | ||||
| Dimensions | Height | 25.4 mm (1.0 in.) | |||
| Width | 101.6 mm (4.0 in.) | ||||
| Depth | 146.0 mm (5.75 in.) | ||||
| Weight | 0.80 kg (1.76 lb.) | ||||
| Drive temperature | Operating | 5°C to 55°C | |||
| Non-operating | -40°C to 70°C | ||||
| Gradient | 15°C/H max | ||||
| Relative humidity | Operating | 5% to 95% (non-condensing) | |||
| Non-operating | 5% to 95% (non-condensing, with packaging) | ||||
| Vibration | Operating | 1.0 G (20 to 300 Hz) | |||
| Non-operating | 5.0 G (20 to 300 Hz) | ||||
| Shock | Operating | 65 G (half-sine pulse, 2 ms duration) Rotational - 25,000 rad/sec2. @ 2 ms. | |||
| Non-operating | 250 G (half-sine pulse, 2 ms duration) | ||||
| Altitude | Operating | -984 to 9,843 ft. | |||
| Non-operating | -984 to 39,370 ft. | ||||
| Acoustics | Idle | < 3.6 bels | |||
| Reliability Specifications | |||||
| MTBF | 1,200,000 hours | ||||
| MTTR | No field repairable parts, return to factory for repair. | ||||
| Start/stop cycles | 20,000 cycles | ||||
| Error Rate | Seek error | 10 per 108 seeks | |||
| Non-recoverable read error | 1 per 1015 bits read | ||||
Click here to view the manufacturer's item description/brochure
Alternate MPNs: CA06244-B400
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
