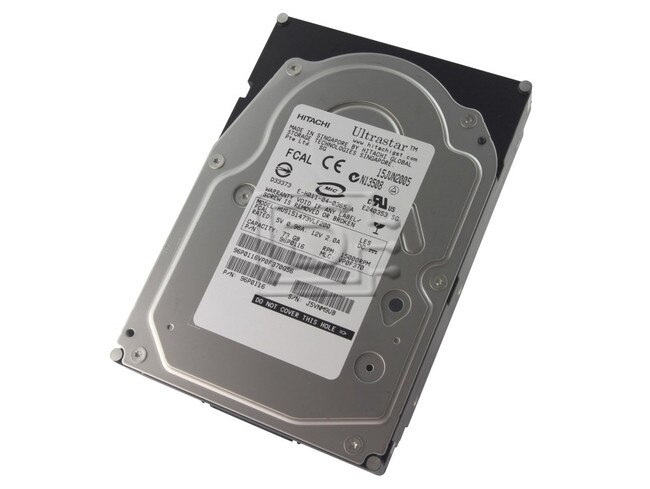

Hitachi Fibre / Fiber Channel Hard Drive 96P0116
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:20Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 73GB |
| Speed: | 15K RPM |
| Interface Types: | Fibre Channel - Internal - Arbitrated Loop ASA II |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | FC-AL - 2Gbps |
| RAM: | 16MB |
Description
Hitachi 15K147 96P0116 / HUS151473VLF200 73GB 15K 2Gbps 40pin FC-AL Fibre Channel Hard Drive - Brand New
The Hitachi Ultrastar 15K147 is the 3rd generation of 15,000 RPM enterpriseclass hard drives from Hitachi. Leveraging award-winning technologies that have generated proven quality and high-performance, the Ultrastar 15147 incorporates Fluid Dynamic Bearing motors (FDB) to contribute to increased capacity by enabling high-track density through a more precise position of the head. AFC Media, also known as "pixie dust", is an industry-first in 15,000 RPM enterpriseclass hard drives, enabling higher areal densities by improving thermal stability, which in turn, maintains data integrity.
Designed for both high-performance and high-reliablity, the Ultrastar 15K147 was developed with powerful processors and read-write channels, advanced servo coupled technology, (AFC), also known controls to improve seek and settle times, and overall improved mechanical stability to excel in today's demanding data-processing environments.
Model : HUS151473VLF200 / VIPER-A
Compatibility
This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays.
Specifications
| Specifications | |
|---|---|
| Model number | 96P0116 / HUS151473VLF200 |
| Model Name | 15K147 |
| Formatted Capacity | 73 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 3 |
| Performance | |
| Internal Transfer Rate (max) | 1129 Mbits/sec |
| External (I/O) Transfer Rate (max) | 212.5 MBytes/sec |
| Average Latency | 2.00 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 26.1 mm |
| Width | 101.6 mm |
| Length | 146.0 mm |
| Weight | 758 g |
| Environmental | |
| Max Operating Shock (2-msec) | 15 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^15 bits read |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS151473VLF200
Weight: 1.8 lb
Warranty: 1 Year DiscTech
