FUJITSU Part #/MPN: MBD2300RC
DiscTech Item #: FUJ-MBD2300RC-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.8 / 4.3
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

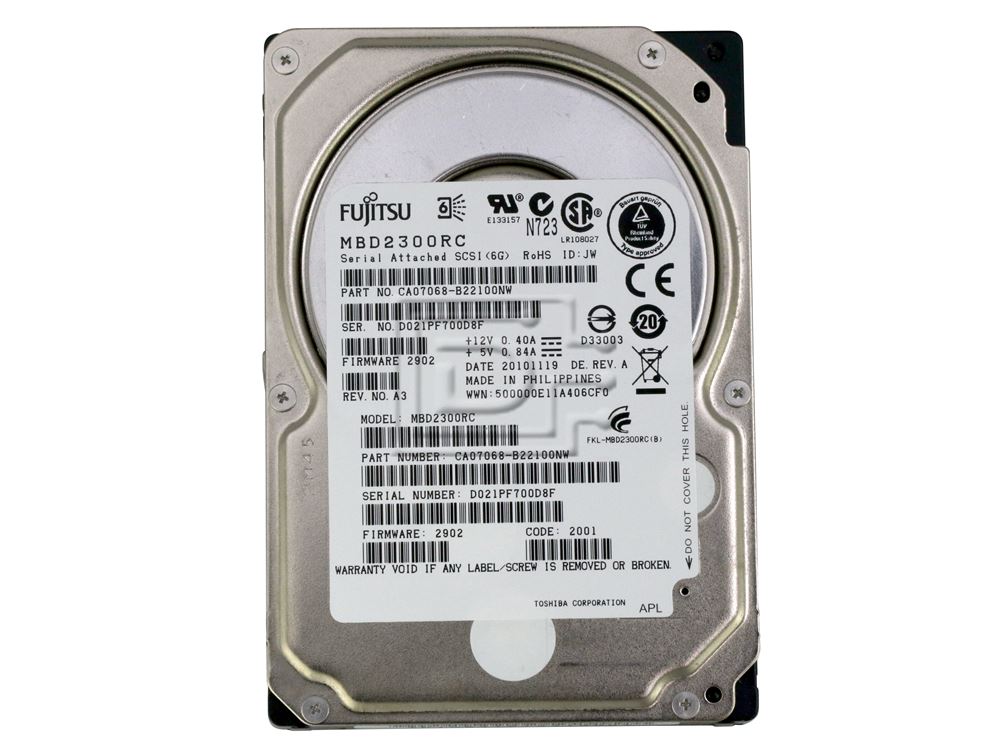

Fujitsu MBD2300RC 300GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Brand New
Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu introduces a new enterprise class 2.5-inch SAS drive offering industry leading performance and environmental benefits.
The MBD2-RC series is the first enterprise hard disk drive from Fujitsu to be halogen free. The 10,000 RPM 6Gb/sec. SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.
The higher capacity and performance meets a wide range of enterprise applications, from midrange volume servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS interface and improved areal densities enable higher data rates.
As part of the Fujitsu Green Policy Innovation program, the new series provides the best-in-class power consumption at 3.4 watts idle, achieving up to 28% reduction from previous generation models, and up to 74% reduction from current 3.5" 15K RPM offerings.
Fujitsu p/n: CA07068-B200
Compatibility:
This drive is compatible with any server that supports SFF (small form factor SAS drives.
| FUNCTIONAL SPECIFICATIONS | |
| Formatted storage capacity | 300.0 GB |
| Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
| Seek time (average) | 3.8/4.3 ms. typ. (read/write) |
| Seek time (full track) | 8.0/9.0 ms. typ. (read/write) |
| Average latency time | 2.99 ms. |
| Rotational speed | 10,025 RPM |
| Interface | SAS II (6Gbps) |
| Data Buffer Size | 16 MB |
| PHYSICAL SPECIFICATIONS | |
| Power requirement Idle (ready) | 3.4 W typ. |
| Form Factor | 2.5-inch x 15mm high |
| Height | 15.0 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.22 kg |
| Ambient temperature (operating) | 5 to 55 degrees C |
| Ambient temperature (non-operating) | -40 to 70 degrees C |
| Maximum DE surface temperature (operating) | 60 max deg. C |
| Gradient | 20 degrees C per hour |
| Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
| Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
| Maximum wet bulb | 29 degrees C (non-condensing) |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock (operating) | 100G Max (1ms) |
| Shock (non-operating) | 400G Max (1ms) |
| Altitude (operating) | 3,048 metres |
| Altitude (non-operating) | 12,192 metres |
| Acoustic noise (at 1 metre idle) | >/=2.9 (ready) bels |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: CA07068-B200
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
