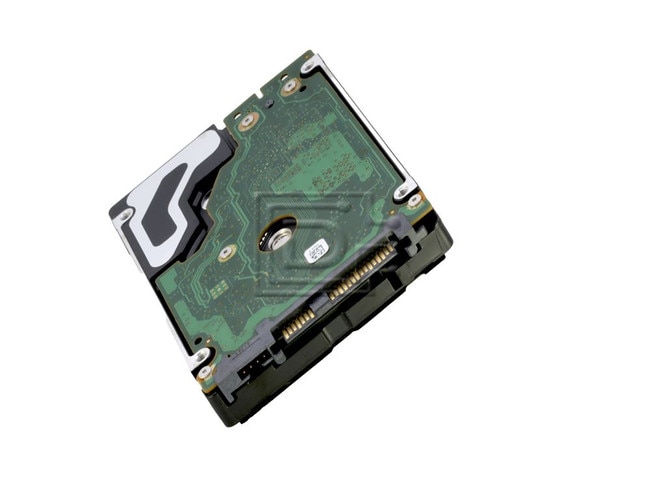

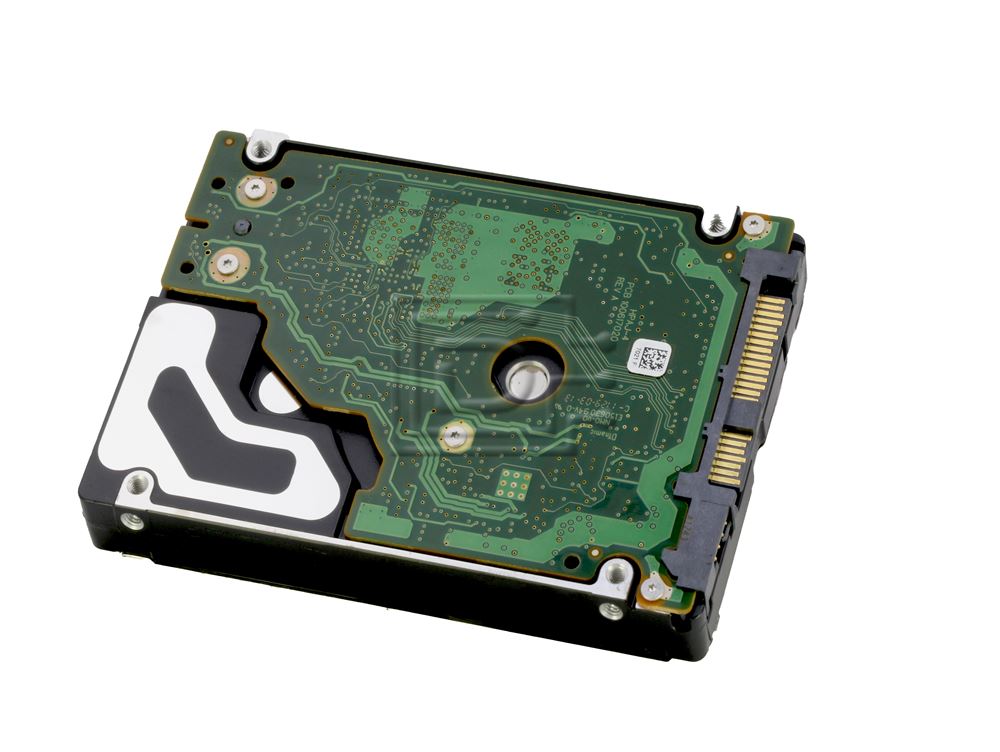

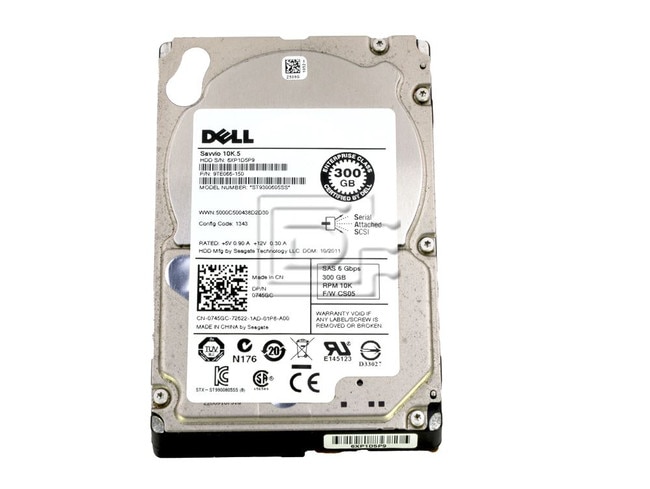

Seagate Savvio ST9300605SS 300GB SAS Hard Drive

Seagate Part #/MPN: ST9300605SS

DiscTech Item #: SGT-ST9300605SS-RF-OE-DEL


$39.99
$39.99

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 168 to 93

Average Seek Time: 3.4/3.8

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

Seagate Savvio ST9300605SS 9TE066-150 10K.5 300GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Refurbished OEM

Improves Storage Efficiency

The Savvio® 10K.5 drive is the highest-capacity 2.5-inch, 10K drive and the first SFF drive platform to offer four capacity points on a single SFF platform. This drive enables OEMs, system builders and end users to improve storage efficiency by providing up to 900GB in a single drive, helping data centers manage more data without increasing the number of drives, all while increasing sustained data rates by 18% (over previous generation) and maintaining favorable power consumption rates. Seagate PowerChoice™ technology enables OEMs and data centers to tailor systems for performance and power consumption, enabling green IT initiatives. The 2.5-inch small form factor allows end-user enterprises to solve space constraints through higher-density storage.

Reduces Costs and Complexity

The Savvio 10K.5 drive reduces system complexity by standardizing on a common form factor, storage interface and encryption technology. This means fewer device types, form factors, interfaces and security technologies need to be deployed, inventoried and managed.

Enables Smoother Transitions

OEMs and data centers have the flexibility to maintain or upgrade capacity, transition from 3.5-inch to 2.5-inch form factors, and/or migrate from Fibre Channel to SAS drives in one or more steps. With four capacity points on the same drive platform, the Savvio 10K.5 drive enables easier support for current systems and optimized return on existing investments.

Protects Data

Protection Information and Self-Encrypting Drive options protect data from corruption during the storage process and from exposure should the device by lost, stolen, or retired—helping organizations meet compliance and data security objectives.

1 The Savvio 10K.5 is available only through designated OEMs.

DPNs: 745GC 0745GC W6J6V 0W6J6V 9TE066-150


Compatibility:

All SAS compatible servers including (This list is not all inclusive):

Dell PowerEdge R710, R510, R910, 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.

Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

Specifications
Model number ST9300605SS
Model Name Savvio 10K.5
Formatted Capacity 300 Gbytes
Rotational Speed 10,000 rpm
Default Buffer (cache) Size 64 Mbytes
Number of Discs (physical) 1
Number of Heads (physical) 2
Performance
External (I/O) Transfer Rate (max) 600 MBytes/sec
Sustained Transfer Rate168 - 93 MBytes/sec
Average Seek Time, Read 3.4 msec typical
Average Seek Time, Write 3.8 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.4 msec typical
Average Latency 3.0 msec
Physical
Form Factor(width) 2.5-inch
Form Factor(height) .591-inch
Height 15.0 mm
Width 70.10 mm
Length 100.45mm
Weight 0.211 kg
Electrical
Power (Typical).46 amps
Environmental
Max Operating Shock (2-msec) 40 Gs
Max Nonoperating Shock (2-msec) 400 Gs
Operating Vibration (max) 0.5 Gs
Nonoperating Vibration (max) 3.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Nonrecoverable Read Errors 1 per 10^16 bits read



Click here to view the manufacturer's item description/brochure

Alternate MPNs: 745GC 0745GC 9TE066-150

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
