Fujitsu MHT2060BH SFF 60GB SATA Hard Disk Drive


DiscTech Item #: FUJ-MHT2060BH-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Capacity: 60GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 12

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 8MB

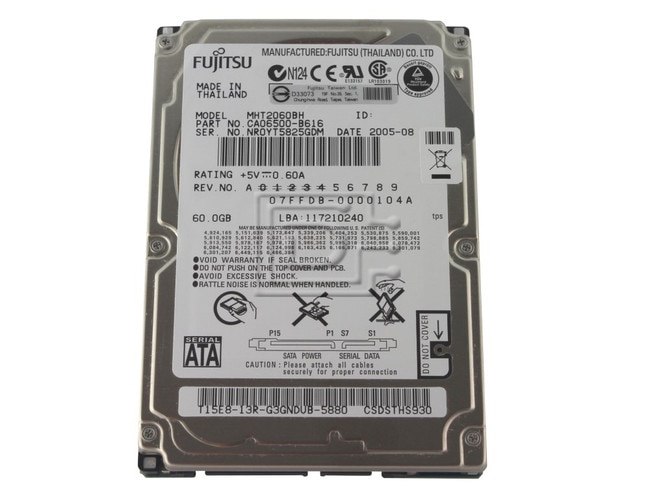

Fujitsu MHT2060BH 60GB 5.4K 2.5" SATA Hard Drive - Refurbished

This efficient hard disk drive provides the best of all worlds. With higher shock tolerance and improved input-output per second (IOPS) rates, both performance and reliability are increased when using multiple hard disk drives. Fluid Dynamic Bearing (FDB) motors help limit acoustic noise, ensuring whisper-quiet operation. And you can rely on the 2.5-inch SATA hard disk drives to meet industry specifications. After all, as an early member of the SATA Working Group, Fujitsu helped define the specifications for SATA.

The 2.5-inch hard disk drives’ reduced power consumption and low cost make it equivalent to traditional Parallel ATA hard disk drives, and enable innovation and improvements in everything from laptop and notebook computers to compact RAID systems.

The Fujitsu 2.5-inch SATA hard disk drive is clearly the wave of the future. And the technical savvy of Fujitsu, coupled with its strong customer support programs, can help you make the seamless migration to 2.5-inch hard disk drives and position your business for the future.


This drive is compatible with any laptop that requires SATA hard drives

Drive specificationMHT2060BH
Formatted Gbytes (512 bytes/sector)60
Bytes per sector512
Spindle speed (RPM)5,400
I/O data transfer rate (Gb/sec max)1.5
Cache buffer 8 Mbytes
Height (max)9.5 mm (0.37 inches)
Width (max)70 mm (2.8 inches)
Length (max)100 mm (3.9 inches)
Weight (max) grams101
Track-to-track seek time (msec typical)1.5
Average seek, read (msec typical)12
Startup current (typical) 12V (peak)1.0 amps
Operating power (typical) watts2.3
Idle mode (typical) watts.8
Standby mode (typical) watts.13
Sleep mode.13
Ambient temperature Operating5° to 55 °C
Ambient temperature Non-Operating-40° to 65 °C

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
