FUJITSU Part #/MPN: MHW2040AT
DiscTech Item #: FUJ-MHW2040AT-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 40GB
Speed: 4,200RPM
Interface Types: IDE ATA 2.5in IDC44M for laptop
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12/14
Electrical Interface: EIDE Ultra ATA100 100MBps
On-Board Cache: 8MB

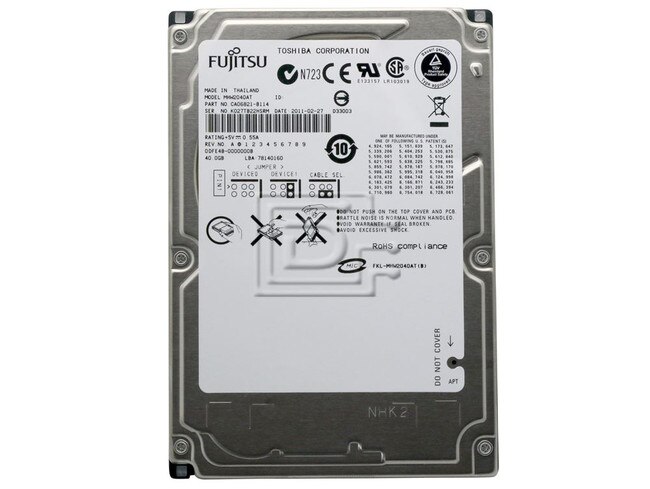

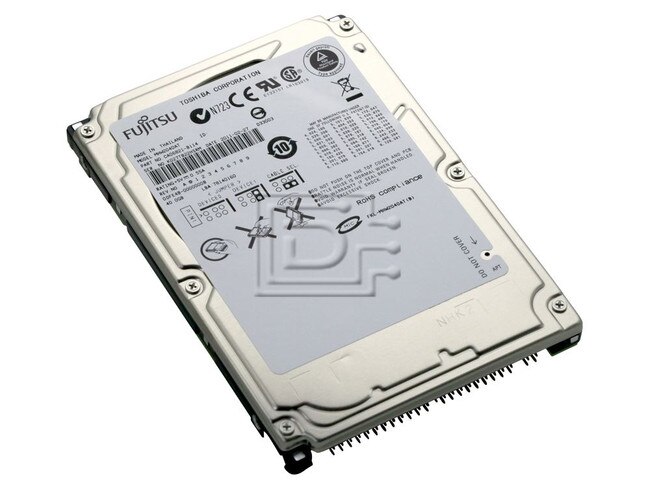

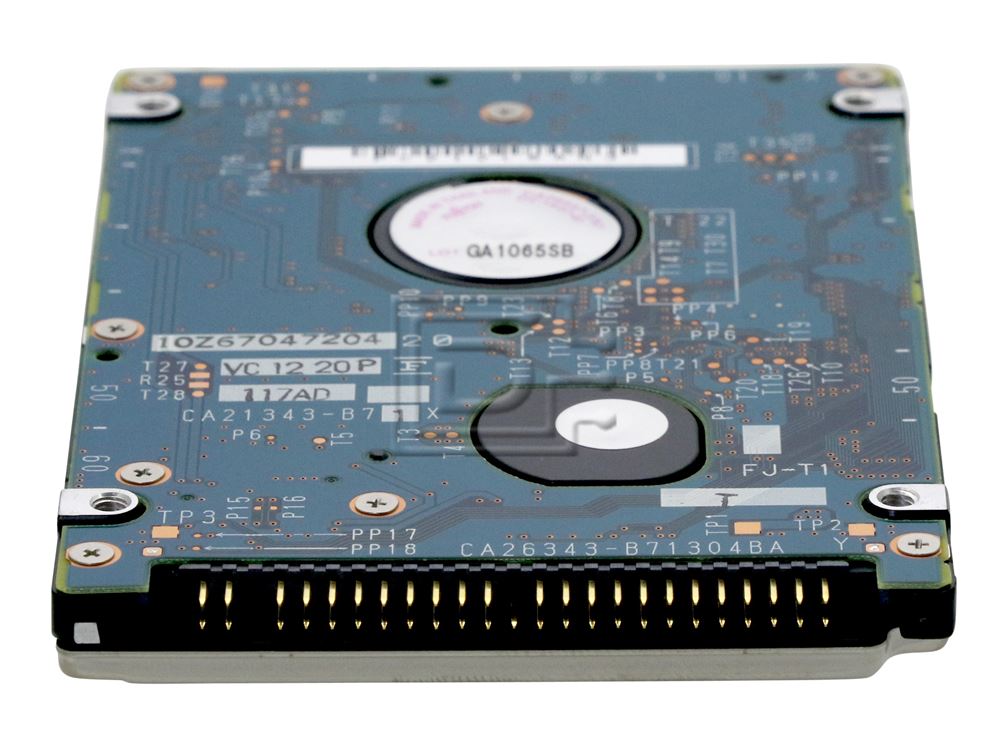

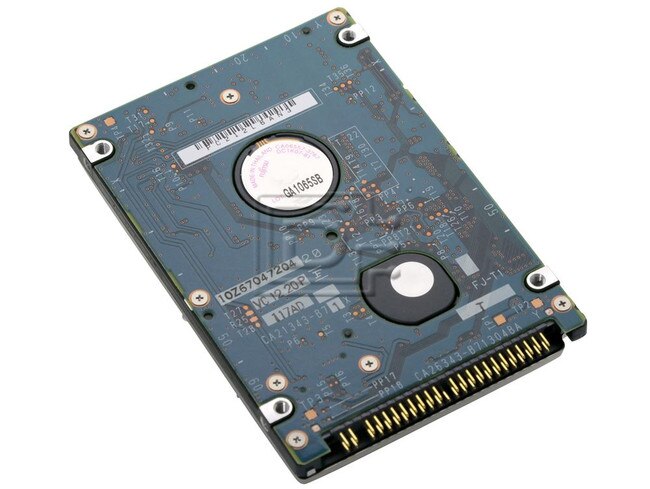

Fujitsu MHW2040AT 40GB 4.2K 2.5" ATA-7 Laptop Hard Drive - Refurbished
Fujitsu MHW2040AT 40GB 4.2K 2.5" ATA-7 Laptop Hard Drive - Refurbished
FUNCTIONAL SPECIFICATIONS | |
Formatted storage capacity | 40 GB |
Bytes per sector | 512 bytes |
Seek time (track to track) | 1.5 typ. ms. typ. |
Seek time (average) | 12 typ. (Read), 14 typ. (write) ms. typ. (read/write) |
Seek time (full track) | 22 typ. ms. typ. (read/write) |
Average latency time | 17.4 ms. |
Rotational speed | 4,200 RPM |
Interface | ATA - 7 |
Data Buffer Size | 8 MB |
Data transfer rate (DMA mode 2) | 100 MB per second |
PHYSICAL SPECIFICATIONS | |
Power requirement Voltage | 5V ±5% |
Spin-Up | 0.9 A max |
Power requirement Read/write | 1.6 W typ. |
Power requirement Idle (ready) | 0.5 W typ. |
Power requirement Sleep | 0.1 W typ. |
Form Factor | 2.5-inch x 9.5mm |
Height | 9.5 mm (0.37 in) |
Width | 70 mm (2.8 in) |
Depth | 100 mm (3.9 in) |
Weight | 101 g (3.53 oz) or less |
Ambient temperature (operating) | 5 to 55 degrees C |
Ambient temperature (non-operating) | -40 to 65 degrees C |
Maximum DE surface temperature (operating) | 60 deg. C |
Gradient | 20 degrees C per hour |
Relative humidity (operating) | 8 to 90 % RH (non-condensing) |
Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
Maximum wet bulb | 29 (Op.)/ 40 (Non Op.) degrees C (non-condensing) |
Vibration (operating) | 9.8m/s^2 (1.0G) (5 to 500Hz) |
Vibration (non-operating) | 49m/s^2 (5.0G) (5 to 500Hz) |
Shock (operating) | 2,205m/s^2 (300G) 2ms |
Shock (non-operating) | 8,820m/s^2 (900G) 1ms / 1,176m/s^2 (120G) 11ms |
Altitude (operating) | -300 to 3,000 metres |
Altitude (non-operating) | -300 to 12,000 metres |
Acoustic noise (at 1 metre idle) | 28 dBA typical |
Acoustic noise (at 1 metre idle) | 2.6 bels |
RELIABILITY | |
MTBF (Mean Time Between Failures) | More than 300,000 power on hours |
ROHS Compliant | Yes |
Click here to view the manufacturer's item description/brochure
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
