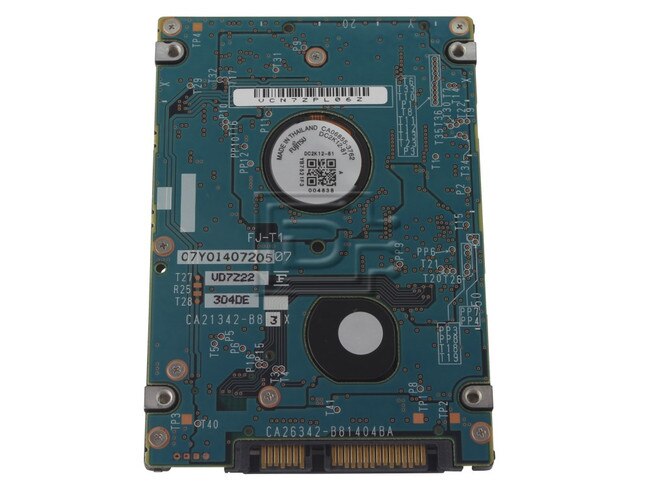

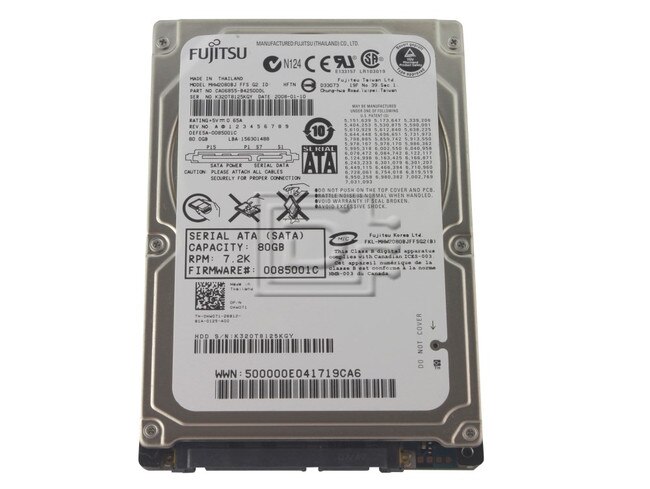

Fujitsu Mobile MHW2080BJ SATA Hard Disk Drive

FUJITSU Part #/MPN: MHW2080BJ

DiscTech Item #: FUJ-MHW2080BJ-RF-OE


$33.00
$33.00

Capacity: 80GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 10.5 / 12.5

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 8MB

Fujitsu Mobile MHW2080BJ 80GB 7.2K 2.5" SATA Hard Drive - Refurbished

Fujitsu raises the bar on mobile computing performance with the introduction of its first 7,200RPM, 2.5-inch hard disk drives using PMR technology. High-end notebook manufacturers have been experiencing demand for faster data access and higher disk drive capacities. The new Fujitsu 7,200RPM models satisfy both requirements, allowing manufacturers to offer true high performance mobile computing solutions.

Engineered to deliver high performance and high capacity in a small form factor, the mobile series retains the outstanding level of quality and reliability for which Fujitsu is renowned. These 7,200 RPM mobile HDDs deliver a low typical average read seek time of 10.5ms and a low average latency of 4.17ms. Featuring up to 160GB of storage space, low power consumption and acoustic noise, these 2.5-inch SATA hard disk drives are an excellent choice for today’s ultra-fast, high-capacity notebook computers.


Compatibility:

This drive is compatible with any laptop accepting 2.5" SATA hard drives.

Drive specification

MHW2080BJ

Formatted Gbytes (512 bytes/sector)

80

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (Gb/sec max)

3.0

Cache buffer

8 Mbytes

Height (max)

9.5 mm (0.37 inches)

Width (max)

70 mm (2.8 inches)

Length (max)

100 mm (3.9 inches)

Weight (max) grams

116

Track-to-track seek time (msec typical)

1.5

Average seek, read (msec typical)

10.5

Average seek, write (msec typical)

12.5

Startup current (typical) 12V (peak)

1.1 amps

Operating power (typical) watts

2.3

Idle mode (typical) watts

.8

Standby mode (typical) watts

.13

Sleep mode

.13

Ambient temperature

5° to 55 °C (op.)

–40° to 65 °C (nonop.)


Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
