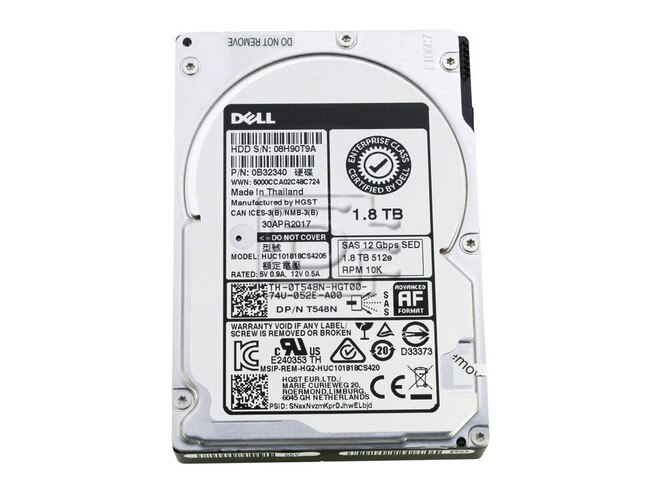

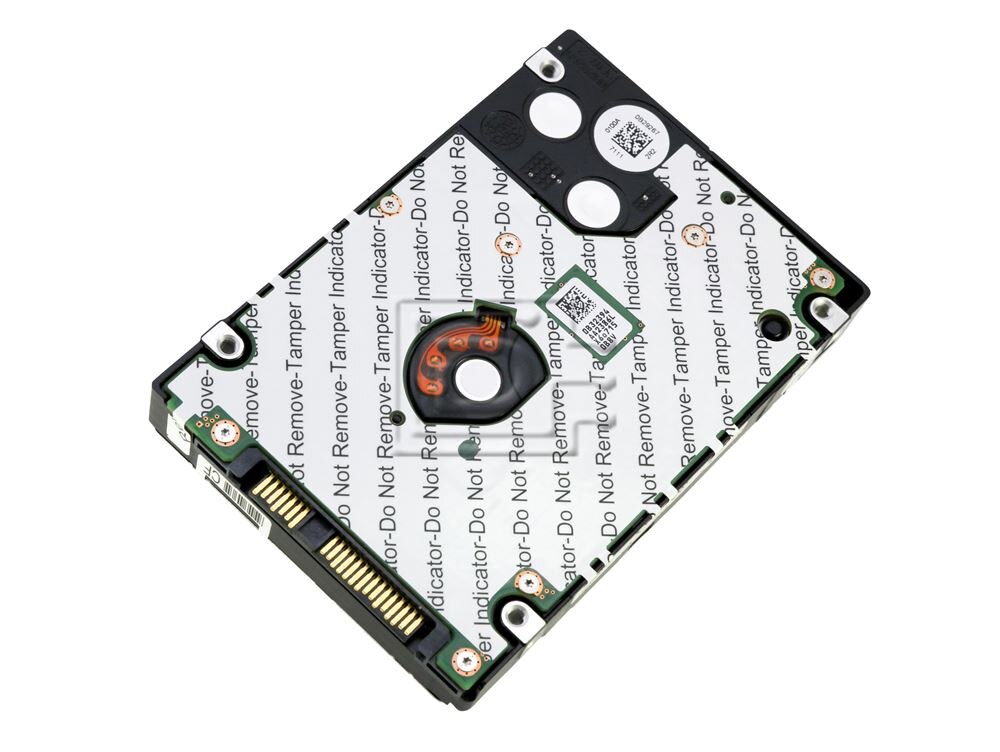

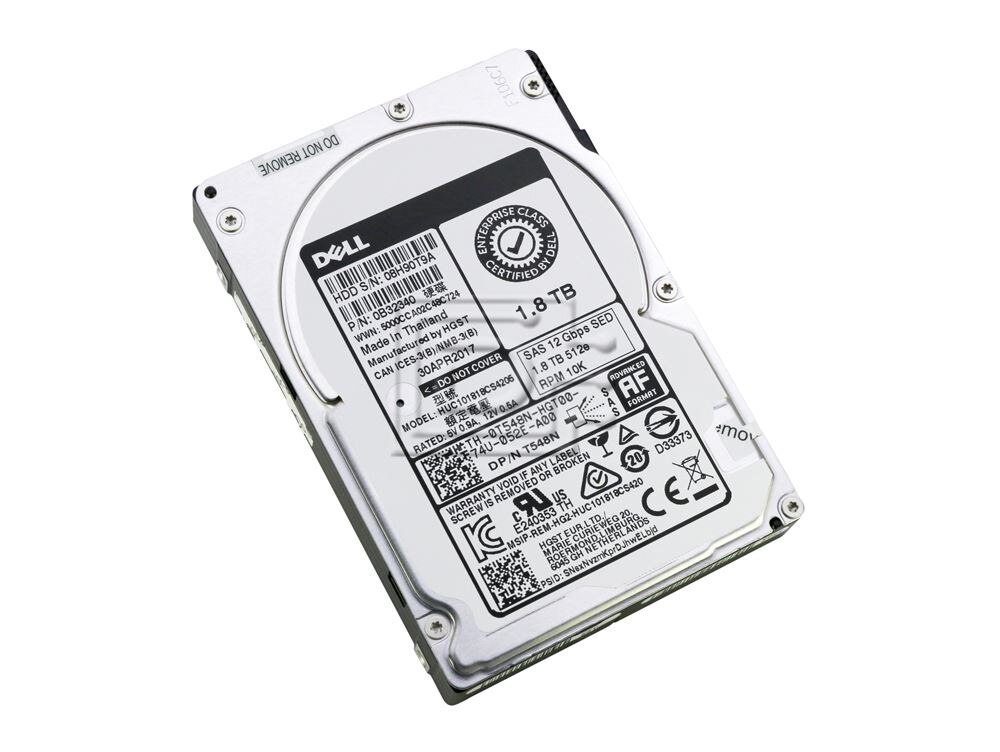

HGST 0B32340 / HUC101818CS4205 / Dell T548N 1.8TB 2.5" 10K SED FIPS SAS 12Gbps Hard Drive

Hitachi Part #/MPN: HUC101818CS4205

DiscTech Item #: HIT-HUC101818CS4205-BN-OE-DEL

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 1.8TB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 146 to 247

Average Seek Time: 2.85

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Hitachi / HGST Ultrastar C10K1800 0B32340 / HUC101818CS4205 / Dell T548N / 0T548N 1.8TB  2.5" 12Gbps 10K RPM 512e TCG SED / FIPS-2 SAS Hard Drive - Brand New OEM

Hitachi / HGST Ultrastar C10K1800 0B32340 / HUC101818CS4205 / Dell T548N / 0T548N 1.8TB / 1800GB 2.5" SFF 12.0 Gb/s 10000 RPM 512e / 512 Emulation TCG / Trusted Computing Group SED / Self Encrypting w/ FIPS 140-2 SAS / Serial Attached SCSI HDD / Hard Drive - Brand New

Ultrastar® C10K1800

Big Capacity and Performance in a Small Package
HGST delivers best-in-class capacity and performance in one small form factor hard drive. The Ultrastar® C10K1800 is a 10K RPM enterprise-class HDD that stores up to 1.8TB of data, 50% more capacity than prior generations, plus delivers best-in-class active and idle power efficiency, enabling next generation data centers to keep pace with digital data growth and improve space and power efficiencies. Data center architects can also leverage bestin-class performance on the C10K1800, achieving up to 2.5X better random write performance and 23% faster sequential performance over prior generation 2.5-inch SFF 10K RPM HDDs for demanding 24x7 enterprise workloads.


Technology Innovation
Ultrastar C10K1800 delivers unmatched performance thanks to several HGST technology innovations including media cache architecture, the industry’s fastest 12Gb/s Serial-Attached SCSI (SAS) interface and advanced format options. HGST’s media cache architecture is a disk-based caching technology, which provides a large non-volatile cache on the media resulting in improved reliability and data integrity during unexpected power loss, as well as a significant improvement in write performance even at high workloads when compared to solutions with limited NAND or flash-based NVC. The C10K1800 is the industry’s first 10K RPM drive to leverage an industry-leading 12Gb/s SAS interface, enabling very high transfer rates between host and drive. Advanced format models enable the industry’s highest 10K RPM capacity at 1.8TB with 4K native and 512 emulation to support new systems, and also offers 512 native format models to support legacy systems.

Enterprise Security and Reliability
The Ultrastar C10K1800 offers the broadest range of encryption and security options available on SAS HDDs from HGST, including Trusted Computing Group (TCG) enterprise SSC-compliant Self-Encrypting Drives (SED) which provide data protection without any performance loss, and TCG with FIPS (Federal Information Processing Standard) 140-2 certification, which adds and tamper evidence protection for the most stringent regulatory data security compliance requirements. Instant Secure Erase (ISE) models enable fast, cost-effective and secure drive repurposing and retirement. C10K1800 extends the company’s long-standing tradition of reliability leadership with a 2M hours MTBF rating.

HGST Quality and Service
The Ultrastar C10K1800 extends the long-standing HGST tradition of performance and reliability leadership. A balanced combination of new and proven technologies helps ensure high reliability and availability of customer data.

HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today’s demanding computing needs.


  • Industry-leading 1.8TB1 capacity in a 10K RPM HDD, 50% more than previous generations
  • Best-in-class performance —2.5X faster random write —23% faster sequential
  • Advance format (4KN and 512e) and 512n models
  • 12Gb/s SAS moves more data quickly & reliably
  • 128MB cache buffer manages data efficiency
  • Advanced Power Management optimizes power consumption
  • Best-in-class power efficiency
  • 2M hours MTBF2 rating
  • Security & encryption models including ISE, TCG-SED & FIPS 140-2 certified TCG-SED



  • Tier 1 enterprise-class, high-performance servers in data centers processing hot and warm data
  • Traditional mission-critical enterprise-class servers and storage
  • HPC, databases, OLTP, and BP applications requiring high reliability and 24x7 availability
  • Enterprise-class data security environments requiring increased security & easy drive retirement
  • Power- and space-constrained, mission-critical environments



This drive is compatible with servers that accept 2.5" x 15mm SFF SAS drives.

Ultrastar® C10K1800
Model/Part No.HUC101818CS4205
Alt Model/Part No.0B31311
Data Security ModeTCG SED with FIPS
InterfaceSAS 12Gb/s
Capacity1.8TB / 1800GB
Sector size (variable, bytes/sector)4096-Byte (512e, 4Kn)
Recording zones40
Data heads (physical)8
Data disks4
Max. areal density (Gbits/sq. in)620
Data buffer (MB)128
Rotational speed (RPM)10,520
Latency average (ms)2.85
Interface transfer rate (MB/s, max)1200
Sustained transfer rate (MB/s, typical)146 to 247
Seek time (read/write, ms, typical range)3.3-3.7 / 3.8-4.4
Error rate (non-recoverable, bits read)1 in 10^16
MTBF (M hours)2.0
Annualized Failure Rate (AFR)0.44%
Availability (hrs/day x days/wk)24x7
Idle (Bels)3.4
Requirements+5 VDC (+/-5%)
+12 VDC (+/-5%)
Operating, (W, typical)7.4
Idle (W)5.1
Idle efficiency (W/GB)0.003
z-height (mm)15
Dimensions (width x depth, mm)70.1 x 100.45
Weight (g, max)227
Environmental (operating)
Ambient temperature5o to 55° C
Shock (half-sine wave 2ms, read operation)60G
Vibration, random, no errors (G RMS 5 to 500 Hz)0.4, all axes
Environmental (non-operating)
Ambient temperature-40 to 70° C
Shock (half-sine wave 2ms, read operation)300G
Vibration, random (G RMS 5 to 500 Hz)1.5, all axes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: T548N 0T548N 0B32340

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
