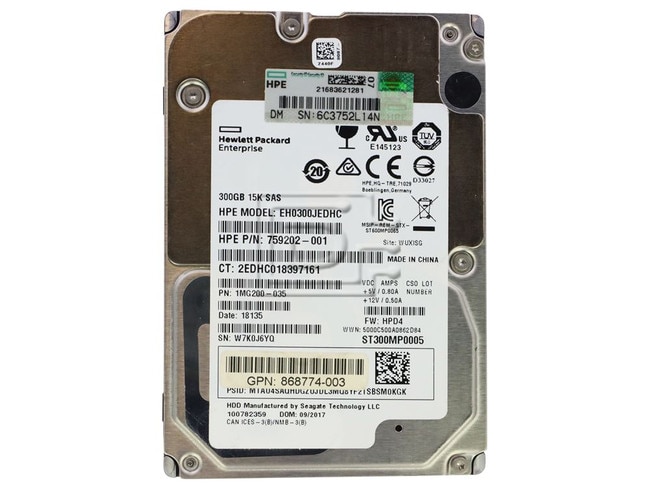

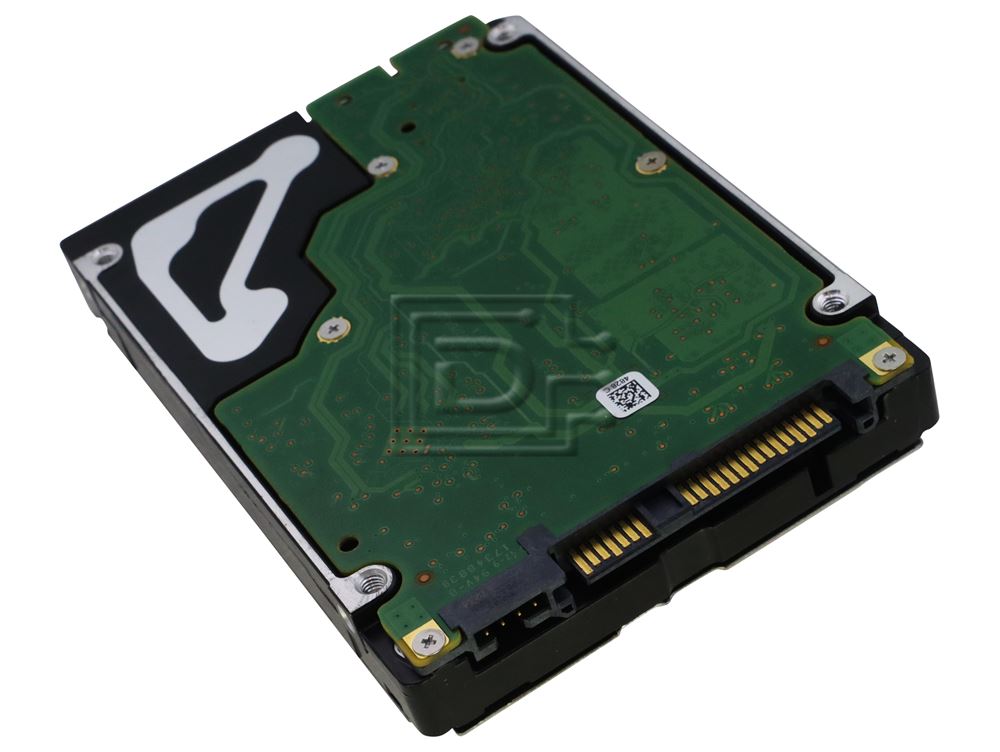

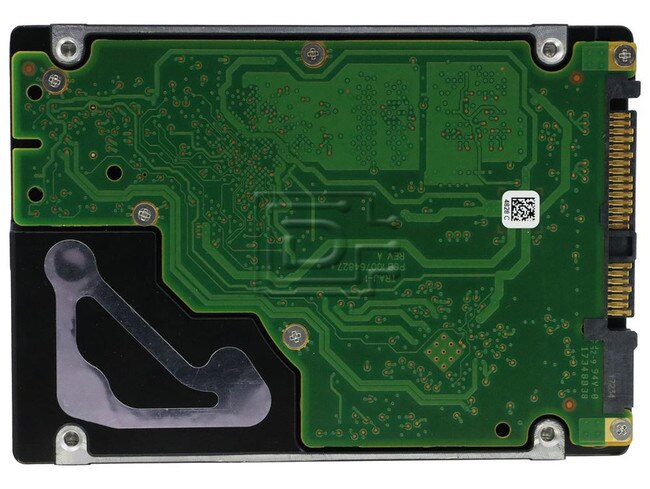

HPE 759202-001 / Seagate ST300MP0035 / 1MG200-035 300GB 2.5" 12Gbps 15K RPM 512e eMLC Enterprise SAS Hybrid Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 300GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-3 12Gbps |
| RAM: | 128MB |
Description
HPE 759202-001 / Seagate ST300MP0035 / 1MG200-035 300GB 2.5 12Gbps 15K RPM 512e eMLC Enterprise SAS Hybrid Hard Drive - Refurbished
HPE 759202-001 / Seagate ST300MP0035 / 1MG200-035 300GB 2.5" 12Gbps 15K RPM 512e eMLC Enterprise SAS Hybrid Hard Drive - Refurbished
Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
- Self-Encrypting Drive (SED) option (AES-256) helps cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
- SED models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
- FIPS Self-Encrypting Drive option helps protect Sensitive but Unclassified and Protected class data.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
Specifications
| SPECIFICATIONS | |
|---|---|
| Standard Model | ST300MP0035 |
| Specification | 512 Emulation |
| Capacity | 300GB |
| Interface | 12Gb/s SAS |
| PERFORMANCE | |
| Average Latency (ms) | 2.0 |
| Sustained Transfer Rate (Outer to Inner Diameter) MiB/s | 246 to 180 |
| Max. Instantaneous Transfer Rate (SAS dual port) MB/s | 2400 |
| Cache, Multisegmented (MB) | 128 |
| TURBOBOOST ENHANCED CACHE | |
| NAND Flash Type | eMLC |
| NAND Flash Size | 32GB |
| CONFIGURATION/RELIABILITY | |
| Disks/Heads | 2/4 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10e16 |
| Annualized Failure Rate (AFR) | 0.44% |
| POWER MANAGEMENT | |
| Typical Op (A) +5V/+12V | 0.46/0.51 |
| Average Idle Power (W) | 4.8 |
| Average Operating Power (W) | 8.4 |
| ENVIROMENTAL | |
| Ambient Temperature, Operating (C°) | 5 to 55 |
| Ambient Temperature, Nonoperating (C°) | -40 to 70 |
| Temperature Change Rate/Hr, Max (C°) | 20 |
| Relative Humidity, Noncondensing (max gradient 20% hour) | 5% to 95% |
| Shock, Max Operating: 11ms (Gs) | 40 |
| Shock, Max Nonoperating: 2ms (Gs) | 400 |
| Vibration, Operating: <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
| PHYSICAL | |
| Height (in/mm, max) | 0.591/15.00 |
| Width (in/mm, max) | 2.750/69.85 |
| Depth (in/mm, max) | 3.955/100.45 |
| Weight (lb/kg) | 0.496/0.225 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 759202-001 1MG200-035
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
