INTEL Part #/MPN: SSDSC2BB480G7P
DiscTech Item #: INT-SSDSC2BB480G7P-BN-OE-HPI
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 450/380
Average Seek Time: 42 µs / 40 µs
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610, HP 9th Gen. G9, HP 8th Gen. G8, HP 7th Gen. G7

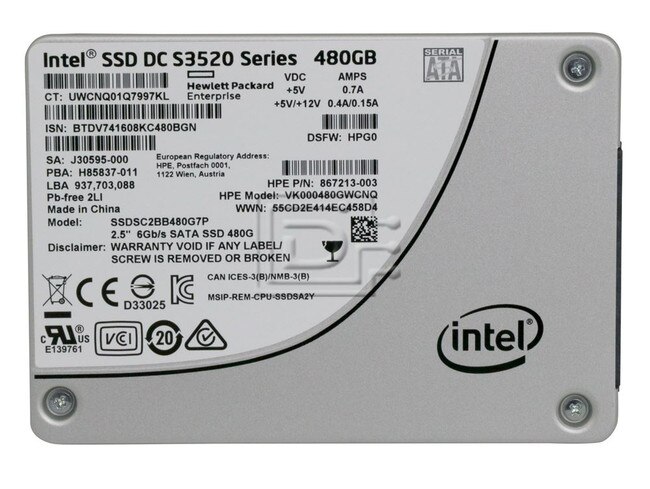

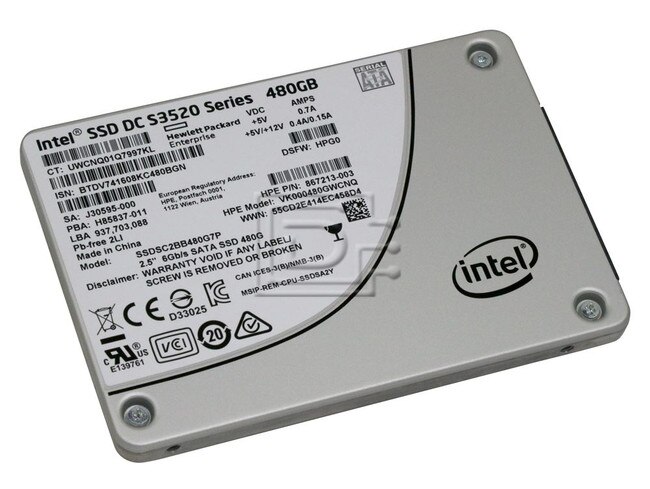

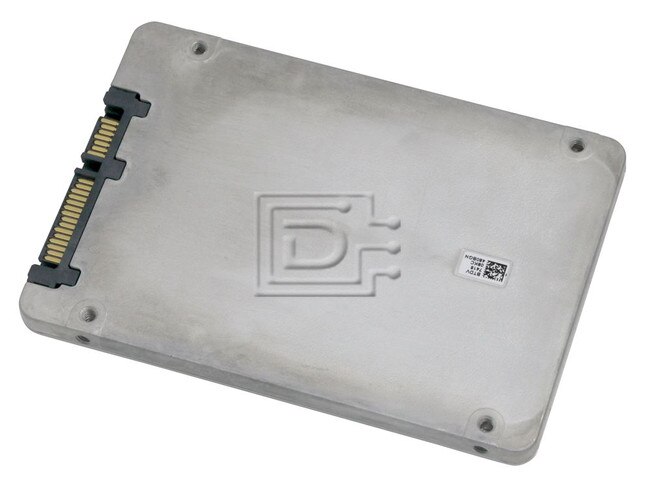

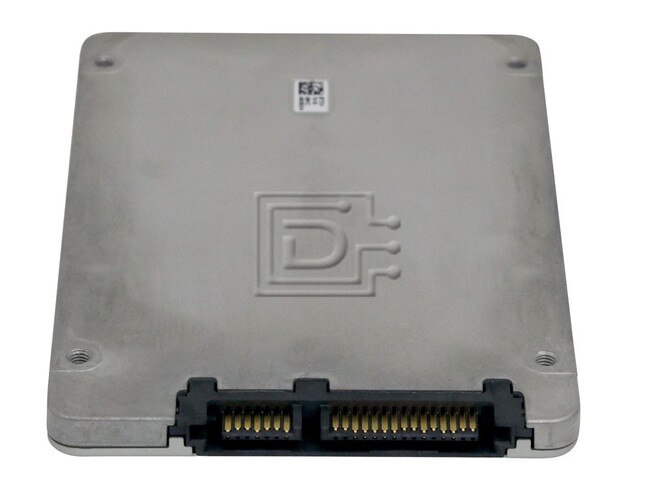

HPE SSDSC2BB480G7P 867213-003 Intel DC S3520 SSDSC2BB480G7 480GB 2.5 inch 6Gbps MLC RI SATA SSD - Brand New OEM
HPE Certified SSDSC2BB480G7P 867213-003 Intel DC S3520 SSDSC2BB480G7 480GB 2.5" 6Gbps MLC RI SATA SSD
Alternate Part Numbers: SSDSC2BB480G701 SSDSC2BB480G7P 867213-003
Cost-Effective Performance and Reliability
Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel Solid-State Drive Data Center S3520 Series. The Intel SSD DC S3520 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.
The Intel SSD DC S3520 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time.
Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3520 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.
Compatibility:
This drive is compatible with any system that accepts 2.5in x 7mm SATA drives.
Specification | |
---|---|
Intel Model Number | SSDSC2BB480G7P |
ESSENTIALS | |
Capacity | 480GB |
Form Factor | 2.5" 7mm |
Interface | SATA 3.0 6Gb/s |
Lithography Type | 16 nm 3D NAND |
PERFORMANCE | |
Sequential Read (up to) | 450 MB/s |
Sequential Write (up to) | 380 MB/s |
Random Read (8GB Span) (up to) | 65500 IOPS |
Random Write (8GB Span) (up to) | 16000 IOPS |
Latency - Read | 42 µs |
Latency - Write | 40 µs |
Power - Active | 3.2 W |
Power - Idle | 500 mW |
RELIABILITY | |
Vibration - Operating | 2.17 GRMS (5-700 Hz) |
Vibration - Non-Operating | 3.13 GRMS (5-800 Hz) |
Shock (Operating and Non-Operating) | 1000G/0.5ms |
Operating Temperature Range | 0°C to 70°C |
Endurance Rating (Lifetime Writes) | 95 TBW |
Mean Time Between Failures (MTBF) | 2 Million hours |
Uncorrectable Bit Error Rate (UBER) | 1 sector per 1017 bits read |
PACKAGE SPECIFICATIONS | |
Weight | 60 grams +/- 2 grams |
Form Factor | 2.5" 7mm |
Vibration - Operating | SATA 3.0 6Gb/S |
PACKAGE SPECIFICATIONS | |
Enhanced Power Loss Data Protection | Yes |
Hardware Encryption | AES 256 bit |
High Endurance Technology (HET) | No |
Temperature Monitoring and Logging | Yes |
End-to-End Data Protection | yes |
Intel Smart Response Technology | No |
Intel Rapid Start Technology | No |
Intel Remote Secure Erase | No |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BB480G701 867213-003 SSDSC2BB480G7
