KIOXIA Part #/MPN: KCM5XVUG1T60
DiscTech Item #: KIO-KCM5XVUG1T60-BN-OE-HPI
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 1.6TB
Speed: Solid State Memory
Interface Types: NVMe U.2, PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use

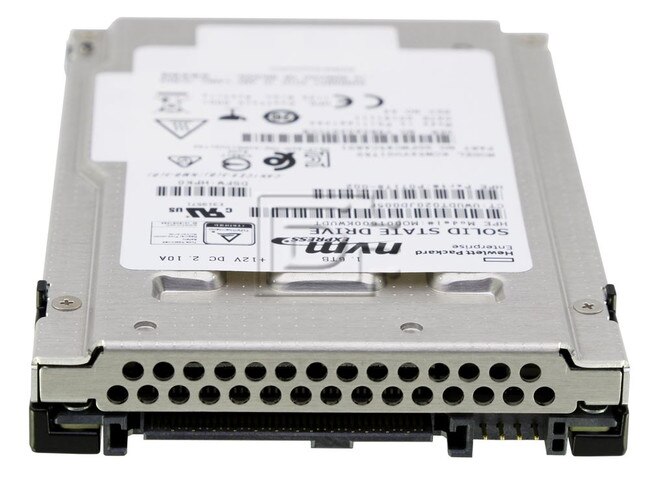

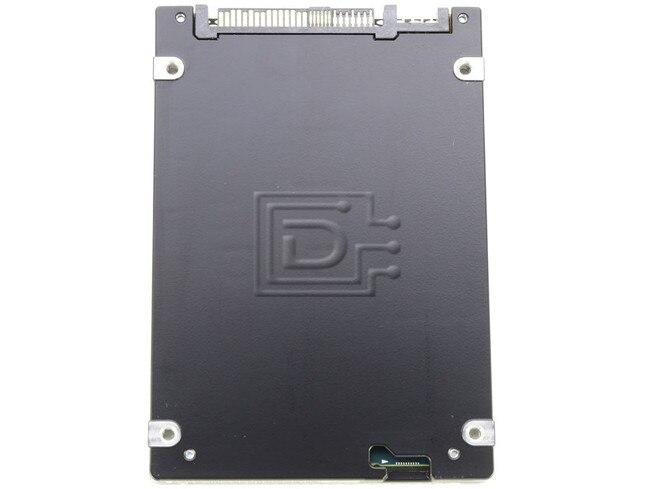

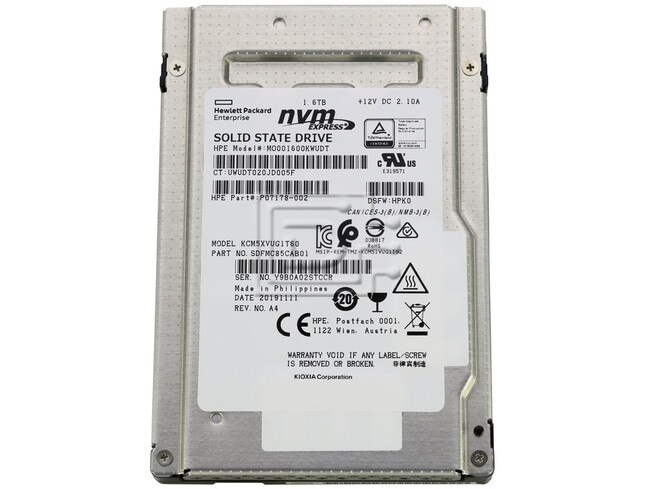

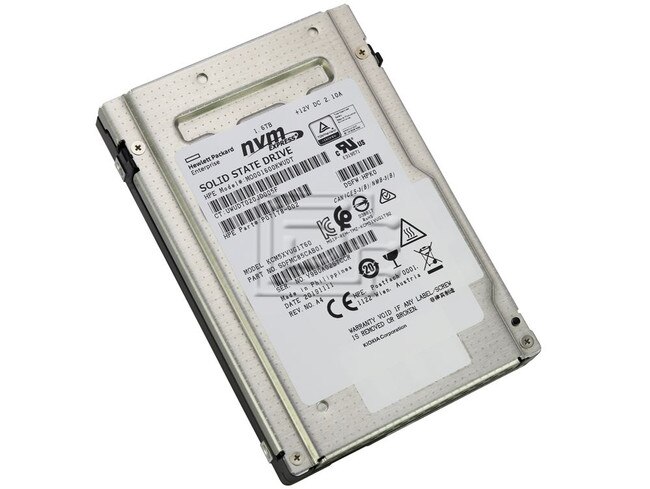

HPE P07178-002 / Toshiba Kioxia KCM5XVUG1T60 / MO001600KWUDT CM5-V Series 1.6TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Mixed-Use SSD - Brand New OEM
HPE P07178-002 / Toshiba Kioxia KCM5XVUG1T60 / MO001600KWUDT CM5-V Series 1.6TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Mixed-Use SSD - Brand New OEM
Toshiba Model Number: KCM5XVUG1T60
CM5-V SERIES - Enterprise NVMe™ Mixed Use SSD
MAIN SPECIFICATIONS
The CM5-V Series is a mixed-use SSD that is optimized to support broad range enterprise applications and associated workloads that that include High Performance Computing, Online Transaction Processing, IlT and Edge Computing, Media Streaming, etc. This NVMe series of CM5 SSDs, deliver excellent performance up to 770K IOPS (random read) and 165K IOPS (random write), with active power consumption of 16W.
Featuring Kioxia Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CM5-V SSDs deliver e DWPD (Drive Writes Per Day) of endurance and supports storage capacities up to 6.4TB making them ideally suited for read and write mixed-use enterprise applications.
KEY FEATURES
- PCIeⓇ Gen3 x4 interface with single/dual port support
- NVMeTM Rev. 1.3a compliant
- Capacities from 800GB to 6.4TB
- Up to 770K random read IOPS (single port (1x4) mode)
- Low power consumption of 16W maximum
- 2.5 inch small form factor, 15mm Z-Height
- 3 DWPD with 100% random write workload
- Power loss protection and end-to-end data protection, including T10 DIF
- Sanitize Instant Erase (SIE) option *Note 1,4
- Self-encrypting drive (SED) option *Note 2,4
- Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4
APPLICATIONS
- High performance computing (HPC) (financial trading, healthcare, and oil/gas exploration)
- Online transaction processing (OLTP) (transactional and relational databases)
- High-frequency trading (HFT)
- IoT, IIoT and Edge computing (automative, autonomous vehicles, transportations, smart cities and smart factories)
- Media Streaming (media and entertainment and video surveillance)
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.2 Drive) NVMe PCIe drives.
Similar & comparable to:
Intel SSDPE2KE016T701
Intel SSDPE2KE016T801
Samsung MZWLL1T6HAJQ-00005
| Toshiba Model Number | KCM5XVUG1T60 |
|---|---|
| Capacity | 1600GB / 1.6TB |
| Interface | PCIe Gen3 x4 NVMe Rev. 1.3a |
| Product Specification | |
| Sequential Read | 3250 MB/s |
| Sequential Write | 2460 MB/s |
| Random Read (100% Span) | 650000 IOPS |
| Random Write (100% Span) | 145000 IOPS |
| Power Requirement | |
| Supply Voltage | 12V +/- 10% | 3.3 Vaux +/- 15% |
| Power Consumption | 6.0 W Typ |
| Reliability | |
| MTTF | 2,500,000 hours |
| Mechanical | |
| Height (mm) | 15 + 0. -05 |
| Width (mm) | 69.85 +/- 0.25 |
| Length (mm) | 100.45 Max |
| Weight (g) | 130 Max |
| Environmental | |
| Temperature (Celcius) | 0 to 60 |
| Humidity (Operating) | 5% to 95 % R.H |
| Vibration (Operating) | 21.27m/s2 {21.17 Grms} {5 to 800Hz} |
| Shock (Operating | 9800m/s2 {1000G} {0.5ms duration} |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MO001600KWUDT P07178-002 SDFMC85CAB01
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
