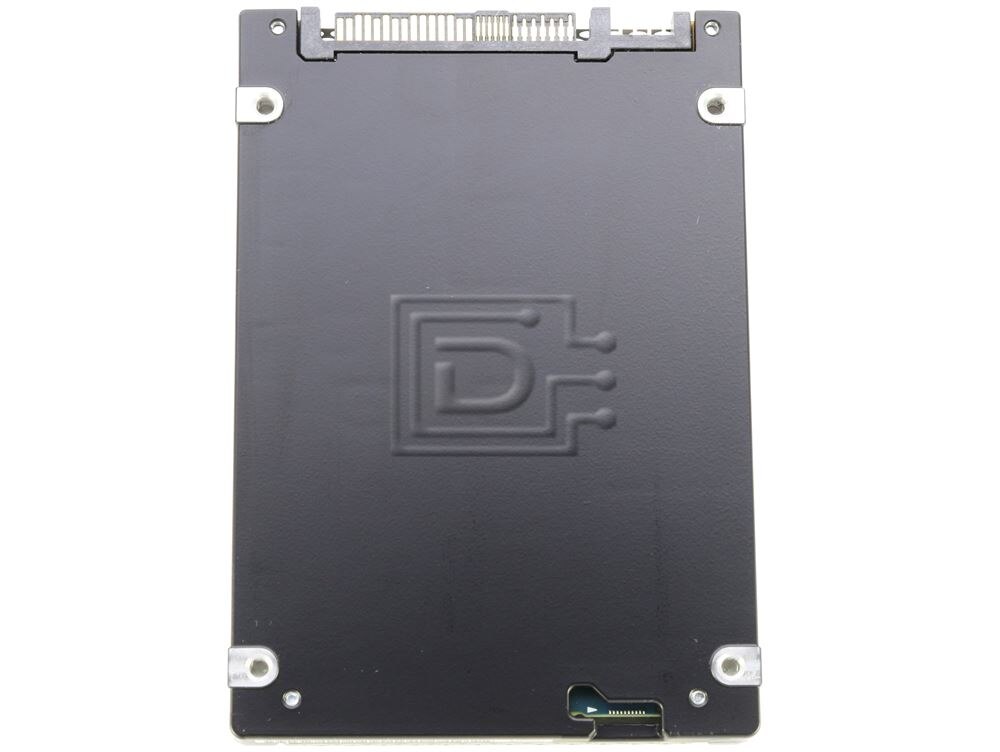

HPE P07178-002 / Toshiba Kioxia KCM5XVUG1T60 CM5-V Series 1.6TB 2.5" PCIe 3.0 x4 U.2 NVMe SSD


DiscTech Item #: KIO-KCM5XVUG1T60-RF-OE-HPI

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Mixed Use

HPE P07178-002 / Toshiba Kioxia KCM5XVUG1T60 / MO001600KWUDT CM5-V Series 1.6TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Mixed-Use SSD - Refurbished OEM

HPE P07178-002 / Toshiba Kioxia KCM5XVUG1T60 / MO001600KWUDT CM5-V Series 1.6TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Mixed-Use SSD - Refurbished OEM

Toshiba Model Number: KCM5XVUG1T60

CM5-V SERIES - Enterprise NVMe™ Mixed Use SSD


The CM5-V Series is a mixed-use SSD that is optimized to support broad range enterprise applications and associated workloads that that include High Performance Computing, Online Transaction Processing, IlT and Edge Computing, Media Streaming, etc. This NVMe series of CM5 SSDs, deliver excellent performance up to 770K IOPS (random read) and 165K IOPS (random write), with active power consumption of 16W.

Featuring Kioxia Corporation’s 64-layer BiCS FLASH™ 3D TLC memory, CM5-V SSDs deliver e DWPD (Drive Writes Per Day) of endurance and supports storage capacities up to 6.4TB making them ideally suited for read and write mixed-use enterprise applications.


  • PCIeⓇ Gen3 x4 interface with single/dual port support
  • NVMeTM Rev. 1.3a compliant
  • Capacities from 800GB to 6.4TB
  • Up to 770K random read IOPS (single port (1x4) mode)
  • Low power consumption of 16W maximum
  • 2.5 inch small form factor, 15mm Z-Height
  • 3 DWPD with 100% random write workload
  • Power loss protection and end-to-end data protection, including T10 DIF
  • Sanitize Instant Erase (SIE) option *Note 1,4
  • Self-encrypting drive (SED) option *Note 2,4
  • Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4


  • High performance computing (HPC) (financial trading, healthcare, and oil/gas exploration)
  • Online transaction processing (OLTP) (transactional and relational databases)
  • High-frequency trading (HFT)
  • IoT, IIoT and Edge computing (automative, autonomous  vehicles, transportations, smart cities and smart factories)
  • Media Streaming (media and entertainment and video surveillance)


This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.2 Drive) NVMe PCIe drives.

Similar & comparable to:

Intel SSDPE2KE016T701

Intel SSDPE2KE016T801

Samsung MZWLL1T6HAJQ-00005

Toshiba Model NumberKCM5XVUG1T60

Capacity1600GB / 1.6TB
InterfacePCIe Gen3 x4 NVMe Rev. 1.3a
Product Specification
Sequential Read3250 MB/s
Sequential Write2460 MB/s
Random Read (100% Span)650000 IOPS
Random Write (100% Span)145000 IOPS
Power Requirement
Supply Voltage12V +/- 10% | 3.3 Vaux +/- 15%
Power Consumption6.0 W Typ
MTTF2,500,000 hours
Height (mm)15 + 0. -05
Width (mm) 69.85 +/- 0.25
Length (mm)100.45 Max
Weight (g)130 Max
Temperature (Celcius)0 to 60
Humidity (Operating)5% to 95 % R.H
Vibration (Operating)21.27m/s2 {21.17 Grms} {5 to 800Hz}
Shock (Operating9800m/s2 {1000G} {0.5ms duration}

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: MO001600KWUDT P07178-002 SDFMC85CAB01
