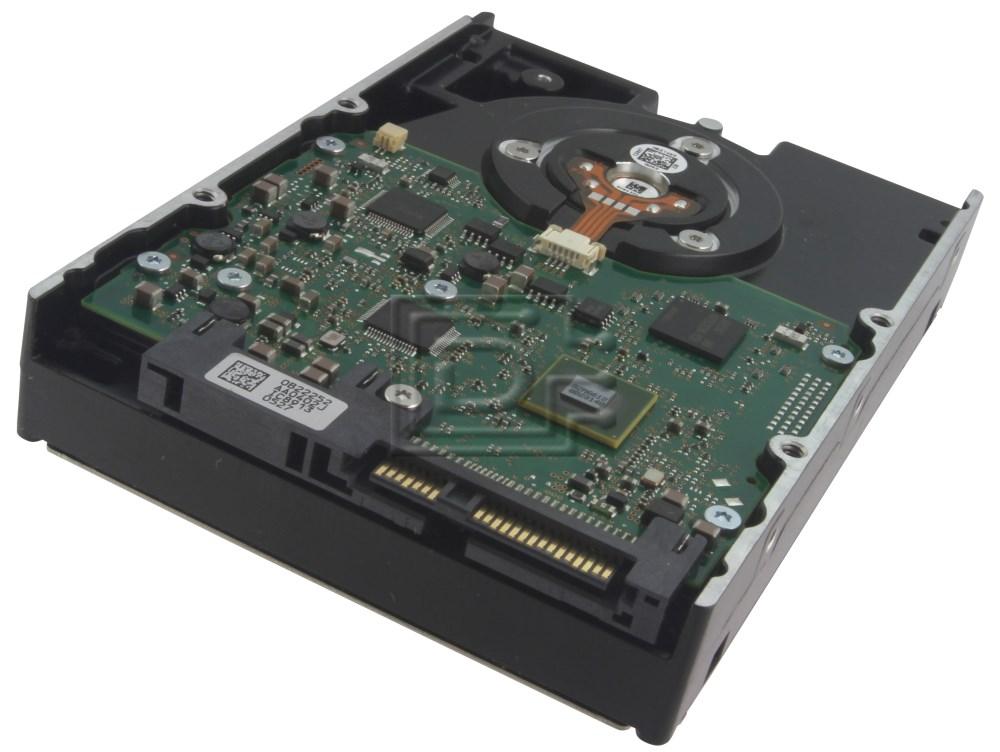

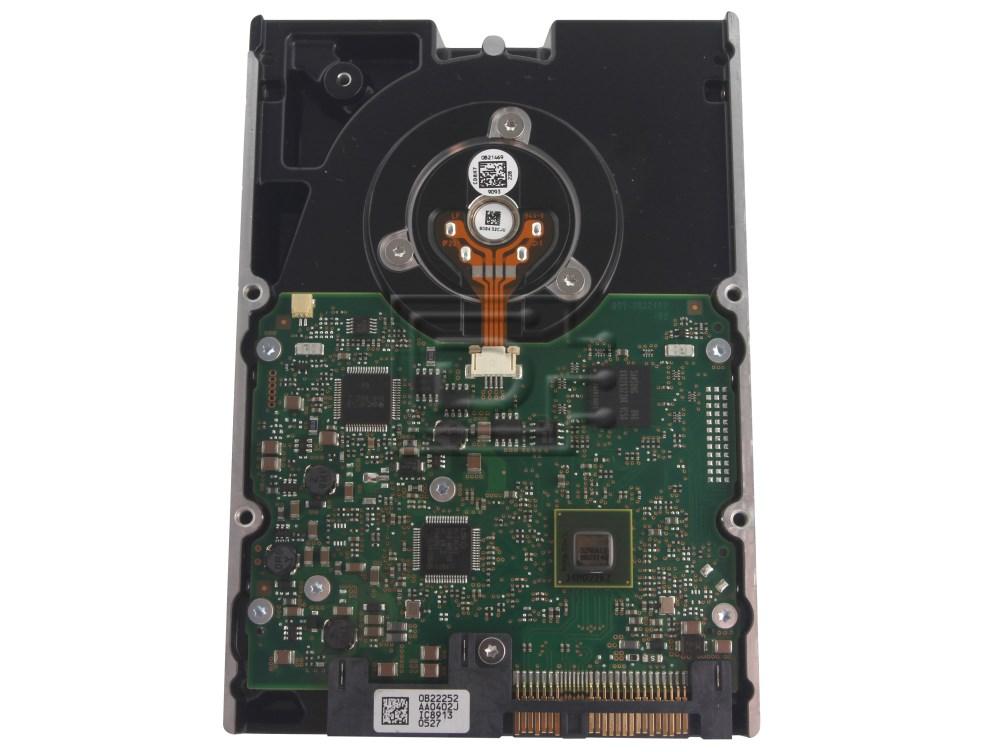

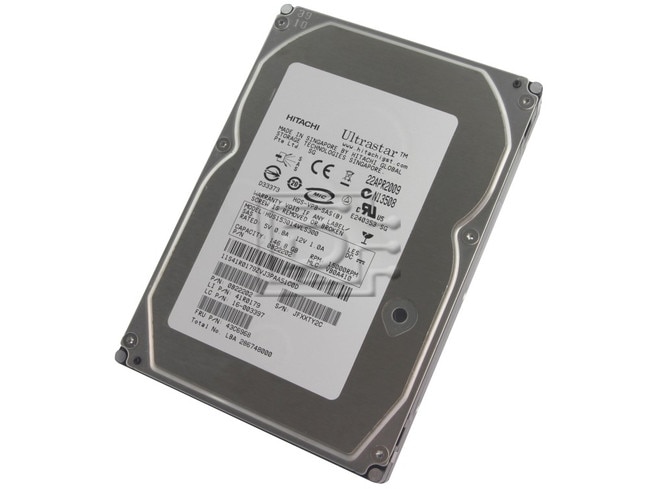

Hitachi 0B22202 146GB SAS Hard Drive

HGST 0B22202 HUS153014VLS300 15K300 SAS Hard Drive Image 1 imageHGST 0B22202 HUS153014VLS300 15K300 SAS Hard Drive Image 2 imageHGST 0B22202 HUS153014VLS300 15K300 SAS Hard Drive Image 3 image
  • Special Order - Ships in 5-10 business days
  • 1 Year DiscTechWarranty
$45.00

Capacity:146GB
Speed:15K RPM
Interface Types:SAS
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SAS-1 3Gbps
RAM:16MB
Click to see more 146GB SAS 15K RPM Drives

Description

Hitachi 0B22202 / HUS153014VLS300 146GB 3.5in 3Gbps 15K RPM Enterprise UltraStar 15K300 SAS HDD - Refurbished

Hitachi 0B22202 / HUS153014VLS300 146GB 3.5" 3.0 Gbps 15,000 RPM Enterprise UltraStar 15K300 Serial Attached SCSI Hard Disk Drive - Refurbished

Alt MPN:HUS153014VLS300

Outline of the Drive

  • Storage capacities of 146 GB
  • 3 Gb/s SAS interface
  • Supports dual-ported operations
  • Supports full duplex (supports full duplex operations) operations
  • Variable sector size (512 - 528 in multiples of four)
  • Tagged Command Queuing support
  • Automatic read/write data transfer
  • 3.4 ms seek time in read operation for 146 GB
  • Adaptive read ahead algorithm
  • Write Cache
  • Back to back write
  • ECC On The Fly correction
  • Automatic defect reallocation
  • Self diagnostics at power on
  • Closed loop actuator servo
  • Non head disk contact start/stop
  • 15,000 RPM spindle rotation speed
  • Automatic actuator lock
  • PFA (S.M.A.R.T.)
  • ANSI T10 Protection Information (End-to-End)

Compatibility

This drive is compatible with any server that accepts 3.5"x1.0in (Large Form Factor) SAS drives.

Specifications

SPECIFICATIONS
Model Number0B22202
Alt Model NumberHUS153014VLS300
Label Capacity146GB
Number of Heads4
Number of Disks2
Total Data Bytes (512 Bytes/Sector)147,015,821,824
Total Logiacal Data Blocks287,140,277 (111D69B5)
DATA SHEET
Buffer to/from Media864 - 1441 [Mb/sec]
Host to/from Buffer (interface transfer rate)3.0 Gb/s
Data Buffer Size16MB
Number of Buffer Segments1 - 254
Rotational Speed15,000 RPM
Recording Density824.5[Kbpi](Max)
Track Density137,000[TPI] (average)
Areal Density 113 [Gb/sq. in.]
Data Zone20)
MECHANICAL POSITIONING
Average Seek Time (including settling)(typical ms)
Read
Write
3.4
3.8
Average Seek Time (including settling)(max)
Read
Write
4.6
5.1
Full Stroke Seek Time(typical ms)
Read
Write
6.5
6.8
Full Stroke Seek Time (max)
Read
Write
11.0
11.6
Latency Time
Rotation
Time for a Revolution (ms)
Average Latency (ms)
15,000 RPM
4.0
2.0
Drive Time Ready Time
Typical (sec)
Maximum (sec)
11.5
29.9
Spindle Stop Time
Typical (sec)
Maximum (sec)
7.0
20
OPERATING CONDITIONS
Ambient Temperature5°C to 55°C
Relative Humidity5 to 90%, non-condensing
Maximum Wet Bulb Temperature29.4°C, non-condensing
Maximum Surface Temperature Gradient20°C/hour
Altitude-305 to 3,048 m
SHIPPING CONDITIONS
Ambient Temperature-40°C to 70°C
Relative Humidity5 to 95%, non-condensing
Maximum Wet Bulb Temperature35°C, non-condensing
Maximum Surface Temperature Gradient30°C/hour
Altitude-305 to 12,192 m
OPERATING CONDITIONS
Ambient Temperature0°C to 65°C
Relative Humidity5 to 90%, non-condensing
Maximum Wet Bulb Temperature35°C, non-condensing
Altitude-305 to 12,192 m
PHYSICAL DIMENSIONS
Height (mm/in)26.1/1.027
Width (mm/in)102.85/4.049
Length (mm/in)147.0/5.787
Weight (g/lb)714/1.574
ACOUSTICS
Idle
Typical
Maximum
3.5
3.8
Operating
Typical
Maximum
4.3
4.7
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUS153014VLS300 15K300

Weight: 1.8 lb

Warranty: 1 Year DiscTech
