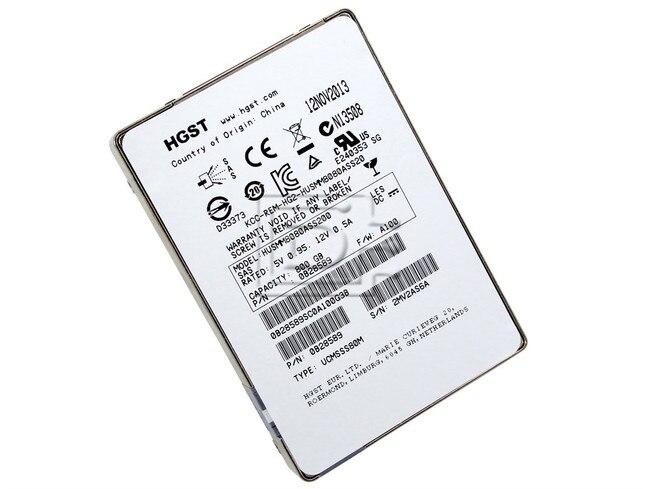

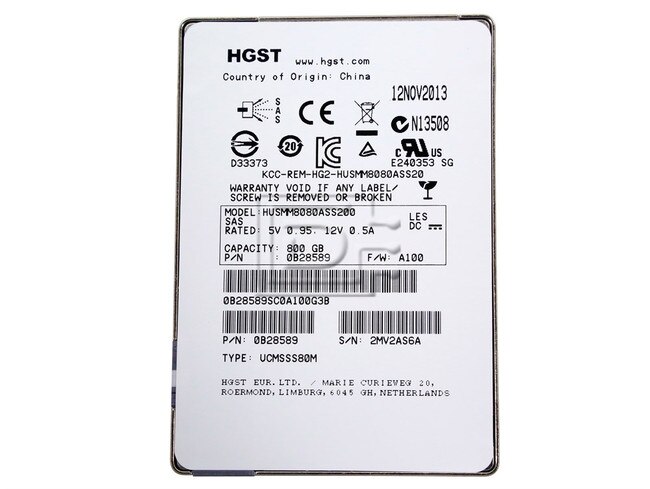

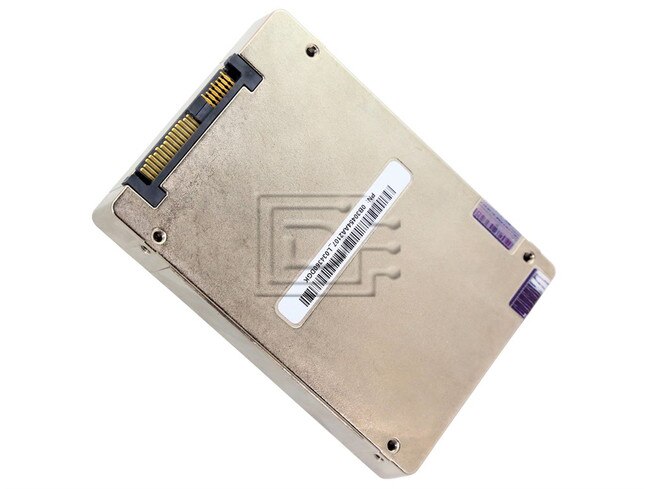

Hitachi 0B28589 800GB SAS Solid State Drive

Hitachi Part #/MPN: 0B28589

DiscTech Item #: HIT-0B28589-NP-OE


$429.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$429.00

Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 1150/700

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Write Intensive

Hitachi Ultrastar SSD800MM 0B28589 / HUSMM8080ASS200 800GB 2.5 inches SFF 12Gbps MLC WI SAS SSD - New Pull

Hitachi Ultrastar SSD800MM 0B28589 / HUSMM8080ASS200 800GB 2.5" SFF / Small Form Factor 12.0 Gb/s Multi Level Cell Write Intensive 51.2 Drive Writes Per Day Serial Attached SCSI Solid State Disk Drive - New Pull

Ultrastar SSD800MM

Maximum Performance, Reliability and Endurance
The Ultrastar SSD800MM delivers high sequential throughput, up to 1200MB/s read and 700MB/s write (12Gb/s SAS). The Ultrastar SSD800MM also delivers up to 145,000 read and 70,000 write IOPS, reaching speeds >100 times faster than HDDs and double the speed of current 6Gb/s SSDs, allowing rapid access to “hot” enterprise data for improved productivity and operational efficiency. The Ultrastar SSD800MM family offers significant value in terms of IOPS per Watt, while reducing total cost of ownership (TCO) through low power consumption, efficient cooling and reduced space requirements.

The Ultrastar SSD800MM family combines enterprise-grade MLC NAND flash memory, advanced endurance management firmware and power loss data management techniques to extend reliability, endurance, and sustained performance over the life of the SSD. The Ultrastar SSD800MM family achieves an extraordinary 0.44% annual failure rate (AFR) or two million hour mean-time-between-failure (MTBF). The 800GB capacity model endures up to 14.6 Petabytes (PB) of random writes over the life of the drive—the equivalent of writing 8 Terabytes (TB) per day for five years.

For complete end-to-end data protection and reliability, the Ultrastar SSD800MM family incorporates the T10 Data Integrity Field (DIF) standard, extended error correction code (ECC), Exclusive-OR (XOR) parity to protect against flash die failure, parity-checked internal data paths without an external write cache, and an exclusive power loss data management feature that does not require supercapacitors. The Ultrastar SSD800MM family is backed by a five year limited warranty, or the maximum Petabytes (PB) written (based on capacity).

HGST Enterprise Storage Experience
HGST leverages decades of proven enterprise storage expertise in Serial Attached SCSI (SAS) design reliability, firmware, customer qualification and system integration to the Ultrastar® SSD800MM solid-state drive (SSD) family. The synergistic relationship between HGST’s throughputenhancing SSDs and traditional HDDs provides cost effective, end-to-end enterprise-class storage solutions, delivering reliability, compatibility, capacity, cost and system performance. This combination makes HGST a leading SSD/ HDD provider with the experience and technology needed to meet escalating reliability, endurance and performance in the most demanding enterprise environments.

HGST Quality and Service
HGST’s Ultrastar SSD800MM family extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data.

HGST drives are backed by an array of technical support and services, which may include customer and integration assistance. HGST is dedicated to providing a complete portfolio of SSD/HDD solutions to satisfy today’s monumental computing needs.

Highlights

  • MLC NAND Flash for ultra-high performance and endurance
  • Endurance: 10 drive writes per day (DW/D) for five years
  • Best IOPS/Watt for reduced TCO
  • 12Gb/s SAS interface for maximum throughput
  • Advanced power loss data management technology
  • Self-encrypting models conform to TCG’s Enterprise specification

Applications/Environments

  • Ultra-high performance tier-0 enterprise storage
  • Enterprise-class servers and high performance computing
  • Space and/or power constrained environments
  • Online Transaction Processing (OLTP)
  • Video pre/post-production
  • Financial and e-commerce
  • Database analytics


Compatibility:

This drive is compatible with laptops that accept 2.5" x 15mm SFF SAS drives.

15.0 tr>15.0
Ultrastar SSD800MM
Model Number0B28589
Alt Model NumberHUSMM8080ASS200
Configuration
InterfaceSAS
Xapacity (GB) at 512 bytes / sector800GB
Flash memory technologyMulti Level Cell (MLC)
Performance
Read throughput (max MB/s, sequential 64K)1150
Write throughput (max MB/s, sequential 64K)700
Read IOPS (max IOPS, random 4K)145,000
Write IOPS (max IOPS, random 4K)70,000
Reliability
Error rate (non-recoverable, bits read)1 in 10^17
MTBF (M hours)2.0
Availability (hrs/day x days/wk)24x7
Endurance (max PB , random write)14.655
Power
Requirements
  • +5 VDC (+/-5%)
  • +12VDC (+/-5%)
  • Operating (W)9.0 and 11.0
    Idle (W)2.2
    Physical
    z-height (mm, max)
    Power
    Dimensions (width x depth, mm)70.1 x 100.6
    Weight (g, typical)164
    Environmental (operating)
    Ambient temperature
    Power
    Shock (half-sine wave)1000G (0.5 ms)
    500G (2ms)0o to 60 C°
    Vibration, random (G RMS)2.16, all axes (5 to 7000 Hz)

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: HUSMM8080ASS200

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    New Pull

    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
