Hitachi Part #/MPN: 0F12450
DiscTech Item #: HIT-0F12450-FR-2Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:2 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 3TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

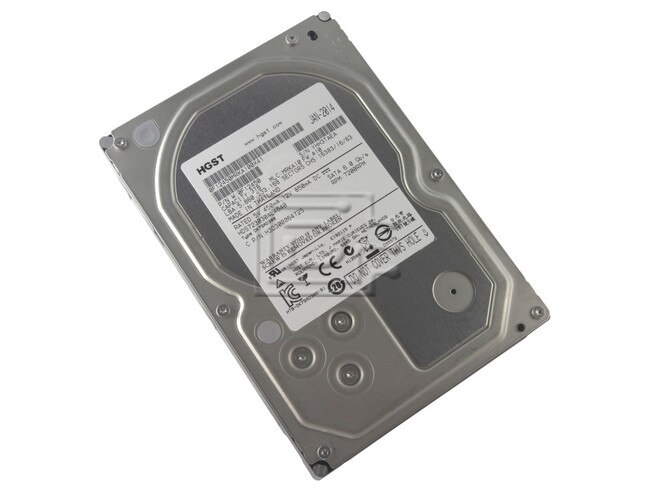

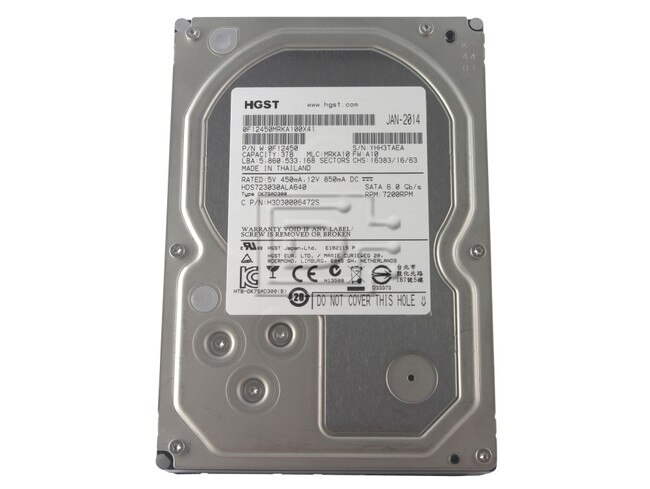

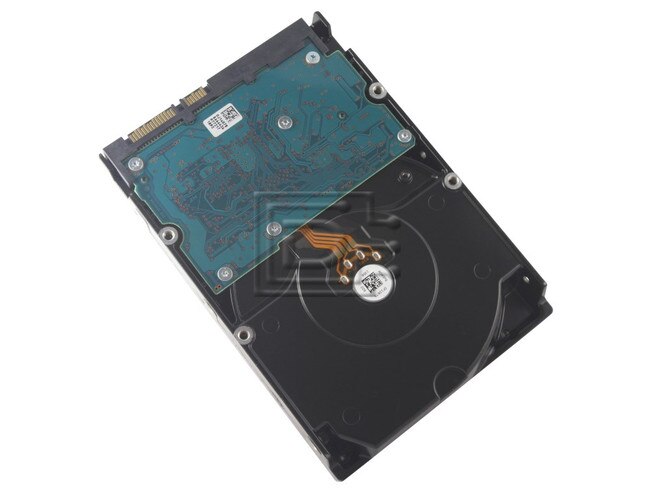

Hitachi Deskstar 7K3000 0F12450 / HDS723030ALA640 3000GB / 3TB 7.2K SATA Hard Drive - Factory Refurbished
Highest capacity and reliability with a proven design
The Deskstar™ 7K3000 is Hitachi’s first hard drive to deliver an enormous three terabytes of storage capacity and 7200 RPM performance in a standard 3.5-inch form factor. The 7K3000 is also the first Hitachi hard drive with a 6Gb/s SATA interface, which along with its 64MB cache buffer delivers a big boost to performance over the previous generation product. The Deskstar 7K3000 is designed to allow manufacturers to leverage the benefits of the latest components and operating systems to deliver high-performance, high-capacity, power-efficient systems. Manufacturers planning to use the highest capacity 3TB drive in systems should consult the Hitachi High Capacity Technology Brief. Deskstar 7K3000 is also available in 2TB and 1.5TB models that accommodate existing systems, as well as new designs. .
Hitachi p/n: 0F12450 / HDS723030ALA640
Compatibility:
Manufacturers planning to use the highest capacity 3TB drive in systems should consult the Hitachi High Capacity Technology Brief.
Model(s) | HDS723030ALA640 HDS723020BLA642 HDS723015BLA642 | ||||
Interface | SATA 6Gb/s | ||||
Capacity (GB) | 3TB / 2TB / 1.5TB | ||||
Sector size (variable, Bytes/sector) | 512 | ||||
Max areal density (Gbits/sq. in.) | 411 | ||||
Performance | |||||
Data buffer (MB) | 64 | ||||
Rotational Speed (RPM) | 7200 | ||||
Media transfer rate (Mbits/sec, max) | 1656 | ||||
Interface transfer rate (MB/sec, max) | 600 | ||||
Reliability | |||||
Error Rate (non-recoverable, bits read) | 1 in 1014 | ||||
Load/Unload Cycles | 3TB: 600,000 <3TB: 300,000 | ||||
Availability (hrs/day x days/wk) | 24x7 | ||||
Acoustics | |||||
Idle (Bels) | 3TB: 2.9 <3TB: 2.7 | ||||
Power | |||||
Requirement | 3TB: +5 VDC (+/-5%) +12 VDC (+10%/-8%) <3TB: +5 VDC (+/-5%) +12 VDC (+/-10%) | ||||
Requirement: Start-up (W, peak, max) | 1.2 (+5V), 2.0 (+12V) | ||||
Performance Idle | 3TB: 6.8 <3TB: 5.2 | ||||
Physical size | |||||
Z-height (mm) | 26.1 | ||||
Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 | ||||
Weight (g, max) | 3TB: 690 <3TB: 680 | ||||
Environmental (operating) | |||||
Ambient temperature | 3TB: 5º to 60º C <3TB: 0º to 60º C | ||||
Relative Humidity | 8% to 90% | ||||
Shock (half-sine wave) | 70 | ||||
Vibration | 0.67 (XYZ) (G RMS 5 to 500Hz) | ||||
Environmental (non-operating) | |||||
Ambient temperature | -40º to 70ºC | ||||
Relative Humidity | 5% to 95% | ||||
Shock (half-sine wave) | 3TB: 300 (1ms) <3TB: 300 (2ms) | ||||
Vibration | 1.04 (XYZ) (G RMS 2 to 200Hz) |
Capacity - One GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computer’s operating system, and other factors.
Data Buffer - Portion of buffer capacity used for drive firmware
Availability - Intended for low duty cycle, non mission-critical applications in PC, gaming and external storage environments, which may vary from application to application. Note that customer environments may vary from application to application.
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HDS723030ALA640
Weight: 1.8 lb
Warranty: 2 Year Manufacturer
