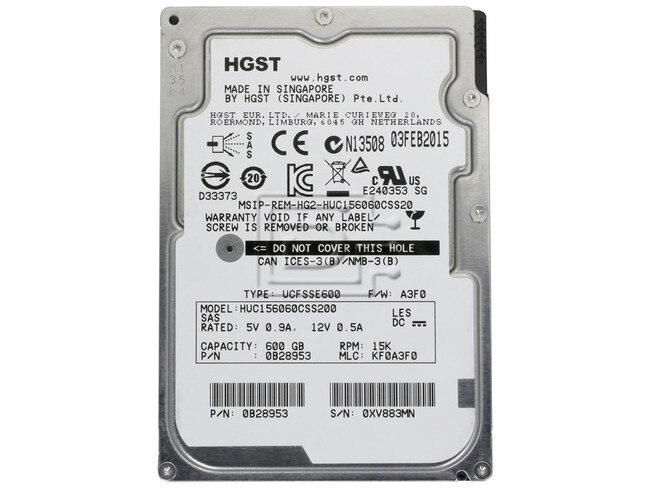

Hitachi HUC156060CSS200 600GB 15k 2.5" SAS Hard Drive

Hitachi Part #/MPN: HUC156060CSS200

DiscTech Item #: HIT-HUC156060CSS200-RF-OE-EMF


Enterprise Grade

Capacity: 600GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 175 to 250

Average Seek Time: 2.9 / 3.1

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Hitachi HUC156060CSS200 600GB 2.5 inch 12Gbps 15K RPM Ultrastar C15K600 Enterprise SAS HDD / 0B28953 - Refurbished

Hitachi HUC156060CSS200 600GB 2.5" 12.0 Gbps 15,000 RPM Ultrastar C15K600 Enterprise Serial Attached SCSI Hard Disk Drive - Refurbished

Additional MPN: 0B28953


This drive is compatible with any server that accepts 2.5in x 15mm (SFF Server Hard Drive) SAS Drive.

Ultrastar C15K600
Model NumberHUC156060CSS200
Physical size
Environmental (operating)
Environmental (non-operating)
Alt Model NumberHUC156060CSS200
InterfaceSAS 12Gb/s
Capacity (GB)600GB
Sector size (variable, bytes/sector)512-Byte (512n)
Recording zones40
Data heads (physical)6
Data disks3
Max. Areal density (Gbits/sq. in)528
Data buffer (MB)128
Rotational speed (RPM)15,030
Latency average (ms)<2.0
Interface transfer rate (MB/s, max)1200
Sustained transfer rate (MB/s, typical)175 to 250
Seek time (read, ms, typical)2.9/3.1
Error rate (non-recoverable, bits read)10 in 10e17
MTBF (M hours)2.0
Availability (hrs/day x day/wk)24x7
Idle (Bels, typical)3.2
Requirement+5 VDC (+/-5%), +12 VDC (+/-5%)
Operating (W, typical)7.5
Idle (W)5.8
Idle efficiency (Watt/GB)0.0096
z-height (mm)14.8
Dimensions (width x depth, mm)70.1 x 100.45
Weight (, max)219
Ambient temperature5° to 55° C
Shock (half-sine wave, 2ms, read operation)60G
Vibration, random, no errors (G RMS 5 to 500 Hz)0.4, all axes
Ambient temperature-40° to 70° C
Shock (half-sine wave, 2ms)>300G
Vibration (RMS 5 to 500 Hz)1.5, all axes

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
