Seagate Part #/MPN: ST600MP0005
DiscTech Item #: SGT-ST600MP0005-RF-OE-DEP
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 233 to 160
Average Seek Time: 2.0
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB
Hybrid SSD Cache: 32GB/MLC NAND

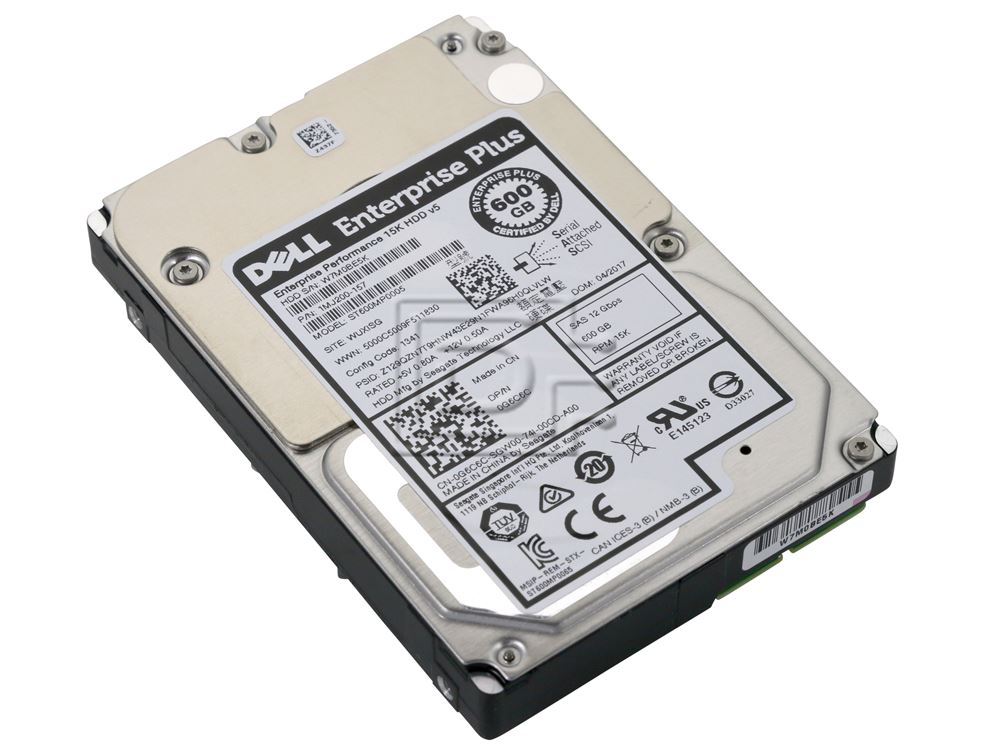

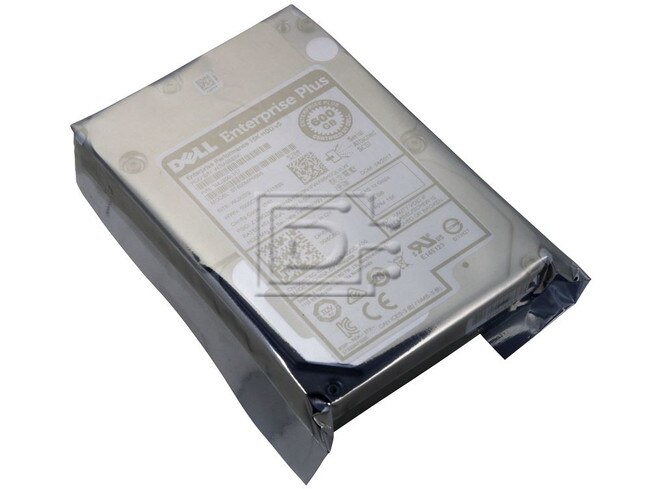

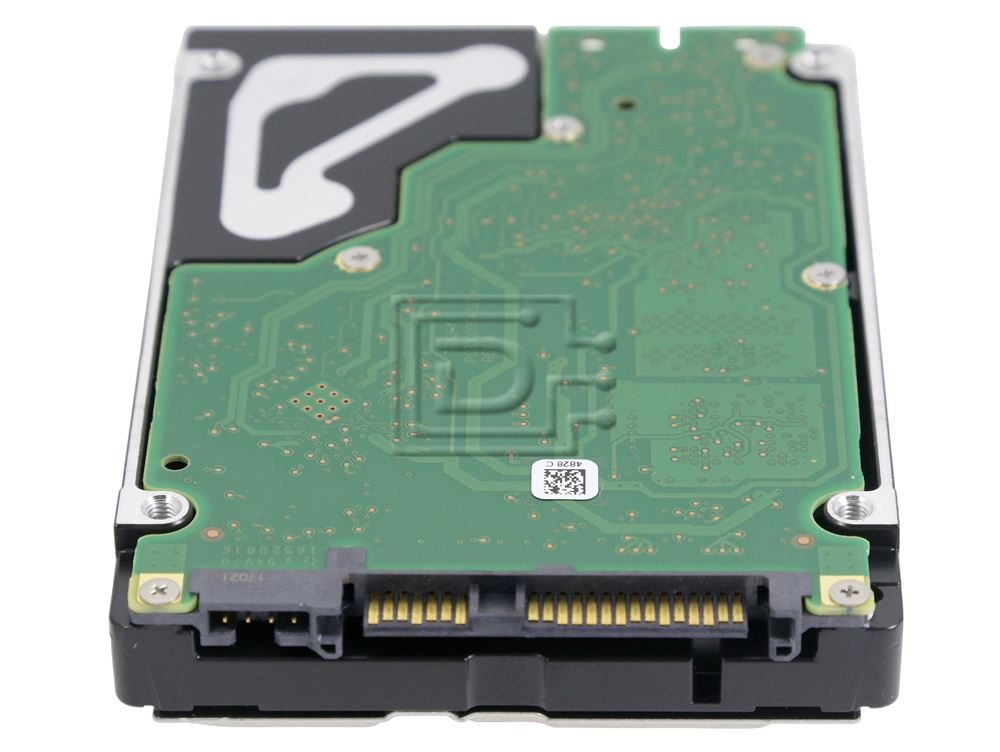

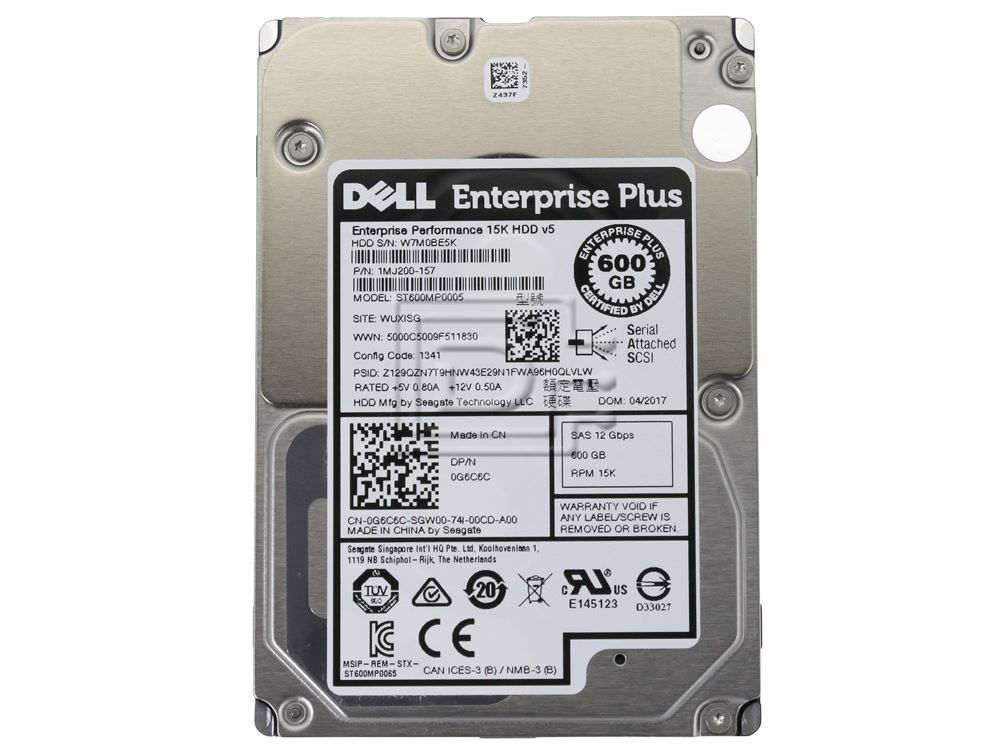

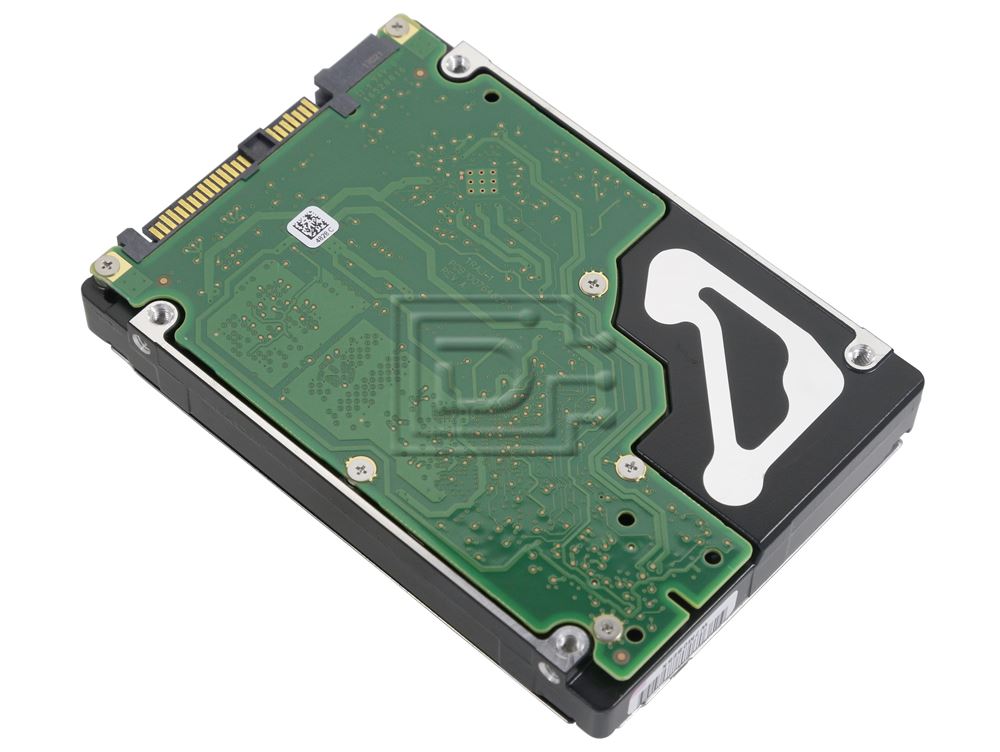

Dell Equallogic G6C6C / Seagate ST600MP0005 600GB 2.5" 6Gbps 15K RPM eMLC Enterprise Plus SAS Hybrid Hard Drive - Refurbihsed OEM
ALT PN: 1MJ200-157
DPN: 0G6C6C, G6C6C
Dell Equallogic Enterprise Plus Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
- Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
- Latest 12Gb/s SAS interface for improved scalability
- Industry’s highest MTBF at 2.0M hours
- Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
- Provides up to 18% improvement in SDR performance over prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
Designed for Dell Equallogic & Dell Compellent systems.
SPECIFICATIONS | |
---|---|
Model Number | ST600MP0005 |
Specification | 512 Native |
Capacity | 600GB |
Interface | 12Gb/s SAS |
PERFORMANCE | |
Average Latency (ms) | 2.0 |
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s | 233 to 160 |
Max. Instantaneous Transfer Rate (SAS dual port) MB/s | 2400 |
Cache, Multisegmented (MB) | 128 |
TURBOBOOST ENHANCED CACHE | |
NAND Flash Type | eMLC |
NAND Flash Size | 32GB |
Mixed-Workload Performance (IOPS, compared to standard model) | up to 3x |
CONFIGURATION/RELIABILITY | |
Disks/Heads | 3/6 |
Nonrecoverable Read Errors per Bits Read, Max | 1 per 10e16 |
Annualized Failure Rate (AFR) | 0.44% |
POWER MANAGEMENT | |
Typical Op (A) +5V/+12V | 0.44/0.54 |
Average Idle Power (W) | 5.3 |
Average Operating Power (W) | 8.7 |
ENVIROMENTAL | |
Ambient Temperature, Operating (C°) | 5 to 55 |
Ambient Temperature, Nonoperating (C°) | -40 to 70 |
Temperature Change Rate/Hr, Max (C°) | 20 |
Relative Humidity, Noncondensing (max gradient 20% hour) | 5% to 95% |
Shock, Max Operating: 11ms (Gs) | 40 |
Shock, Max Nonoperating: 2ms (Gs) | 400 |
Vibration, Operating: <400Hz (Gs) | 0.5 |
Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
PHYSICAL | |
Height (in/mm, max) | 0.591/15.00 |
Width (in/mm, max) | 2.750/69.85 |
Depth (in/mm, max) | 3.955/100.45 |
Weight (lb/kg) | 0.507/0.230 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: G6C6C 0G6C6C 1MJ200-157
Weight: 1.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
