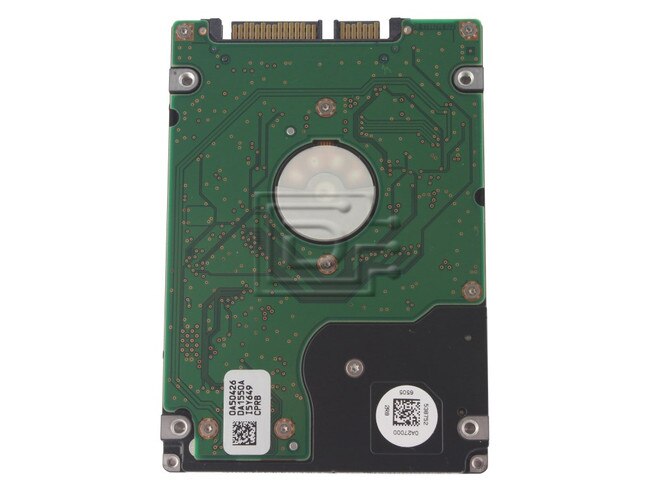

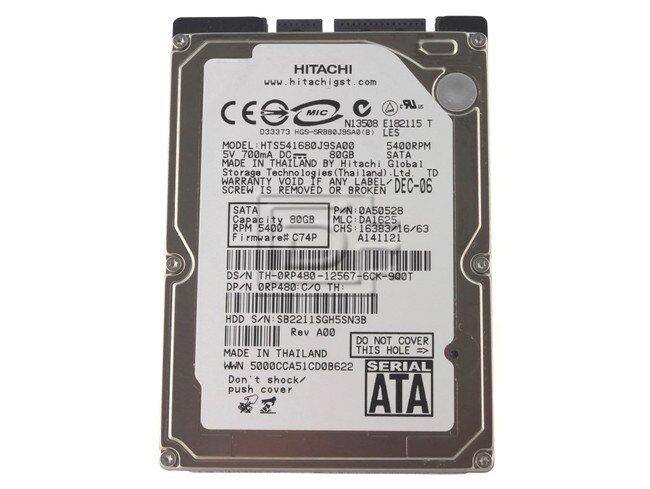

Hitachi Travelstar 5K320 0A50528 SATA Hard Disk Drive

HGST Part #/MPN: 0A50528

DiscTech Item #: HIT-0A50528-RF-OE-DEL


$75.00
$75.00

Capacity: 80GB

Speed: 5.4K RPM

Interface Types: SATA

Form Factor: 2.5" x 9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 11

Electrical Interface: SATA 150 - 1.5Gbps

On-Board Cache: 8MB

Hitachi Travelstar 5K320 0A50528 / HTS541680J9SA00 80GB 5.4K 2.5" SATA Hard Drive  - Refurbished OEM

Reliable, high-capacity storage for mobile applications

Travelstar™ 5K320 is a 5400 RPM 2.5-inch hard drive with capacities ranging from 80GB to 320GB. The 160GB per platter one- and two-disk models are designed for use in notebook PCs, set-top boxes, gaming consoles and other mobile applications. The 5K320 raises the standard for hard drive reliability with design enhancements that include altitude-sensing Thermal Fly-height Control (TFC), an improved actuator latch and fourth generation perpendicular magnetic recording (PMR) head technology. Along with the attention to ruggedness, Hitachi continues to deliver excellent performance and low-power leadership. Designed to support the multi-tasking needs of consumers and commercial users balancing mobile computing and movies, music, photos and games on the go, Travelstar 5K320 delivers the right capacity and performance options to meet the needs of IT and consumer electronics manufacturers. Hitachi offers optional hard-drive-level encryption for users looking for increased data security and models with enhanced availability to deliver high-capacity storage for non-stop environments.

Hitachi p/n: HTS543280L9A300 RP480 0RP480


Compatibility:

Fully compatible with new Dell, IBM, HP & Compaq laptops that use 2.5" SATA drives. e.g. Dell D600, D610, D620, D640, D800, D810, D820, D840; HP  nc6220, nc6320, nx6325, nc6400, nx7300, nx7400,  nc8430, nw8440, nw9440, nx9420  nc2400 and nc4400.


Specifications
Model number 0A57281 / HTS543280L9A300
Model Name Travelstar
Formatted Capacity 80 Gbytes
Rotational Speed 5,400 rpm
Default Buffer (cache) Size 8 Mbytes
Performance
External (I/O) Transfer Rate (max) 150 MBytes/sec
Average Seek Time, Read 11 msec typical
Track-to-Track Seek, Read 1 msec typical
Average Latency 4.2 msec
Physical
Form Factor(width) 2.5-inch
Height 9.5 mm
Width 70 mm
Length 100 mm
Weight 95 g
Electrical
Power (Typical)1.8 watts
Power (Idle).80 watts
Startup 5.0 watts

Click here to view the manufacturer's item description/brochure

Alternate MPNs: HTS543280L9A300 RP480 0RP480

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Refurbished

1 Year DiscTech Warranty
