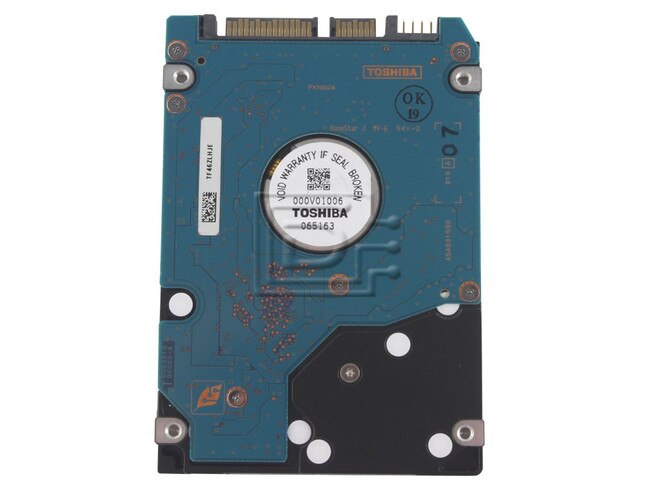

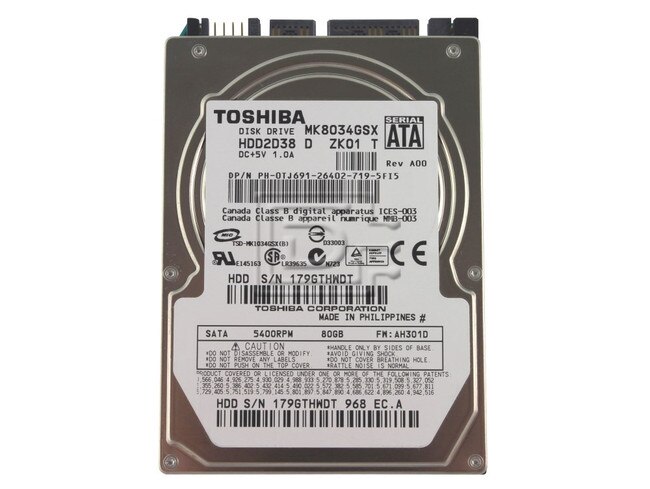

Toshiba MK8034GSX SATA Hard Drive

Toshiba Part #/MPN: MK8034GSX

DiscTech Item #: TOS-MK8034GSX-RF-OE-DEL


$50.00
$50.00

Capacity: 80GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 12

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 8MB

Toshiba MK8034GSX 80GB 5.4K 2.5-inch SATA Laptop Hard Drive - Refurbished OEM

Toshiba America Information Systems, Inc. (TAIS), Storage Device Division introduces the MK8034GSX 2.5-inch 80GB Hard Disk Drive. The MK8034GSX offers the industries highest areal density per platter, at 146.9 gigabits per square inch. The drive's 5400 RPM motor speed, improves system-level performance by as much as 12 percent when compared to 4200 RPM.

This new drive offers enough capacity for portable video recording and editing, with lower power consumption compared to the traditional 3.5-inch hard disk drives. This functionality provides ideal storage for a range of commercial and consumer notebooks, as well as non-PC applications such as PDAs, printers, copiers, GPS systems and MP3 players. The MK8034GSX incorporates the Serial ATA interface and is ATA-7 compliant, -supporting high transfer rates of up to 150 megabytes per second.

Alternate PN: TJ691 / 0TJ691


Compatibility:

This drive is compatible with any laptop/computer that uses 2.5" SATA hard drives.

Specifications
Model number MK8034GSX
Rotational Speed 5,400 rpm
Default Buffer (cache) Size 8 Mbytes
Number of Discs (physical) 2
Number of Heads (physical) 3
Performance
External (I/O) Transfer Rate (max) 150 Mb/sec
Average Seek Time12 msec typical
Track-to-Track Seek2 msec typical
Average Latency 5.55 msec
Physical
Form Factor(width) 2.5-inch
Height 9.5 mm
Width 69.85 mm
Length 100 mm
Weight 101 g
Electrical
Power (Typical)2.5 watts
Power (Idle)1.0 watts
Startup Current 4.5 w
Environmental
Max Operating Shock (2-msec) 325 Gs
Max Nonoperating Shock (2-msec) 850 Gs
Operating Vibration (max) 1.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 60 deg C
Nonoperating Temperature (min) -20 deg C
Reliability
MTTF (Hours) 300,000 hours
Nonrecoverable Read Errors 1 per 10^13 bits read

Click here to view the manufacturer's item description/brochure

Alternate MPNs: TJ691 0TJ691

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
