Hitachi Ultrastar 0B25659 600GB Enterprise SAS Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 600GB |
| Speed: | 10K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 64MB |
Description

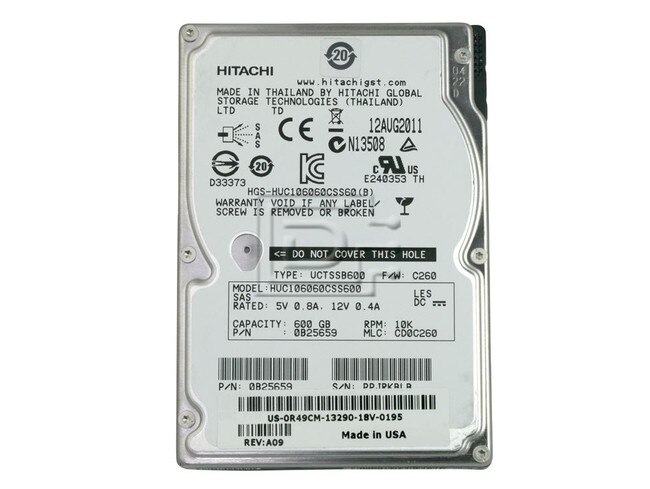

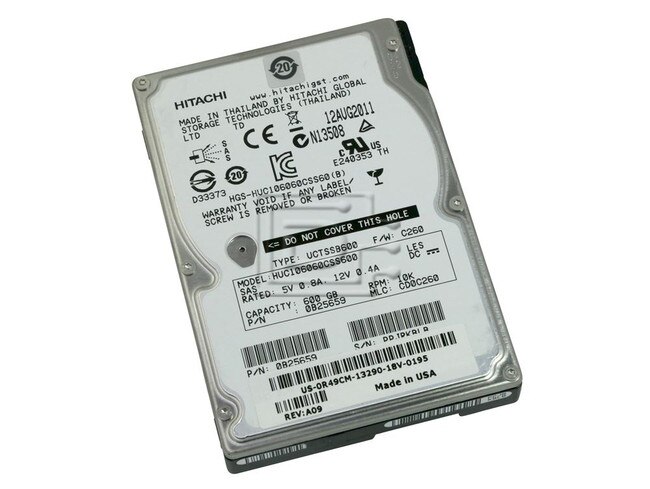

Hitachi Ultrastar 0B25659 / HUC106060CSS600 600GB 10K 6Gbps 2.5" SFF Enterprise SAS / Serial Attached SCSI Hard Drive - Refurbished OEM
Ultrastar™ C10K900 is a 2.5-inch 10,000 RPM hard drive that leads the industry with 18% faster sequential and up to 17% random performance than the nearest competitor. The highperformance SAS 6Gb/s interface delivers data reliability, availability and scalability and is the only small form factor SAS drive in the industry to pack a 64MB cache buffer for optimized read/write response time.
Specifications
| Specifications | |
|---|---|
| Model Number | HUC106060CSS600 |
| Configuration | |
| Interface | SAS 6Gb/s |
| Capacity (GB) | 600 |
| Recording zones | 40 |
| Data heads (physical) | 4 |
| Data disks | 2 |
| Max. areal density (Gbits/sq. in.) | 494 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 10,000 |
| Latency average (ms) | <3.0 |
| Media transfer rate (Mbits/s, max) | 2105 |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate (MB/s, typical) | 198 - 117 |
| Seek time (read, ms, typical) | 3.8 / 4.2 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 1016 |
| MTBF (M hours) | 2.0 |
| Availability (hrs/day x days/wk) | 24x7 |
| Acoustics | |
| Idle (Bels) | 2.9 |
| Power | |
| Requirement | +5 VDC (+/-5%), +12 VDC (+/-5%) |
| Operating, (W, typical) | 5.8 |
| Low power idle (W) | 3.0 |
| Power consump. efficiency index (W/GB) | 0.0058 |
| Physical size | |
| z-height (mm) | 14.8 |
| Dimensions (width x depth, mm) | 70.1 x 100.6 |
| Weight (g, max) | 204 |
| Environmental (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave 2ms, G) | 60 |
| Environmental (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave, 2ms, G) | >300 |
| Vibration, random (G RMS, 5 to 500 Hz) | 1.5, all axes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUC106060CSS600 C10K900
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
