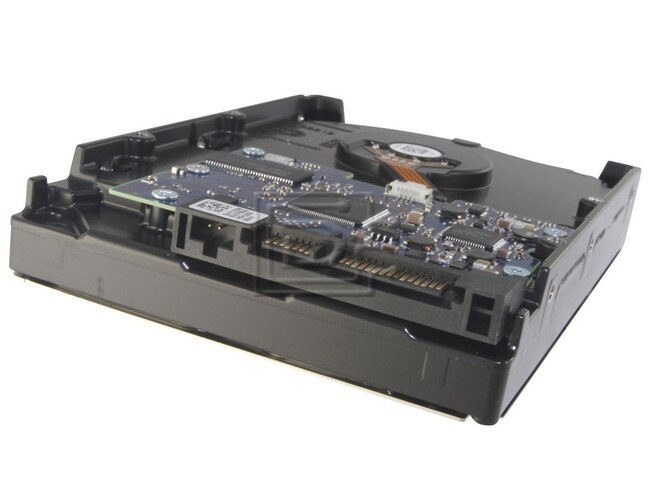

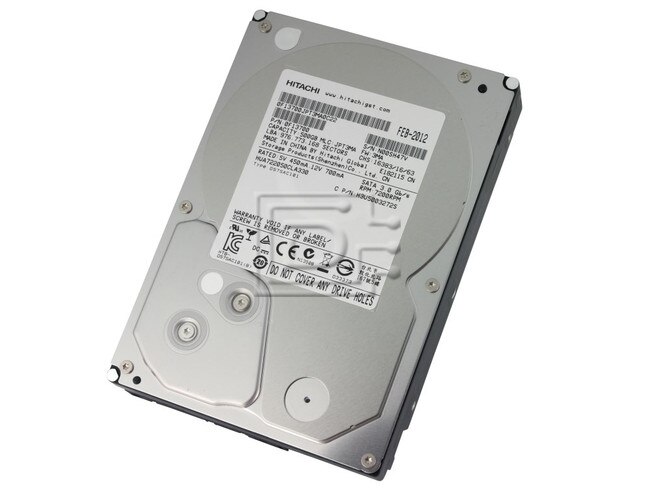

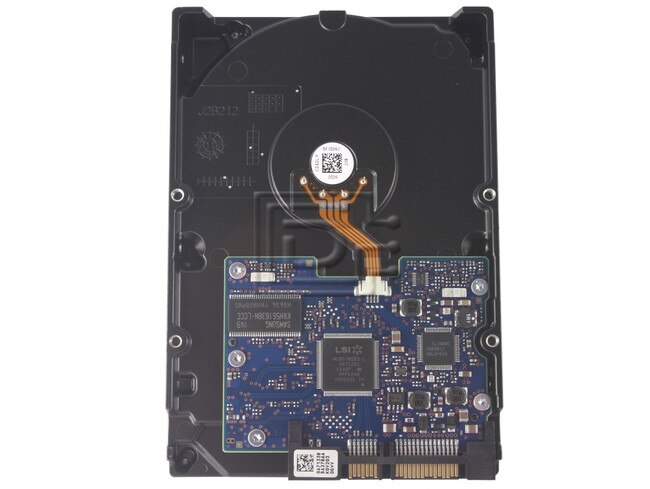

Hitachi Ultrastar A7K2000 0F11000 / HUA722050CLA330 500GB 7.2K 3.5" SATA Hard Drive

Hitachi Part #/MPN: 0F13700

DiscTech Item #: HIT-0F11000-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 500GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 134

Average Seek Time: 8.5

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 32MB

Hitachi Ultrastar A7K2000  0F11000 / HUA722050CLA330 500GB 7.2K 3.5" SATA Hard Drive - Brand New

Doubling The Capacity Density
As data center professionals across the globe work to meet growing enterprise needs, they
face the dilemma of storing more data in the same footprint while also reducing power and HVAC
consumption. The new Ultrastar™ A7K2000 provides twice the data storage capacity of the
prior generation Ultrastar A7K1000 drive, and does so using fewer watts. It is now possible to
achieve a colossal 1.2 petabytes (PB) in the footprint of a standard 19-inch enterprise storage
rack by deploying the 2TB A7K2000 in a stack of ten 4U, 60-bay enclosures.

Combining 7200 Rpm Performance And Granular Power Control
Operating at 7200 RPM, the HGST Ultrastar A7K2000 offers better overall performance than
slower-RPM, capacity-oriented drives at impressively low power-consumption rates. When
compared to the previous generation Ultrastar A7K1000, the A7K2000 offers up to a 155%
improvement in sustained data transfer rate, and a 120% improvement in watts-per-GB.
With five Advanced Power Management modes, a 36% reduction in watts during low-RPM
idle mode, and using less than 1W during standby/sleep mode, the Ultrastar A7K2000 can
help data centers achieve lower AC power and HVAC requirements, freeing up precious
headroom for growing enterprise needs.

Enhancing Data Safety And Security
To ensure the utmost in data safety and security, the Ultrastar A7K2000 is also available
with a bulk data encryption (BDE) option. When enabled, the HGST BDE implementation
encrypts all data on the drive using a private security key as it is written to the disk,
and then decrypts it with the key as it is retrieved, giving users an extreme level of data
protection. Unlike software-based encryption solutions, the HGST BDE implementation
is hardware-based, so it doesn’t slow the system down. This technology also speeds up
and simplifies the drive re-deployment and decommissioning process. By deleting the
encryption key, the data is rendered unreadable, thereby eliminating the need for timeconsuming,
multi-pattern data overwrite.

Delivering Industry-Leading Reliability
With a robust fourth-generation mechanical design, Ultrastar A7K2000 is specifically built
and tested for the enterprise. The Ultrastar SATA drive family features HGST-patented
Rotational Vibration Safeguard (RVS) sensor technology, which optimizes drive reliability
in multi-drive RAID arrays and rack-mounted systems. Backed by a five-year warranty, the
Ultrastar platform has earned HGST a reputation among server and storage vendors as a
global partner dedicated to delivering the highest quality and reliability in the industry.

Innovation for a more sustainable environment
The Ultrastar A7K2000 demonstrates HGST ecological leadership with its halogen-free
design and power-efficient operation. Both these features serve to qualify the drive for the
HGST EcoTrac classification, which identifies products that minimize environmental impact
in the areas of product design, manufacturing, operation and disposal.


This drive is compatible with all laptops that use SATA hard drives.

A7K2000 / HUA722050CLA330
Interface SATA3Gb/s
Capacity (GB)2 at 512 bytes/sector500GB
Sector size (bytes)512
Max. areal density (Gbits/sq. in)352
Data buffer (MB)32
Rotational speed (RPM)7200
Interface transfer rate (MB/s, max)300
Sustained transfer rate (MB/s, typical)134
Seek time (read, ms, typical)8.5
Error rate (non-recoverable, bits read)1 in 1015
Load/unload cycles (at 40° C)300,000
Availability2 (hrs/day x days/wk)24x7
MTBF2 (M hours)1,200,000
Warranty (yrs.)5
Idle (Bels, typical)2,4
Requirement+5 VDC (+/-5%), +12 VDC (+10%/-8%)
Startup current (A, max.)2.0 (+12V), 1.2 (+5V)
Read/write (W)11.1
Unload idle (W)5.6
Power consump. efficiency index (W/GB)0.0028 / 0.0039 / 0.0078
Physical size
z-height (mm)26.1
Dimensions (width x depth, mm)101.6 (+/-0.25) x 147
Weight (g, max)740
Environmental (operating)
Ambient temperature5 to 60 C
Shock (half-sine wave, G)70
Vibration (G RMS, 5 to 500 Hz)0.67 (XYZ)
Environmental (non-operating)
Ambient temperature40 to 70 C
Shock (half-sine wave, 1ms, G)300

Click here to view the manufacturer's item description/brochure

Alternate MPNs: HUA722050CLA330

Weight: 1.8 lb

Warranty: 5 Year Manufacturer
