IBM Part #/MPN: 26K5777
DiscTech Item #: IBM-26K5777-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 73GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.1
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 8MB

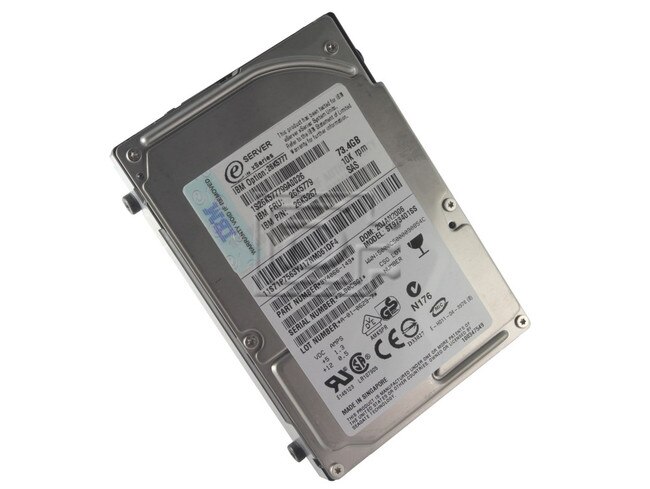

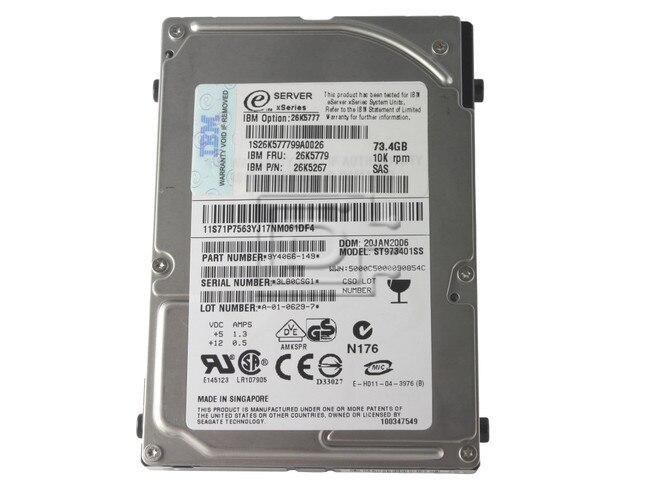

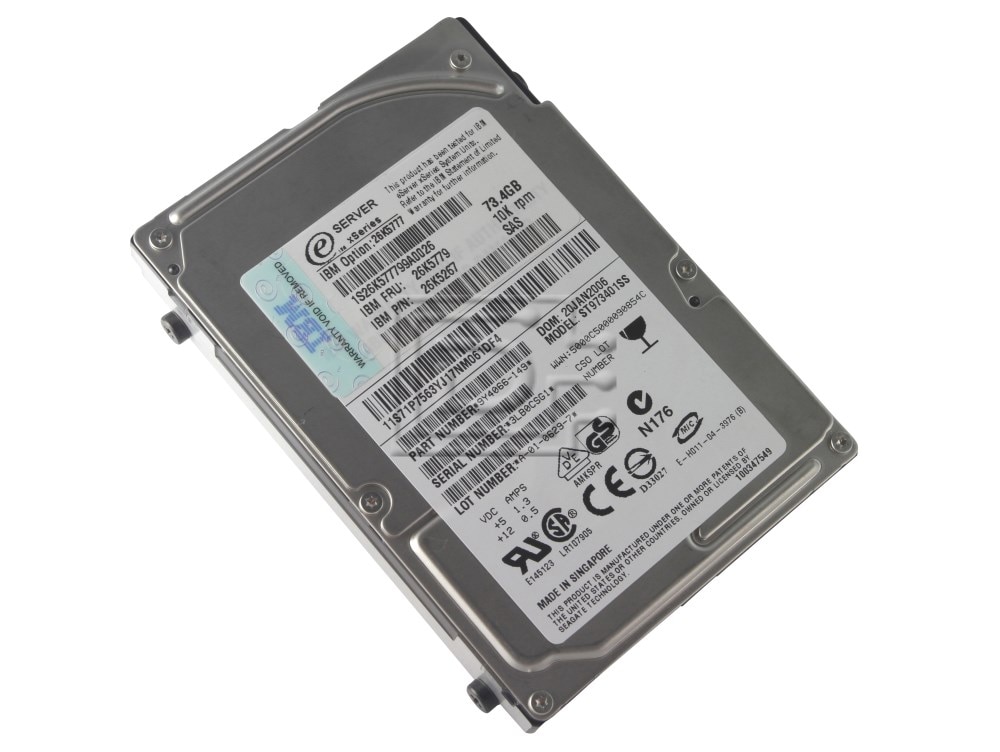

IBM 26K5777 73GB 10K 3.0Gbps SFF Serial SCSI / SAS Non Hot-Swap Hard Drive - New Pull
This drive is the first 2.5-inch enterprise disc drive, making possible a new class of high I/O, high-density storage solutions. These drives enable space-constrained data centers to achieve higher IOPs (input/output per second) performance in small form factor system configurations while maintaining the highest levels of reliability.
IBM p/n: 39R7389 39R7391 9Y4066 ST973401SS 26K5267 26K5779
Compatibility:
BladeCenter HS12 |
BladeCenter HS21 |
This drive can also be used in any server or array that takes a 2.5" SFF SAS Hard Drive.
Specifications | 73.4 GB |
---|---|
Model Number | 26K5777 |
Interface | SAS 3Gb/s |
PHYSICAL | |
Height (max) | 14.81 mm (0.583 inches) |
Width (max) | 70.1 mm (2.76 inches) |
Length (max) | 111.7 mm (4.40 inches) |
Weight (typical) | 220 grams (0.49 pounds) |
Cache | 8 MBytes |
Capacity | 73.4 GB |
Guaranteed Sectors | 143,374,744 |
Number of pins on the I/O connector | 7 |
Total tracks per surface | 51,052 |
PERFORMANCE | |
Spindle Speed | 10,000 rpm |
Average latency | 3.00 msec |
Random read seek time | 4.70 msec |
Random write seek time | 5.10 msec |
RELIABILITY | |
MTBF | 1,400,000 hours |
Power-on hours | 8,760 hours |
Unrecoverable read errors | 1 in 10^15 |
Recoverable read errors | 10 in 10^12 |
ENVIRONMENT | |
Temperature | |
Ambient operating temperature (min) | 5 degrees C |
Ambient operating temperature (max) | 55 degrees C |
Ambient nonoperating temperature (min) | -40 degrees C |
Ambient nonoperating temperature (max) | 70 degrees C |
Maximum operating temperature change | 20 degrees C per hour |
Maximum nonoperating temperature change | 20 degrees C per hour |
Maximum operating case temperature | 60 degrees C |
Humidity | |
Minimum Relative humidity (operating) | 5 % |
Maximum Relative humidity (operating) | 95 % |
Minimum Relative humidity (nonoperating) | 5 % |
Maximum Relative humidity (nonoperating) | 95 % |
Maximum allowable humidity change | 20 % per hour |
Altitude | |
Operating altitude (min) | -305 meters |
Operating altitude (min) | -1,000 feet |
Operating altitude (max) | 3,048 meters |
Operating altitude (max) | 10,000 feet |
Nonoperating altitude (min) | -305 meters |
Nonoperating altitude (min) | -1,000 feet |
Nonoperating altitude (max) | 12,210 meters |
Nonoperating altitude (max) | 40,000 feet |
Shock | |
Vibration | |
Operating Shock (max) | 20 Gs |
Operating shock | 2 msec |
Nonoperating Shock (max) | 275 Gs |
Nonoperating shock | 2 msec |
Operating vibration | 1.0 Gs |
Operating vibration | 5 to 500 Hz |
Nonoperating vibration | 3.00 Gs |
Nonoperating vibration | 5 to 500 Hz |
ACOUSTICS | |
Acoustics (Idle Volume) | 3.5 bels |
Alternate MPNs: 39R7389 39R7391 9Y4066 ST973401SS 26K5267 26K5779
Weight: 1.8 lb
Warranty: 1 Year DiscTech
