IBM Part #/MPN: 42D0632
DiscTech Item #: IBM-42D0632-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.8 / 4.3
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950
IBM 42D0632 / 42D0633 / 42D0636 146GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Refurbished OEM
IBM 42D0632 / 42D0633 / 42D0636 146GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Refurbished OEM
The IBM 10,000 RPM 6Gb/sec. SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.
The higher capacity and performance meets a wide range of enterprise applications, from midrange volume servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS interface and improved areal densities enable higher data rates.

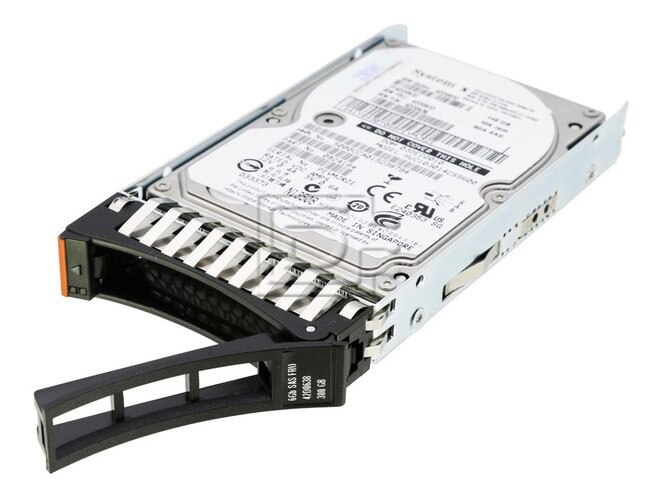

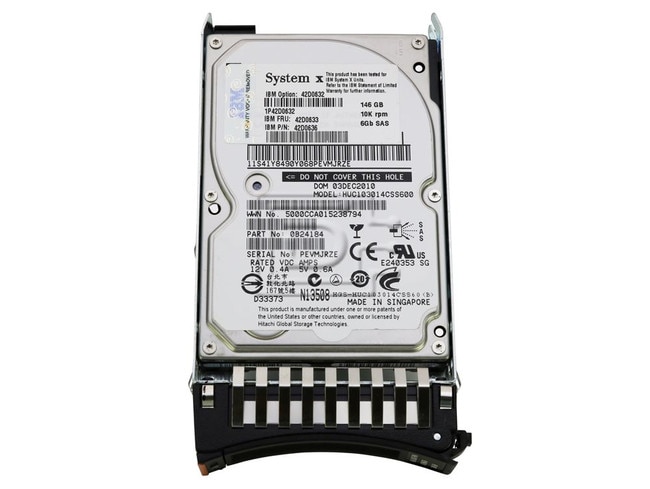

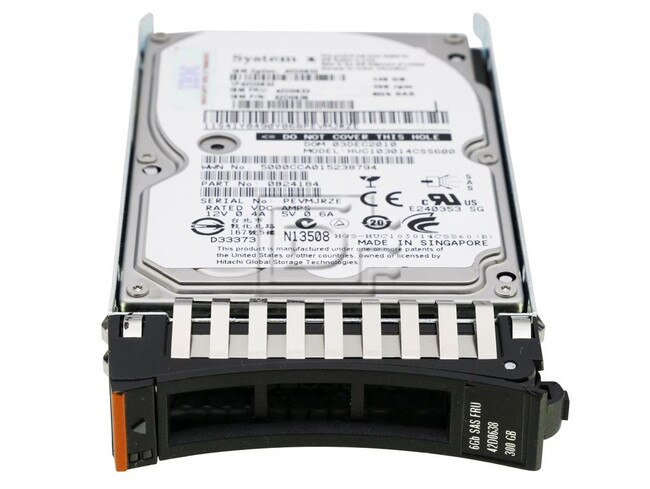

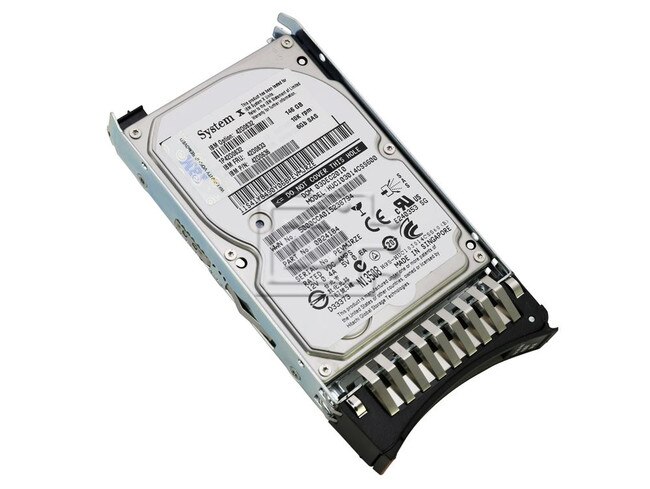

Genuine IBM hard drive w/ 44T2216 Hot Swap Caddy.
Alt Pt#: 42D0633 42D0636
Compatibility:
This drive is compatible with IBM servers that support 2.5" SFF hot swap SAS hard drives (this list is not all inclusive):
| FUNCTIONAL SPECIFICATIONS | |
| Formatted storage capacity | 146.0 GB |
| Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
| Seek time (average) | 3.8/4.3 ms. typ. (read/write) |
| Seek time (full track) | 8.0/9.0 ms. typ. (read/write) |
| Average latency time | 2.99 ms. |
| Rotational speed | 10,025 RPM |
| Interface | SAS II (6Gbps) |
| Data Buffer Size | 16 MB |
| PHYSICAL SPECIFICATIONS | |
| Power requirement Idle (ready) | 3.2 W typ. |
| Form Factor | 2.5-inch x 15mm high |
| Height | 15.0 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.22 kg |
| Ambient temperature (operating) | 5 to 55 degrees C |
| Ambient temperature (non-operating) | -40 to 70 degrees C |
| Maximum DE surface temperature (operating) | 60 max deg. C |
| Gradient | 20 degrees C per hour |
| Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
| Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
| Maximum wet bulb | 29 degrees C (non-condensing) |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock (operating) | 100G Max (1ms) |
| Shock (non-operating) | 400G Max (1ms) |
| Altitude (operating) | 3,048 metres |
| Altitude (non-operating) | 12,192 metres |
| Acoustic noise (at 1 metre idle) | >/=2.9 (ready) bels |
Alternate MPNs: 42D0633 42D0636
Weight: 1.5 lb
Warranty: 1 Year DiscTech
