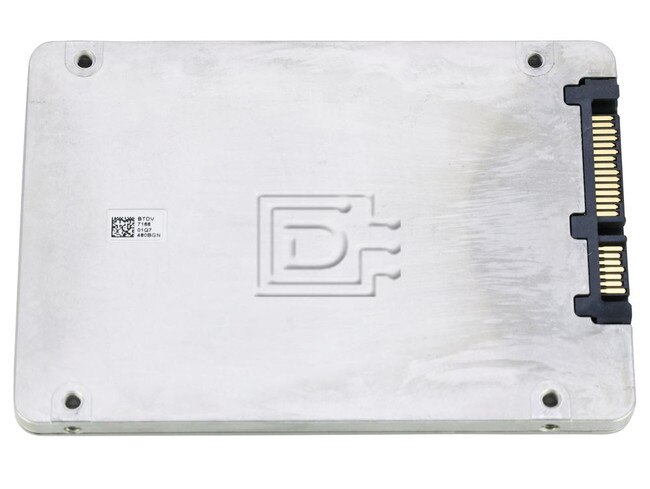

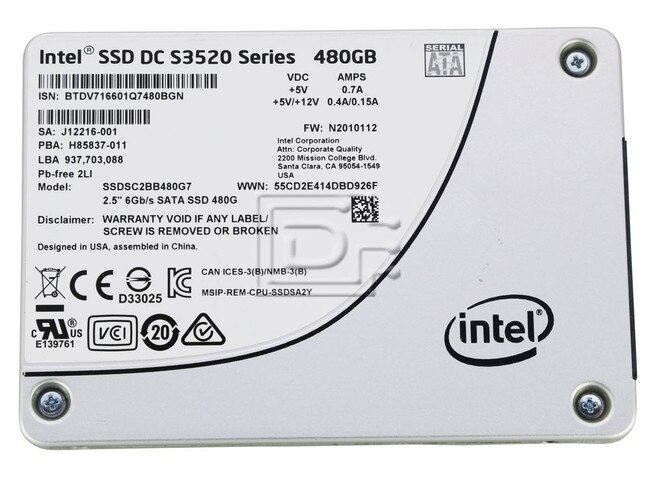

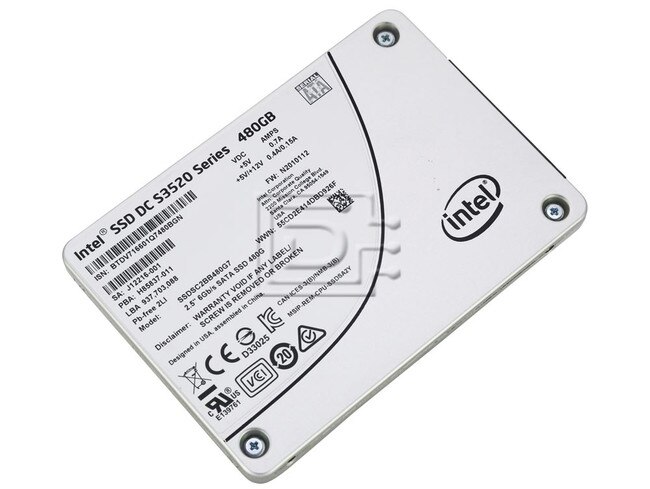

Intel DC S3520 SSDSC2BB480G7 480GB SATA SSD
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 480GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Intel DC S3520 SSDSC2BB480G7 480GB 2.5" 6Gbps MLC Read Intensive SATA Solid State Drive - Refurbished
Intel DC S3520 SSDSC2BB480G7 480GB 2.5" 6.0 Gb/s MLC / Multi-Level Cell Read Intensive 1.0-DWPD / Drive Writes Per Day SATA / Serial ATA SSD / Solid State Drive - Refurbished
Cost-Effective Performance and Reliability
Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel Solid-State Drive Data Center S3520 Series. The Intel SSD DC S3520 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.
The Intel SSD DC S3520 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time.
Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3520 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.
Compatibility
This drive is compatible with any system that accepts 2.5in x 7mm SATA drives.
Specifications
| Specification | |
|---|---|
| Intel Model Number | SSDSC2BB480G7 |
| ESSENTIALS | |
| Capacity | 480GB |
| Form Factor | 2.5" 7mm |
| Interface | SATA 3.0 6Gb/s |
| Lithography Type | 16 nm 3D NAND |
| PERFORMANCE | |
| Sequential Read (up to) | 450 MB/s |
| Sequential Write (up to) | 380 MB/s |
| Random Read (8GB Span) (up to) | 65500 IOPS |
| Random Write (8GB Span) (up to) | 16000 IOPS |
| Latency - Read | 42 µs |
| Latency - Write | 40 µs |
| Power - Active | 3.2 W |
| Power - Idle | 500 mW |
| RELIABILITY | |
| Vibration - Operating | 2.17 GRMS (5-700 Hz) |
| Vibration - Non-Operating | 3.13 GRMS (5-800 Hz) |
| Shock (Operating and Non-Operating) | 1000G/0.5ms |
| Operating Temperature Range | 0°C to 70°C |
| Endurance Rating (Lifetime Writes) | 95 TBW |
| Mean Time Between Failures (MTBF) | 2 Million hours |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per 1017 bits read |
| PACKAGE SPECIFICATIONS | |
| Weight | 60 grams +/- 2 grams |
| Form Factor | 2.5" 7mm |
| Vibration - Operating | SATA 3.0 6Gb/S |
| PACKAGE SPECIFICATIONS | |
| Enhanced Power Loss Data Protection | Yes |
| Hardware Encryption | AES 256 bit |
| High Endurance Technology (HET) | No |
| Temperature Monitoring and Logging | Yes |
| End-to-End Data Protection | yes |
| Intel Smart Response Technology | No |
| Intel Rapid Start Technology | No |
| Intel Remote Secure Erase | No |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
