Capacity: 300GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 300 - 3.0Gbps
SSD Type: MLC

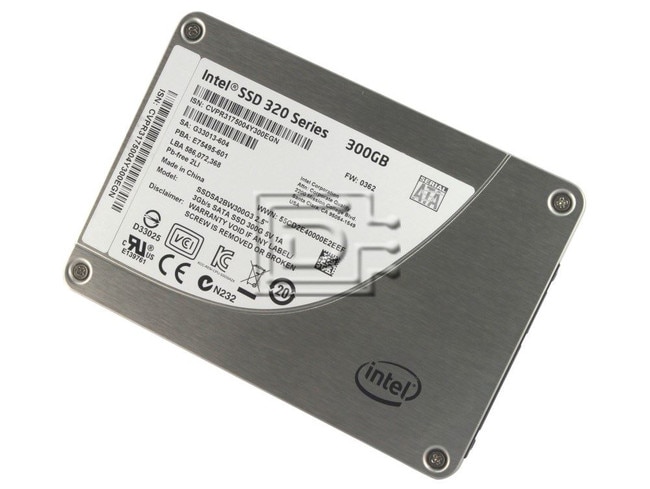

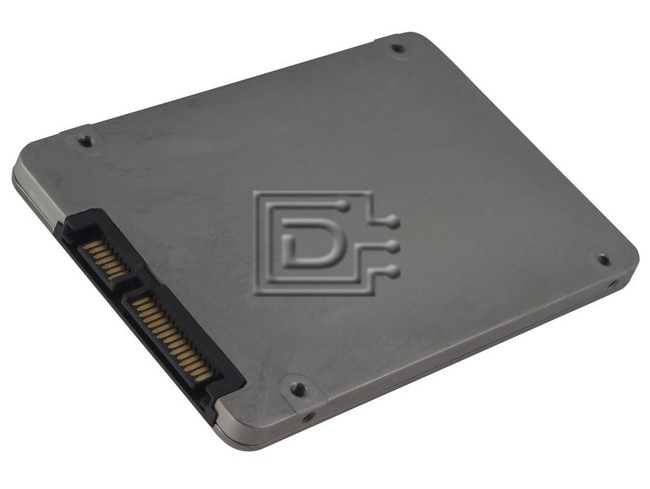

Intel 320 Series SSDSA2BW300G301 / SSDSA2BW300G3 300GB 2.5" 3Gbps MLC SATA SSD - New Pull
Intel 320 Series SSDSA2BW300G301 300GB 2.5inch 3.0Gbps MLC SATA SSD - New Pull
Intel Model Number: SSDSA2BW300G3
Overview
The Intel SSD 320 Series delivers leading performance for Serial Advanced Technology Attachment (SATA)-based computers by combining Intel's leading 25nm NAND Flash Memory technology with SATA 3Gb/s interface support, the Intel SSD 320 Series delivers sequential read speeds of up to 270 MB/s and sequential write speeds of up to 220 MB/s. The industry-standard form factors enable interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, ruggedness, and power savings offered by an SSD.
As compared to standard SATA HDDs, the Intel SSD 320 Series offers these key features:
- High I/O and throughput performance
- Low power
- Increased system responsiveness
- High reliability
- Enhanced ruggedness
Hot Plug Support
Hot Plug insertion and removal is supported in the presence of a proper connector and appropriate operating system (OS), as described in the SATA 2.6 specification. This product supports asynchronous signal recovery and issues an unsolicited COMINIT when first mated with a powered connector to guarantee reliable detection by a host system without hardware device detection.
SMART Logs
The Intel SSD 320 Series implements the following Log Addresses: 00h, 02h, 03h, 06h, and 07h. The Intel SSD 320 Series implements host vendor specific logs (addresses 80h-9Fh) as read and write scratchpads, where the default value is zero (0). Intel SSD 320 Series does not write any specific values to these logs unless directed by the host through the appropriate commands. The Intel SSD 320 Series also implements a device vendor specific log at address A9h as a read-only log area with a default value of zero (0).
Device Statistics
In addition to the SMART attribute structure, statistics pertaining to the operation and health of the Intel SSD 320 Series can be reported to the host on request through the Device Statistics log as defined in the ATA specification. The Device Statistics log is a read-only GPL/SMART log located at read log address 0x04 and is accessible using READ LOG EXT, READ LOG DMA EXT or SMART READ LOG commands.
Compatibility:
Compatible with servers / laptops that accept 2.5"x7mm SATA drives.
| Intel Model Number | SSDSA2BW300G3 |
|---|---|
| Ordering Part Number | SSDSA2BW300G301 |
| Capacity | 300GB |
| Form Factor | 2.5" 7mm |
| Interface | SATA 3.0 (3Gb/s) |
| Lithography | 25 nm |
| Components | Intel NAND Flash Memory Multi-Level Cell (MLC) Technology |
| Essentials | |
| Sequential Read | 270 MB/s |
| Sequential Write | 205 MB/s |
| Random Read (8GB Span) | 39500 IOPS |
| Random Read (100% Span) | 39500 IOPS |
| Random Write (8GB Span) | 23000 IOPS |
| Random Write (100% Span) | 400 IOPS |
| Latency - Read | 75 µs |
| Latency - Write | 90 µs |
| Power - Active | 150 mw (MobileMark 2007 Workload), 2.0 W (64K Sequential Write) |
| Power - Idle | 100 mw (DIPM), .7 W (Non-DIPM) |
| Vibration - Operating | 2.17 GRMS (5-700 Hz) |
| Vibration - Non-Operating | 3.13 GRMS (5-800 Hz) |
| Shock (operating and Non-Operating) | 1,500 G/.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 1,200,000 Hours |
| Uncorrectoable Bit Error Rate (UBER) | 1 sector per 100,000,000,000,000,000 |
| Enhanced Power Loss Data Protection | Yes |
| Weight (g/lb) | 90/0.198 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: SSDSA2BW300G3
