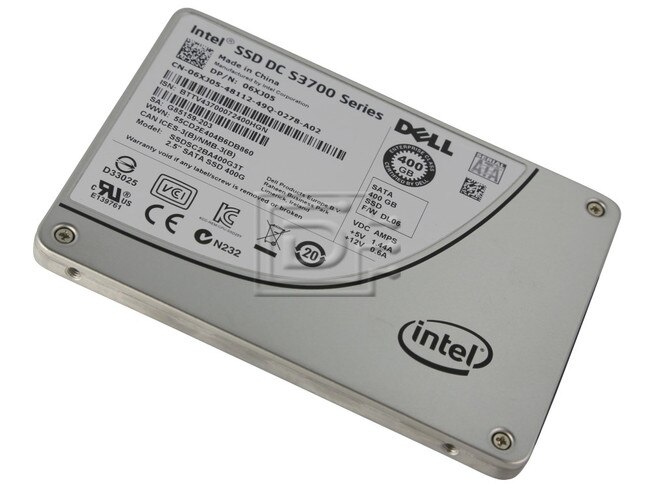

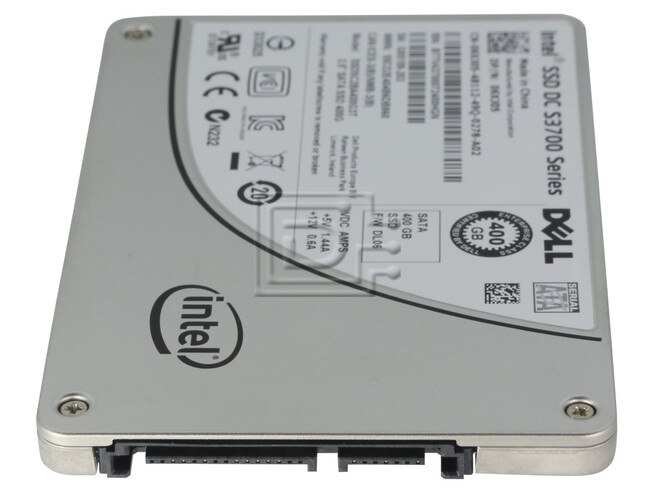

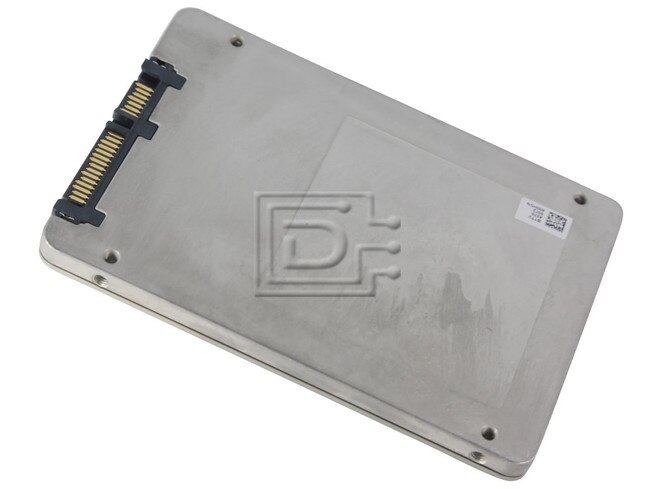

Intel SSDSC2BA400G3T 400GB SATA SSD

INTEL Part #/MPN: SSDSC2BA400G3T

DiscTech Item #: INT-SSDSC2BA400G3T-BN-OE-DEL


$395.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$395.00

Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 500

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610, Dell 10th Gen. 2950 / 6950

Intel SSDSC2BA400G3T / SSDSC2BA400G3  6XJ05 400GB 2.5" Mixed Use 6Gbps MLC SED DC S3700 Series SATA SSD DWPD:10 - Brand New OEM

Intel SSDSC2BA400G3T 400GB 2.5" 6.0 Gbps Multi-Level Cel Self-Encrypting Drive DC S3700 Series Serial Advanced Technology Attachment Solid State Disk Drive - Brand New

Intel Model Number: SSDSC2BA400G3
Ordering Part Number: SSDSC2BA400G301

Intel® Solid-State Drive DC S3700 Series

Consistently amazing

Ensuring fast and consistent command response times with low power consumption, the Intel® Solid-State Drive DC S3700 delivers superior performance with 4 KB random read performance of up to 75,000 input/output operations per second (IOPS)1 and 4 KB write performance of up to 36,000 IOPS1 while reducing overall energy costs. In addition to efficient performance, the Intel® SSD DC S3700 protects data loss and corruption with full end-to-end security. Combining an advanced error correction scheme in the NAND, SRAM, and DRAM memory, this Intel SSD also protects data in transit through parity checks, cyclic redundancy checks (CRC), and logical block address (LBA) tag validation. Furthering data assurance is the Advanced Encryption Standard (AES) and enhanced power-loss protection. And with High Endurance Technology (HET), the Intel SSD DC S3700 meets the most demanding write needs, achieving ten writes per day over a five-year life.


ALT DPN: 06XJ05 6XJ05


Compatibility:

This drive is compatible with servers and laptops that accept 2.5"x7mm SATA drives.

PACKAGE SPECIFICATIONS
Intel Model NumberSSDSC2BA400G3
Ordering Part NumbersSSDSC2BA400G3T
SSDSC2BA400G301
06XJ05 6XJ05
ComponentsIntel NAND Flash Memory Mult-Level Cell(MLC) Technology
Capacity400GB
Form Factor2.5" 7mm
InterfaceSATA3.0 6Gb/s
Lithography25 nm
ESSENTIALS
Sequential Read500 MB/s
Sequential Wrtie460 MB/s
Random Read (100% Span)75000 IOPS
Random Wrtie (100% Span)36000 IOPS
Latency - Read50 µs
Latency - Write65 µs
Power - Active5.4 mW
Power - Idle650 mW
Vibration - Operating2.17 GRMS (5-700 Hz)
Vibration - Non-Operating3.13 GRMS (5-800 Hz)
Shock (Operating and Non-Operating)1,000 G/0.5 msec
Operating Temperature Range0°C to 70°C
Weight g/lb75.6/0.1667
Endurance Rating (Lifetime Writes)10 drive writes per day for 5 years
Mean Time Between Failures (MTBF)2,000,000 Hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10^17 bits read
ADVANCED TECHNOLOGIES
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)Yes
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2BA400G301 SSDSC2BA400G3 06XJ05 6XJ05

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
