INTEL Part #/MPN: SSDSC2BB240G401
DiscTech Item #: INT-SSDSC2BB240G401-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 240GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 500
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

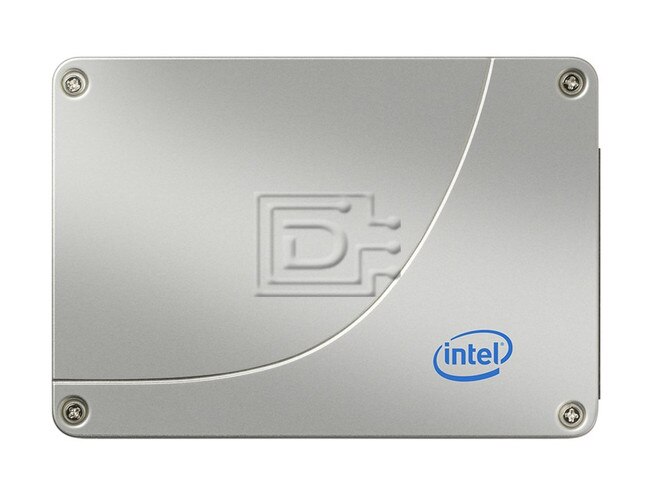

Intel SSDSC2BB240G401 / SSDSC2BB240G4 240GB 2.5in 6Gbps DC S3500 SATA MLC SSD - Brand New
Intel SSDSC2BB240G401 240GB 2.5" 6.0 Gbps Data Center S3500 Serial Advanced Technolgy Attachment Multi-Level Cell Solid State Disk Drive - Brand New
Intel Model Number: SSDSC2BB240G4
Alt. Ordering Part Number: SSDSC2BB240G4K5
The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.
Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
| Intel Model Number | SSDSC2BB240G4 |
|---|---|
| Ordering Part Numbers | SSDSC2BB240G401 SSDSC2BB240G4K5 |
| Capacity | 240GB |
| Performance | |
| Interface Type | SATA |
| Sequential Read | 500 MB/s |
| Sequential Write | 260 MB/s |
| Random Read (8GB Span) | 75000 IOPS |
| Random Write (8GB Span) | 7500 IOPS |
| Latency - Read | 50 µs |
| Latency - Write | 65 µs |
| Power - Active | 3.1W |
| Power - Idle | 0.9W |
| Vibration - Operating | 2.17 Grms |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Weight (lb/g) | 0.159/72.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BB240G4K5 SSDSC2BB240G4
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
