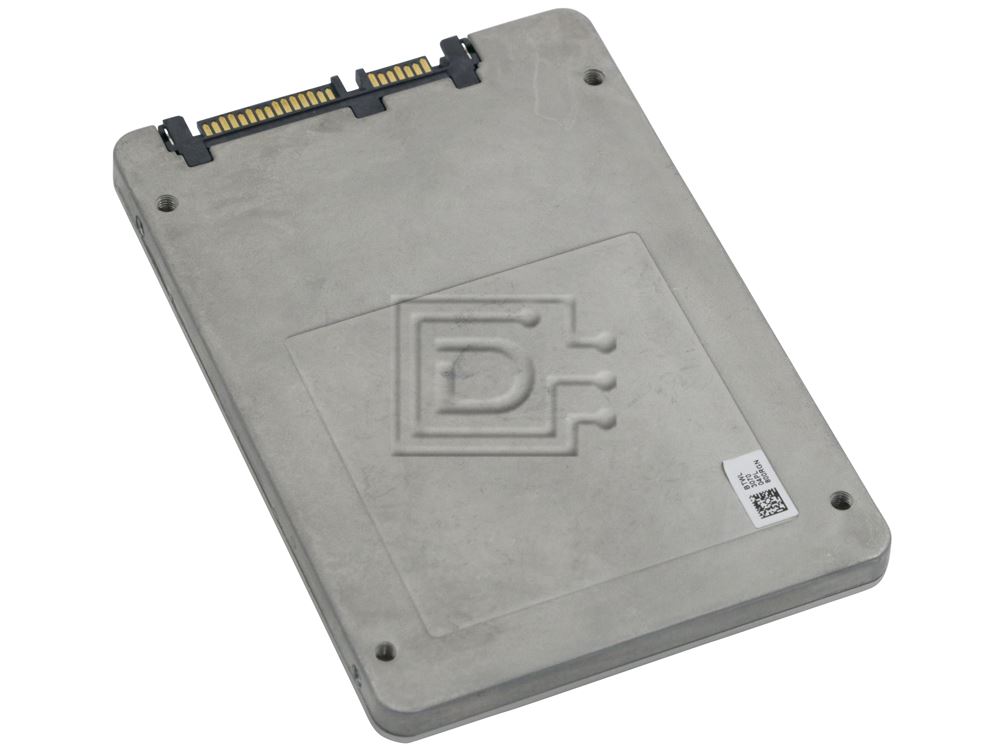

Intel SSDSC2BB800G401 800GB SATA SSD
Intel SSDSC2BB800G401 800GB SATA SSD
| Capacity: | 800GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Intel SSDSC2BB800G401 / SSDSC2BB800G4 800GB 2.5in 6Gbps DC S3500 SATA MLC SSD - Brand New
Intel SSDSC2BB800G401 800GB 2.5" 6.0 Gbps Data Center S3500 Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive - Brand New
Intel Model Number: SSDSC2BB800G4
The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.
Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
Specifications
| Intel Model Number | SSDSC2BB800G4 |
|---|---|
| Ordering Part Number | SSDSC2BB800G401 |
| Capacity | 800GB |
| Performance | |
| Interface Type | SATA |
| Sequential Read | 500 MB/s |
| Sequential Write | 450 MB/s |
| Random Read (8GB Span) | 75000 IOPS |
| Random Write (8GB Span) | 11500 IOPS |
| Latency - Read | 50 µs |
| Latency - Write | 65 µs |
| Power - Active | 5W |
| Power - Idle | 0.9W |
| Vibration - Operating | 2.17 Grms |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Weight (lb/g) | 0.163/74.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BB800G4
Weight: 1 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
