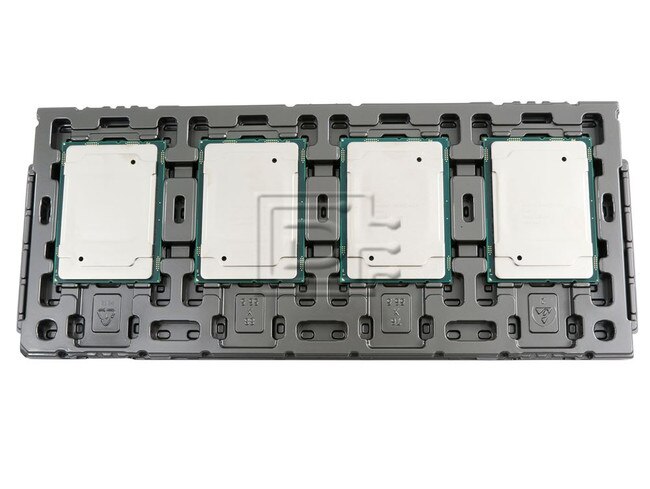

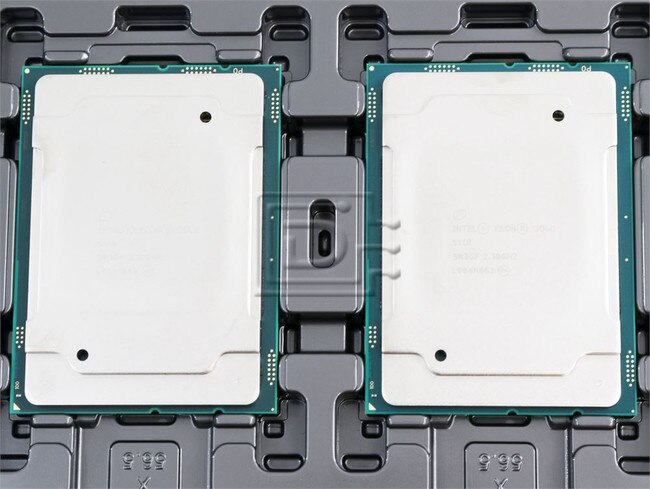

Intel Xeon Gold 5118 / SR3GF / CD8067303536100 2.3 GHz 12-Core 16.5MB Cache FCLGA3647 Socket CPU Processor

INTEL Part #/MPN: 5118

DiscTech Item #: INT-5118-NP-2M


$389.00
$389.00

Interface Types: Socket FCLGA3647

Electrical Interface: Clock 2.3 GHz

On-Board Cache: 16MB

Compatible Systems: Dell 13th Gen. R730/T630

Intel Xeon Gold 5118 / SR3GF / CD8067303536100 2.3 GHz 12-Core 16.5MB Cache FCLGA3647 Socket CPU Processor - New Pull

Intel Xeon Gold 5118 / SR3GF / CD8067303536100 2.3 GHz 12-Core 16.5MB Cache FCLGA3647 Socket CPU Processor - New Pull


Compatibility:

Compatible with servers that have FCLGA3647 sockets. This is including, but not limited to:

Dell PowerEdge R430 Dell PowerEdge T430 Dell PowerEdge R530 Dell PowerEdge R630
Dell PowerEdge T630 Dell PowerEdge R730 Dell PowerEdge R730XD Dell PowerEdge R740
Dell PowerEdge R740XD Precision Workstation T7820 Precision Workstation T7920 C621 Chipset
Compute Module HNS2600BPB Compute Module HNS2600BPBLC Compute Module HNS2600BPBLCR Compute Module HNS2600BPBR
Compute Module HNS2600BPQ Compute Module HNS2600BPQR Compute Module HNS2600BPS Compute Module HNS2600BPSR
Server Board S2600BPB Server Board S2600BPBR Server Board S2600BPQ Server Board S2600BPQR
Server Board S2600BPS Server Board S2600BPSR Server Board S2600KPFR Server Board S2600KPTR
Server Board S2600STB Server Board S2600STBR Server Board S2600STQ Server Board S2600STQR
Server Board S2600TPFR Server Board S2600TPNR Server Board S2600TPR Server Board S2600WF0
Server Board S2600WF0R Server Board S2600WFQ Server Board S2600WFQR Server Board S2600WFT
Server Board S2600WFTR Server Board S2600WT2R Server Board S2600WTTR Server Board S2600WTTS1R
Server System MCB2224THY1 Server System R1208WFQYSR Server System R1208WFTYS Server System R1208WFTYSR
Server System R1208WT2GSR Server System R1208WTTGSR Server System R1304BB4DC Server System R1304WF0YS
Server System R1304WF0YSR Server System R1304WFTYS Server System R1304WFTYSR Server System R1304WT2GSR
Server System R1304WTTGSR Server System R2208WF0ZS Server System R2208WF0ZSR Server System R2208WFQZS
Server System R2208WFQZSR Server System R2208WFTZS Server System R2208WFTZSR Server System R2208WT2YSR
Server System R2208WTTYC1R Server System R2208WTTYSR Server System R2224WTTYSR Server System R2308WFTZS
Server System R2308WFTZSR Server System R2308WTTYSR Server System R2312WTTYSR Server System S2600CW2R
Server System S2600CW2SR Server System S2600CWTR Server System S2600CWTSR Server System S2600KPR
Server System VRN2224THY2 Server System VRN2224THY4

ESSENTIALS
Product CollectionIntel® Xeon® Scalable Processors
Code NameProducts formerly Skylake
Vertical SegmentServer
Processor Number5118
Launch DateQ3'17
Lithography14 nm
Use ConditionsServer/Enterprise
CPU SPECIFICATIONS
Total Cores12
Total Threads24
Max Turbo Frequency3.20 GHz
Processor Base Frequency2.30 GHz
Cache16.5 MB L3 Cache
Number of UPI Links2
TDP105 W
SUPPLEMENTAL INFORMATION
Embedded Options AvailableYes
MEMORY SPECIFICATIONS
Max Memory Size (dependent on memory type)768 GB
Memory TypesDDR4-2400
Max Memory Speed2400 MHz
Max # of Memory Channels6
ECC Memory SupportedYes
EXPANSION OPTIONS
Scalability45
PCI Express Revision3.0
Max # of PCI Express Lanes48
PACKAGE SPECIFICATIONS
Sockets SupportedFCLGA3647
TCase81°C
Package Size76.0mm x 56.5mm
ADVANCED TECHNOLOGIES
Intel Optane Memory SupportedNo
Intel Speed Shift TechnologyYes
Intel Turbo Boost Max Technology 3.0No
Intel Turbo Boost Technology2.0
Intel vPro Platform EligibilityYes
Intel Hyper-Threading TechnologyYes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Transactional Synchronization ExtensionsYes
Intel 64Yes
Instruction Set ExtensionsIntel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
# of AVX-512 FMA Units1
Enhanced Intel SpeedStep® TechnologyYes
Intel Volume Management Device (VMD)Yes
SECURITY & RELIABILITY
Intel AES New InstructionsYes
Trusted Execution TechnologyYes
Execute Disable BitYes
Intel Run Sure TechnologyYes
Mode-based Execute Control (MBEC)Yes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SR3GF CD8067303536100

Weight: 1 lb

Warranty: 2 Month DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

2 Month DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
