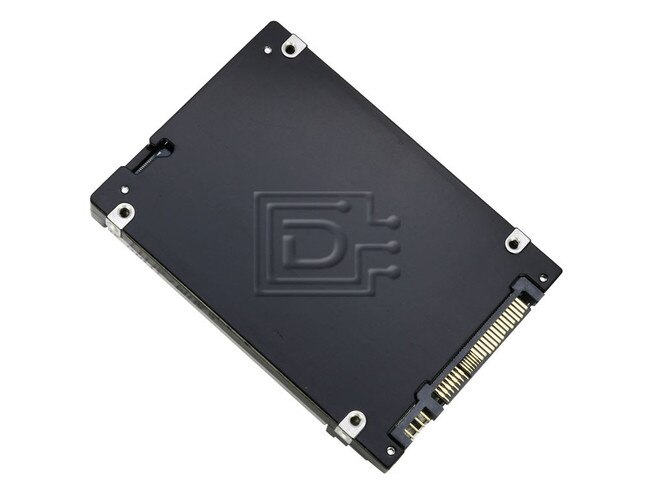

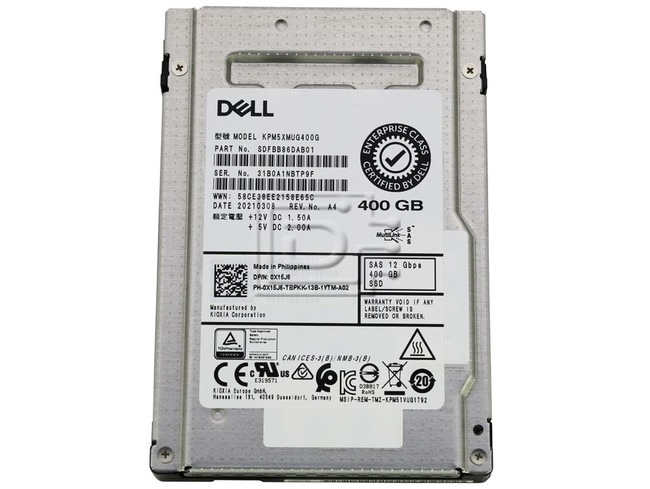

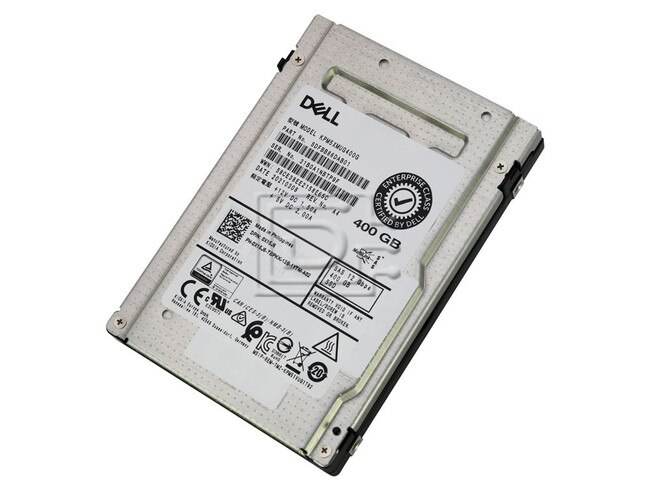

KIOXIA KPM5XMUG400G / Dell X15J6 / WGP72 400GB 12Gbps SIE Write Intensive SAS SSD

Toshiba Part #/MPN: KPM5XMUG400G

DiscTech Item #: KIO-KPM5XMUG400G-BN-OE-DEL


Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 2100/2100

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620

KIOXIA PM5-M Series KPM5XMUG400G / Dell 0X15J6 / 0WGP72 400GB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD - Brand New OEM

KIOXIA PM5-M Series KPM5XMUG400G / Dell X15J6 / 0X15J6 / WGP72 / 0WGP72 400GB 2.5inch SFF 12Gbps SIE WI / Write Intensive TLC / Triple Layer Cell SAS / Serial Attached SCSI SSD / Solid State Drive - Brand New OEM

PM5-M Series - Enterprise Write Intensive SSD

PM5-M 12.0 Gbit/s SAS SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The Series is designed to deliver high levels of performance, quality and reliability for mission-critical, hyperscale and virtualized environments. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 10 DWPD (Drive Write Per Day) with capacities up to 3.2 TB.

Key Features:
  • 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
  • Capacities from 400GB to 3.2TB
  • T10 Multi-Stream Write support
  • Up to 385 K random read IOPS (4 KiB) in dual port mode
  • 2.5 inch form factor, 15 mm Z-height
  • 10 DWPD with 100 % Random Write Workload
  • Power loss protection and end-to-end data protection, including T10 DIF Pin-3 power disable support
  • Sanitize Instant Erase (SIE) option
Key Applications
  • Mission critical enterprise workloads Hyperscale and virtualized environments
  • Online transaction processing (OLTP)
  • E-commerce
DPN: X15J6, 0X15J6, WGP72, 0WGP72


This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Read Intensive SSD
Model NumberKPM5XMUG400G
Basic Specifications
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Formatted Capacity400GB
Sustained 128KiB Sequential Read2,100 MB/s
Sustained 128KiB Sequential Write1,260 MB/s
Sustained 4KiB Random Read270K IOPS
Sustained 4KiB Random Write150K IOPS
MTTF2,500,000 hours
Power Requirements
Supply Voltage5 V ±7 % , 12 V ±10 %
Power Consumption (Operating)5.0W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight130 g Max.
Temperature (Operating)0 to 60 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9,800 m/s {1,000 G} (0.5 ms duration)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: X15J6 0X15J6

Weight: 0.7 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
