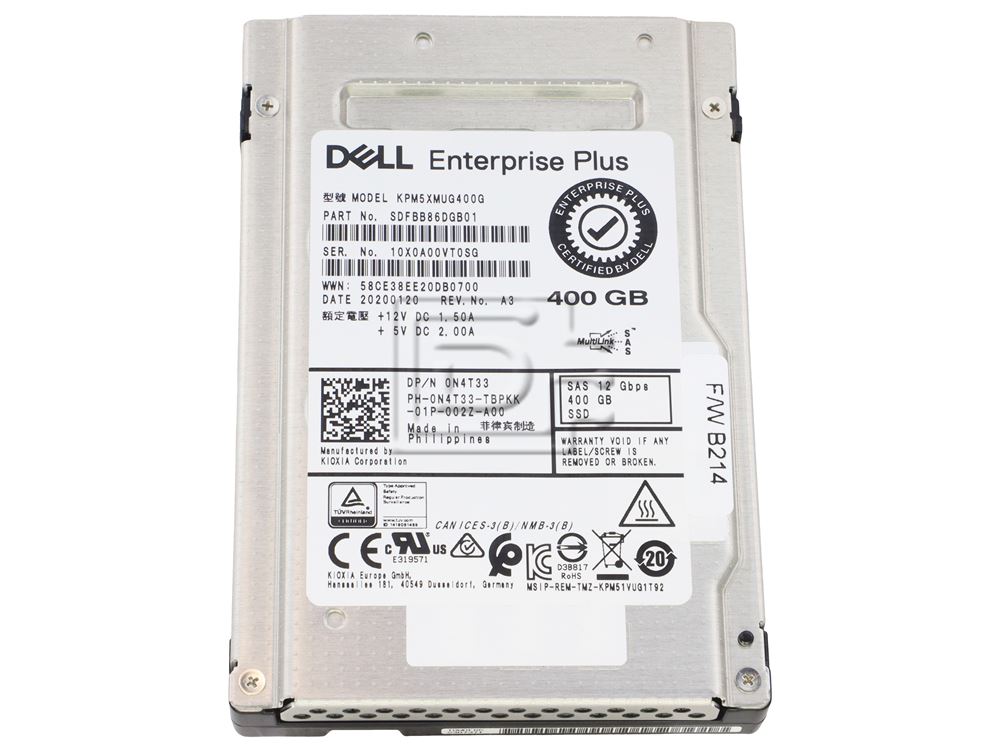

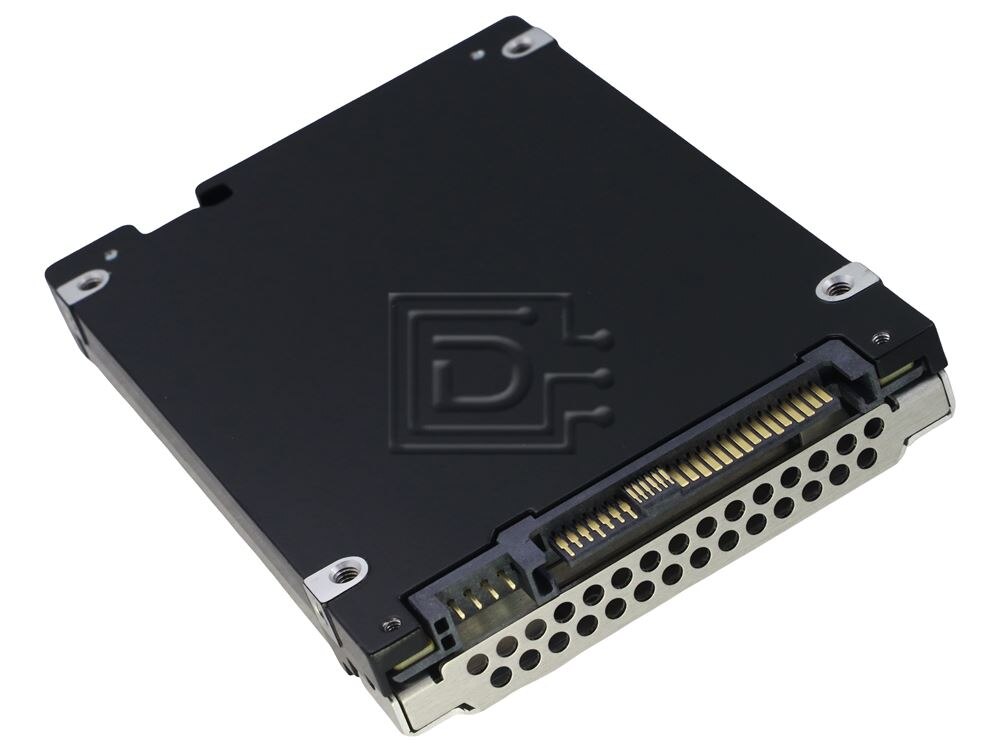

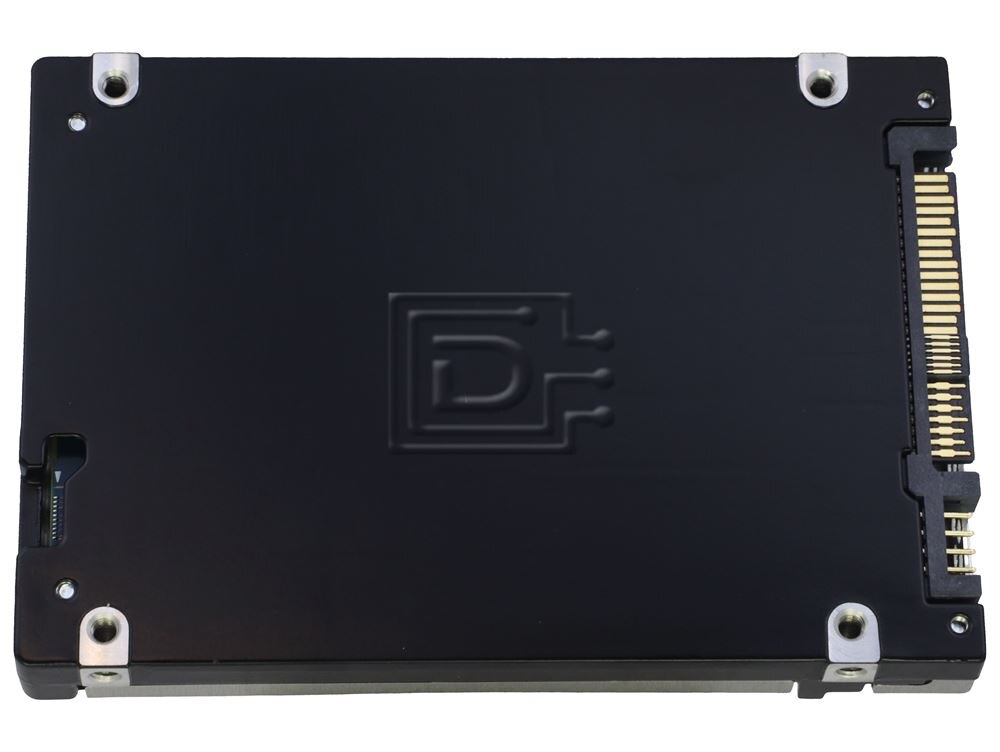

KIOXIA PM5-M Series KPM5XMUG400G / Equallogic N4T33 400GB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 400GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Write Intensive / WI |
| Electrical Interface: | SAS-3 12Gbps |
Description
KIOXIA PM5-M Series KPM5XMUG400G / Equallogic N4T33 400GB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD - Refurbished OEM
KIOXIA PM5-M Series KPM5XMUG400G / Equallogic N4T33 400GB 2.5inch 12Gbps SIE Write Intensive TLC SAS SSD - Refurbished OEM
PM5-M Series - Enterprise Write Intensive SSD
PM5-M 12.0 Gbit/s SAS SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The Series is designed to deliver high levels of performance, quality and reliability for mission-critical, hyperscale and virtualized environments. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD PM5-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB. Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 10 DWPD (Drive Write Per Day) with capacities up to 3.2 TB.
Key Features:
- 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
- Capacities from 400GB to 3.2TB
- T10 Multi-Stream Write support
- Up to 385 K random read IOPS (4 KiB) in dual port mode
- 2.5 inch form factor, 15 mm Z-height
- 10 DWPD with 100 % Random Write Workload
- Power loss protection and end-to-end data protection, including T10 DIF Pin-3 power disable support
- Sanitize Instant Erase (SIE) option
Key Applications
- Mission critical enterprise workloads Hyperscale and virtualized environments
- Online transaction processing (OLTP)
- E-commerce
DPN: N4T33
Compatibility
This drive is compatible with EQUALLOGIC SANs and any other server or storage system that accepts 2.5in x 15mm (SFF) Non-Proprietary SAS drives.
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | KPM5XMUG400G |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 400GB |
| Sustained 128KiB Sequential Read | 2,100 MB/s |
| Sustained 128KiB Sequential Write | 1,260 MB/s |
| Sustained 4KiB Random Read | 270K IOPS |
| Sustained 4KiB Random Write | 150K IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 10 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % , 12 V ±10 % |
| Power Consumption (Operating) | 5.0W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Enviromental | |
| Temperature (Operating) | 0 to 60 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: N4T33 0N4T33
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
