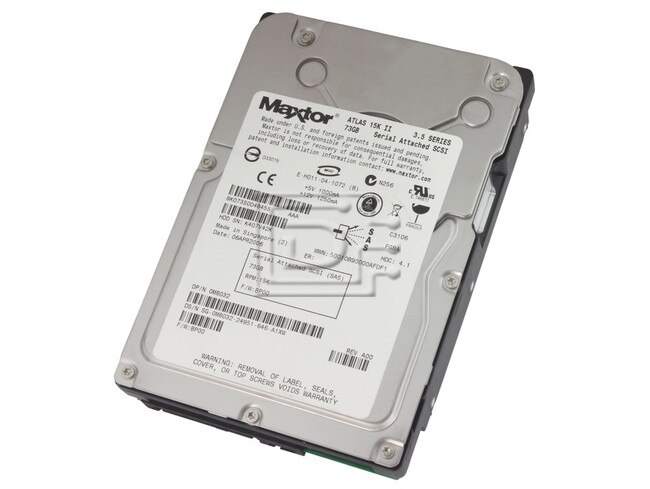

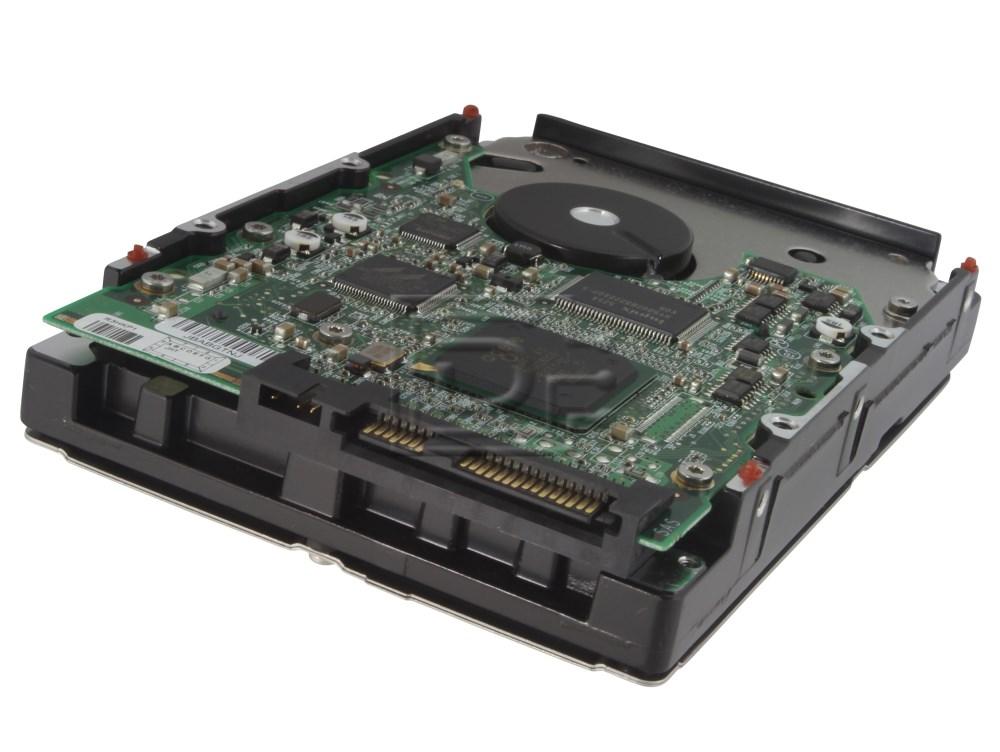

Maxtor Atlas 8K073S0 15K II 73GB SAS Hard Drive

Maxtor Part #/MPN: 8K073S0

DiscTech Item #: MAX-8K073S0-RF-OE-DEL


Enterprise Grade

Capacity: 73GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 98

Average Seek Time: 3.4 / 3.8

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 16MB

Maxtor Atlas 8K073S0 15K II 73GB 3Gbps SAS Hard Drive - Refurbished OEM

Maxtor Atlas 8K073S0 15K II 73GB 3.0 Gbps SAS Hard Drive - Refurbished OEM

Alt MPNs: M8032, 0M8032

The Atlas 15K II SAS hard drive offers an unbeatable combination of reliability, adaptability and leading-edge performance to satisfy the demands of I/O-intensive, high-bandwidth enterprise applications. It’s ideal for OLTP, SAN and NAS environments, high-performance workstations, 3-D animation, scientific data processing, economic modeling, data mining, audio/video and digital imaging.

The drive delivers seek times as fast as 3.0ms and data transfer rates up to 98MB/sec. At the same time, solid design and state-of-the-art manufacturing test processes make possible a MTTF of 1.4 million high-duty-cycle hours. Reliability is further enhanced by improved S.M.A.R.T. and self-diagnostics.


Compatible with any server that accepts 3.5"x1" (LFF) SAS hard drives.

Formatted Capacity (GB)73.5
Bytes per Sector516
Interface3Gbps Serial Attached SCSI ( SAS )
Average Read/Write (ms) 3.1/3.5
Track-to-Track Read/Write (ms)0.3/0.5
Full stroke Read/Write (ms) 8.0/9.0
Maximum Sustained Transfer Rate (MB/sec)98
Operating Temperature (°C)5 to 55
Non-Condensing Humidity (%)5 to 95
Non-Operating Temperature (°C)-40 to 70
Idle Power (W) 8.4
Width max (inches/mm)4/101.6
Length max (inches/mm)5.787/147
Height max (inches/mm)1.028/26.1
Weight max (lb/kg) 2.0/0.91

Alternate MPNs: M8032 0M8032

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
