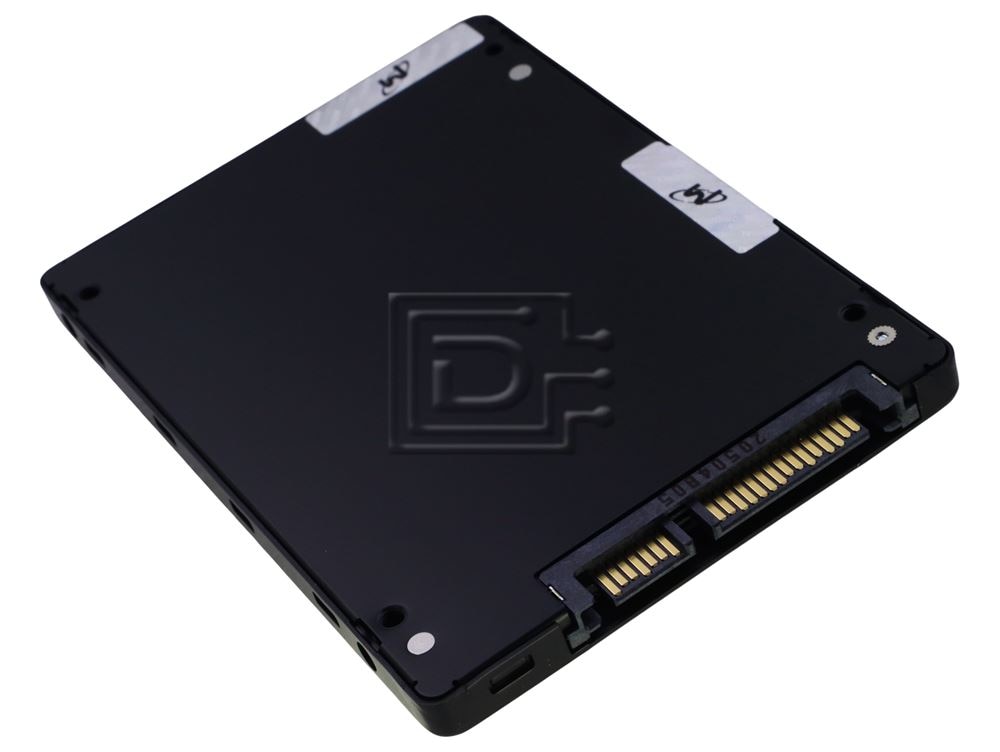

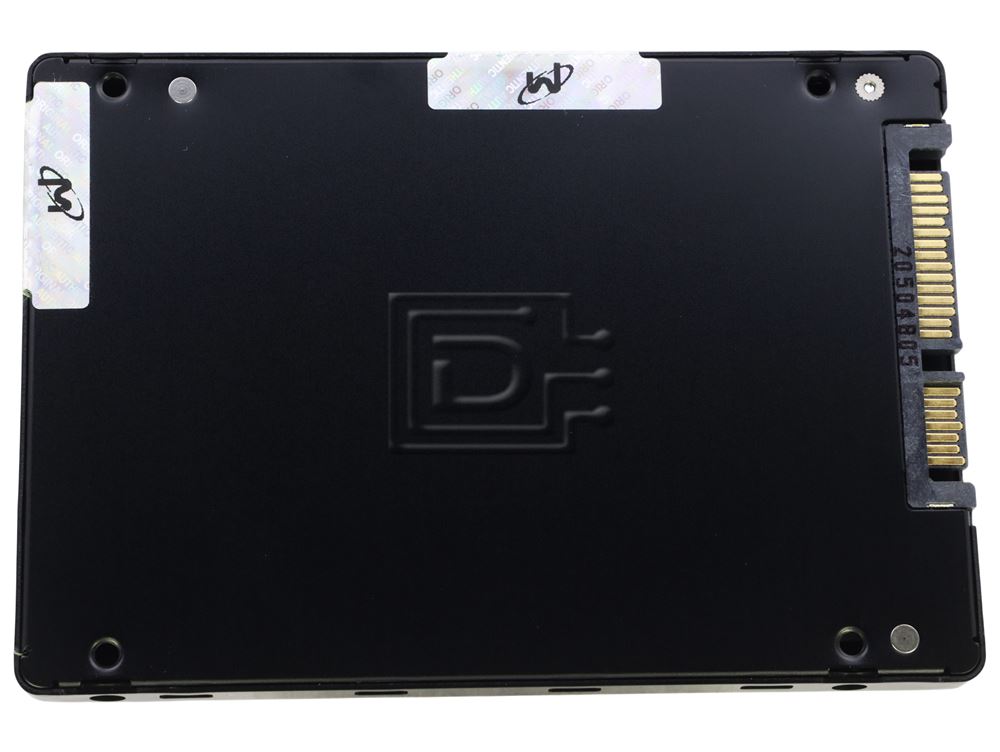

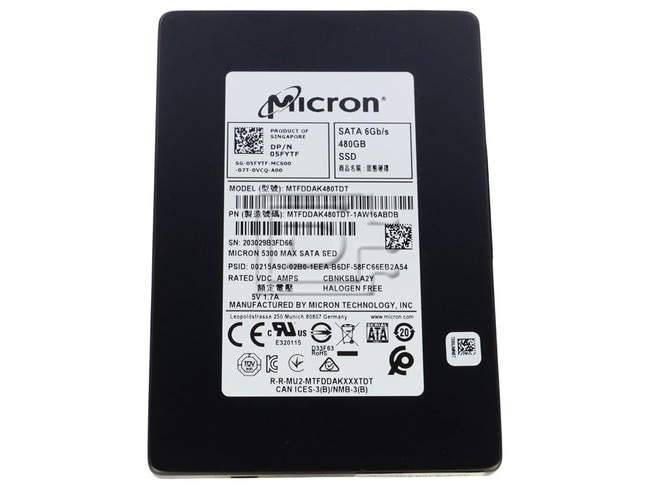

Micron 5300 MAX MTFDDAK480TDT-1AW16ABDB 480GB 2.5" 6Gbps eTLC Mixed Use SED SATA Solid State Drive
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:6Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 480GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Micron 5300 MAX MTFDDAK480TDT-1AW16ABDB 480GB 2.5" 6Gbps eTLC Mixed Use SED SATA Solid State Drive - Brand New
Micron 5300 MAX MTFDDAK480TDT-1AW16ABDB 480GB 2.5" 6Gbps eTLC Mixed Use SED SATA Solid State Drive - Brand New
The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption and extended reliability.
Micron 5300 SSD with TCG Opal encryption: These SEDs are well suited for server and storage platform boot-up. A TCG Opal drive provides pre-boot authentication (PBA) for secure server password entry before the OS boot process starts.
Features
- Micron® 3D TLC NAND Flash
- Three performance/endurance levels
- BOOT
- PRO
- MAX
- TCG Enterprise compliant self-encrypting drive (SED)
- SATA 6 Gb/s interface
- ATA modes supported
- PIO mode 3, 4
- Multiword DMA mode 0, 1, 2
- Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
- 512-byte sector size support
- Hot-plug capable
- Native command queuing support with 32-command slot support
- ATA-8 ACS-3 revision 5 command set compliant
- ATA security feature command set and password login support
- Security erase command set: fast and secure erase
- Performance (steady state)
- Sequential 128KB read: Up to 540 MB/s
- Sequential 128KB write: Up to 520 MB/s
- Random 4KB read: Up to 95,000 IOPS
- Random 4KB write: Up to 75,000 IOPS
- Quality of Service
- Read/Write (99.9%): 200µs/300µs
- Read/Write (99.999%): 1000µs/700µs
- Endurance : Total bytes written (TBW)
- Up to 24528TB
- Reliability
- MTTF: 3.0 million device hours
- Static and dynamic wear leveling
- Uncorrectable bit error rate (UBER): <1 sector per 10e17 bits read
- End-to-end data protection
- Enhanced power-loss data protection with data protection capacitor monitoring
- Self-monitoring, analysis, and reporting technology (SMART) command set
- Capacity (unformatted): 240GB, 480GB, 960GB, 1920GB, 3840GB, 7680GB
- Mechanical:
- 2.5-inch x 7.0mm form factor
- RoHS-compliant package
- Secure field-upgradeable firmware with digitally signed firmware image
- Power consumption:
- <3.9W(TYP, 5V only)
- Operating temperature
- Commercial (0°C to 70°C)
Compatibility
Designed for virtualized workloads that power your business, such as OLTP, BI/DSS, VDI, block/object, media streaming and more.
Specifications
| Micron 5300 MAX | |
|---|---|
| Model Number | MTFDDAK480TDT-1AW16ABDB |
| Technical Specification | |
| Brand | Micron |
| Manufacturer | Micron Enterprise SSD |
| Model | 5300 MAX |
| Capacity | 480GB |
| Encryption Details | Tcg-opal |
| Form Factor | 2.5in (6.4cm) |
| Sequential Read (128KB transfer) | 540 3.0W |
| Sequential Write (128KB transfer) | 520 3.9W |
| Random Read (4KB transfer) | 95,000 |
| Random Write (4KB transfer) | 34,000 |
| Random 70/30 R/W (4KB transfer) | 60,000 |
| Read latency (99.9%) | 250µs |
| Write latency (99.9%) | 200µs |
| Read latency (99.999%) | 700µs |
| Write latency (99.999%) | 500µs |
| Drive Lifetime (Total Bytes Written) | 24,528TB DWPD: 3-5 |
| Voltage Input | Symbol
|
| Operating temperature | Min: 0°C Max: 70°C |
| Non Operating temperature | Min: -40°C Max: 85°C |
| Rate of temperature change | Max: 20°C/hour |
| Relative humidity (non-condensing) | Min: 5% Max: 95% |
| Min Operating Temperature | 32°F |
| Non-operating shock | 1500G/0.5ms |
| Non-operating vibration | 5–800Hz at 3.13 Grms |
| Uncorrectable Bit Error Rate | <1 sector per 10e17 bits |
| MTTF | 3.0 million |
| Idle Average | 1.5W |
| Flash Type | 3D TLC |
| Dimensions (W x L x H) | 69.85mm x 100.45mm x 7.00mm |
ROHS Compliant
Alternate MPNs: MTFDDAK480TDT-1AW16ABYY 5FYTF 05FYTF
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
