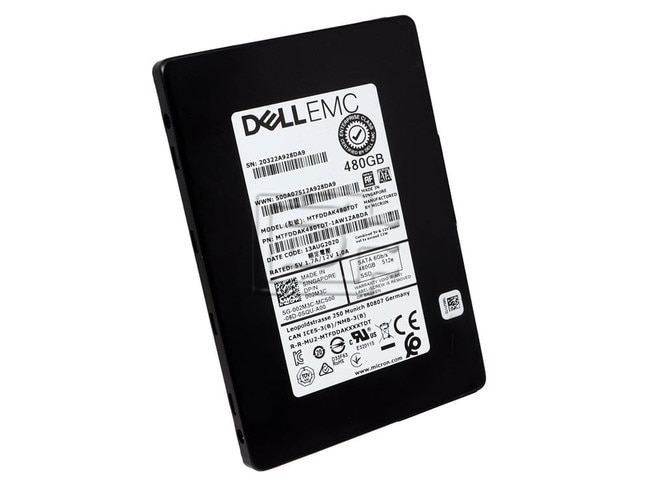

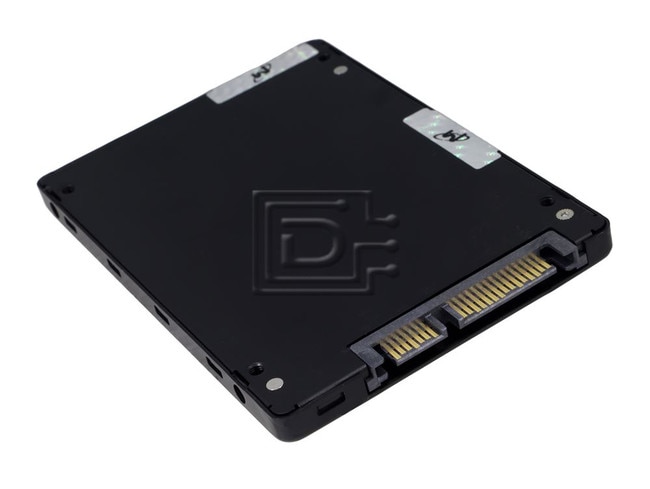

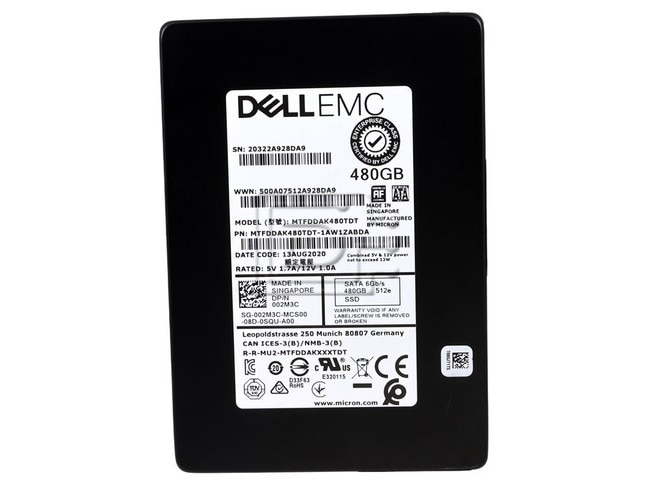

Micron 5300 MAX Micron MTFDDAK480TDT-1AW1ZABDA Dell 02M3C 480GB 2.5" 6Gbps eTLC Mixed Use SATA Solid State Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 480GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Micron 5300 MAX Micron MTFDDAK480TDT-1AW1ZABDA Dell 02M3C 480GB 2.5inch 6Gbps eTLC Mixed Use SATA Solid State Drive - Refurbished
Micron 5300 MAX Micron MTFDDAK480TDT-1AW1ZABDA Dell 02M3C 480GB 2.5" 6Gbps eTLC Mixed Use SATA Solid State Drive - Refurbished
The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption and extended reliability.
Micron 5300 SSD with TCG Opal encryption: These SEDs are well suited for server and storage platform boot-up. A TCG Opal drive provides pre-boot authentication (PBA) for secure server password entry before the OS boot process starts.
Features
- Micron® 3D TLC NAND Flash
- Three performance/endurance levels
- BOOT
- PRO
- MAX
- TCG Enterprise compliant self-encrypting drive (SED)
- SATA 6 Gb/s interface
- ATA modes supported
- PIO mode 3, 4
- Multiword DMA mode 0, 1, 2
- Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
- 512-byte sector size support
- Hot-plug capable
- Native command queuing support with 32-command slot support
- ATA-8 ACS-3 revision 5 command set compliant
- ATA security feature command set and password login support
- Security erase command set: fast and secure erase
- Performance (steady state)
- Sequential 128KB read: Up to 540 MB/s
- Sequential 128KB write: Up to 520 MB/s
- Random 4KB read: Up to 95,000 IOPS
- Random 4KB write: Up to 75,000 IOPS
- Quality of Service
- Read/Write (99.9%): 200µs/300µs
- Read/Write (99.999%): 1000µs/700µs
- Endurance : Total bytes written (TBW)
- Up to 24528TB
- Reliability
- MTTF: 3.0 million device hours
- Static and dynamic wear leveling
- Uncorrectable bit error rate (UBER): <1 sector per 10e17 bits read
- End-to-end data protection
- Enhanced power-loss data protection with data protection capacitor monitoring
- Self-monitoring, analysis, and reporting technology (SMART) command set
- Capacity (unformatted): 240GB, 480GB, 960GB, 1920GB, 3840GB, 7680GB
- Mechanical:
- 2.5-inch x 7.0mm form factor
- RoHS-compliant package
- Secure field-upgradeable firmware with digitally signed firmware image
- Power consumption:
- <3.9W(TYP, 5V only)
- Operating temperature
- Commercial (0°C to 70°C)
Compatibility
Designed for virtualized workloads that power your business, such as OLTP, BI/DSS, VDI, block/object, media streaming and more.
Specifications
| Micron 5300 MAX | |
|---|---|
| Model Number | MTFDDAK480TDT-1AW1ZABDA |
| Technical Specification | |
| Brand | Micron |
| Manufacturer | Micron Enterprise SSD |
| Model | 5300 MAX |
| Capacity | 480GB |
| Encryption Details | Tcg-opal |
| Form Factor | 2.5in (6.4cm) |
| Sequential Read (128KB transfer) | 540 3.0W |
| Sequential Write (128KB transfer) | 520 3.9W |
| Random Read (4KB transfer) | 95,000 |
| Random Write (4KB transfer) | 34,000 |
| Random 70/30 R/W (4KB transfer) | 60,000 |
| Read latency (99.9%) | 250µs |
| Write latency (99.9%) | 200µs |
| Read latency (99.999%) | 700µs |
| Write latency (99.999%) | 500µs |
| Drive Lifetime (Total Bytes Written) | 24,528TB DWPD: 3-5 |
| Voltage Input | Symbol
|
| Operating temperature | Min: 0°C Max: 70°C |
| Non Operating temperature | Min: -40°C Max: 85°C |
| Rate of temperature change | Max: 20°C/hour |
| Relative humidity (non-condensing) | Min: 5% Max: 95% |
| Min Operating Temperature | 32°F |
| Non-operating shock | 1500G/0.5ms |
| Non-operating vibration | 5–800Hz at 3.13 Grms |
| Uncorrectable Bit Error Rate | <1 sector per 10e17 bits |
| MTTF | 3.0 million |
| Idle Average | 1.5W |
| Flash Type | 3D TLC |
| Dimensions (W x L x H) | 69.85mm x 100.45mm x 7.00mm |
ROHS Compliant
Alternate MPNs: 02M3C 002M3C
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
