Micron Part #/MPN: MTFDDAK960MAV-1AE12ABYY
DiscTech Item #: MIC-MTFDDAK960MAV-1AE12ABYY-NP-OE-DEG
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 960GB
Speed: Solid State
Interface Types: SATA
Form Factor: 2.5" x 7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Average Seek Time: 5ms / 25ms (MAX)
Electrical Interface: SATA 600 - 6Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

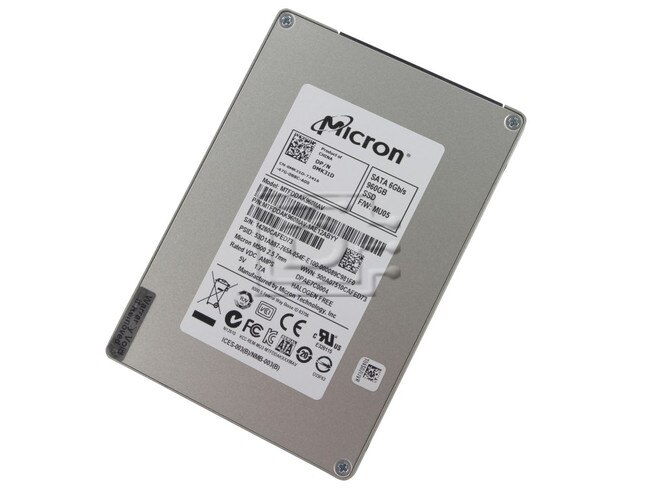

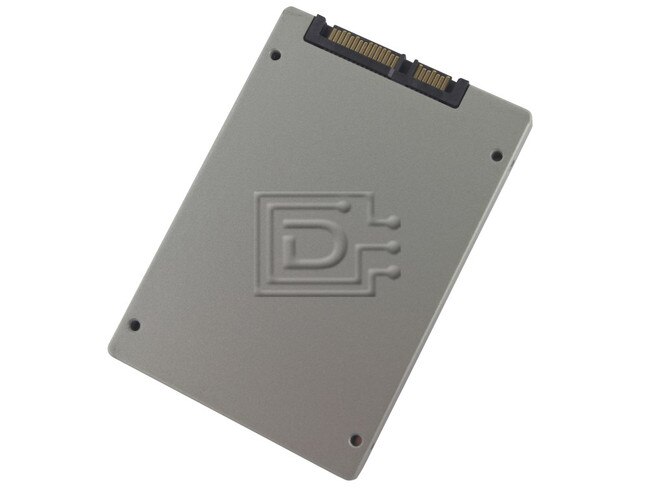

Micron M500 MTFDDAK960MAV-1AE12ABYY / MK31D 1TB (960GB) 6Gbps 2.5in Mixed-Use MLC SED SATA SSD - New Pull
Micron M500 MTFDDAK960MAV-1AE12ABYY 1TB (960GB) 6.0Gbps 2.5in x 7mm Multi Level Cell SED SATA SSD - New Pull
Alt DPNs: MK31D, 0MK31D
Micron’s solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and 8-channels of Micron NAND Flash internally. Packaged in an HDD replacement enclosure, the SSD integrates easily in existing storage infrastructures.
The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.
The self-encypting drive (SED) features a FIPS-compliant, AES-256 encryption engine, providing hardware-based, secure data encryption, with no loss of SSD performance. This SED follows the TCG/Opal specification for trusted peripherals.
Compatibility:
This drive is compatible with Servers, PC's and Laptops that accept 2.5"x7mm SATA drives.
| Micron M500 SSD | |
|---|---|
| Model | MTFDDAK960MAV |
| Interface | 6Gb/s SATA |
| Capacity | 1TB / 960GB |
| Features | |
| Flash | MLC NAND Flash |
| Encryption | TCG/Opal 2.0-Complient Self-Encrypting drive |
| Sector Size | 512 |
| Sequential 128KB Read | Up to 500MB/s |
| Sequential 128KB Write | Up to 400MB/s |
| Random 4KB Read | Up to 80,000 IOPS |
| Random 4KB Write | Up to 80,000 IOPS |
| Read/Write Latency | 5ms / 25ms (MAX) |
| Power Consumption | 150MW (Typical) |
| Form Factor | 2.5" x7mm |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1,200,000 |
| Total bytes written (TBW) | up to 500TB |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Operating Temperature | 0°C - 70°C |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MK31D 0MK31D
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
